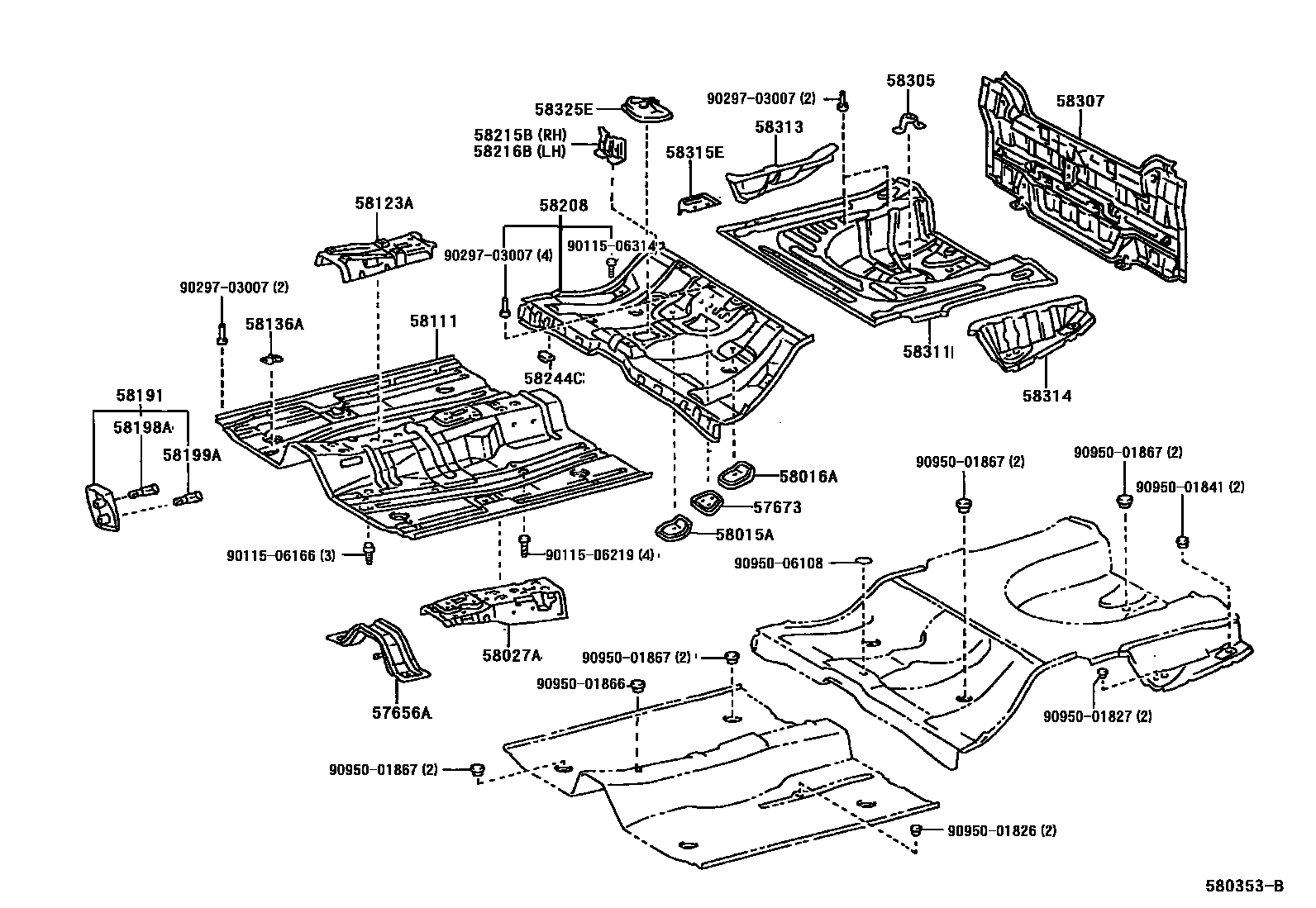

FLOOR PAN & LOWER BACK PANEL

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-12060iAE11#199505-199705

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12080iAE11#199505-200008

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12050iAE11#199505-200008

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12020iAE11#199505-200008

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12121iAE11#199505-200008

58111PAN, FRONT FLOOR

main58111-12261iAE11#199505-199508

sub58111-12262

main58111-12262iAE11#199508-200008

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12060iAE11#199505-200008

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iAE11#199505-200008

58191FOOTREST, FRONT FLOOR

main58191-12110iAE11#199505-200008

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE11#199505-200008

58199ACLIP, FOOTREST, NO.2

main58199-12020iAE11#199505-200008

58208PAN, CENTER FLOOR

main58211-12904iAE11#199505-200008

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-12041iAE11#199505-200008

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iAE11#199505-200008

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030iAE11#199505-200008

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12040iAE11#199505-200008

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A400iAE11#199505-200008

58311PAN, REAR FLOOR

main58311-12210iAE11#199505-200008

58313PANEL, REAR FLOOR SIDE, RH

main58313-12905iAE11#199505-200008

58314PANEL, REAR FLOOR SIDE, LH

main58314-12280iAE11#199505-200008

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE11#199704-200008

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12091iAE11#199505-200008

9011506166

main90115-06166

9011506219

main90115-06219

9011506314

main90115-06314

9029703007

main90297-03007

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006108

main90950-06108

32 parts on this diagram · 1 diagram in section
