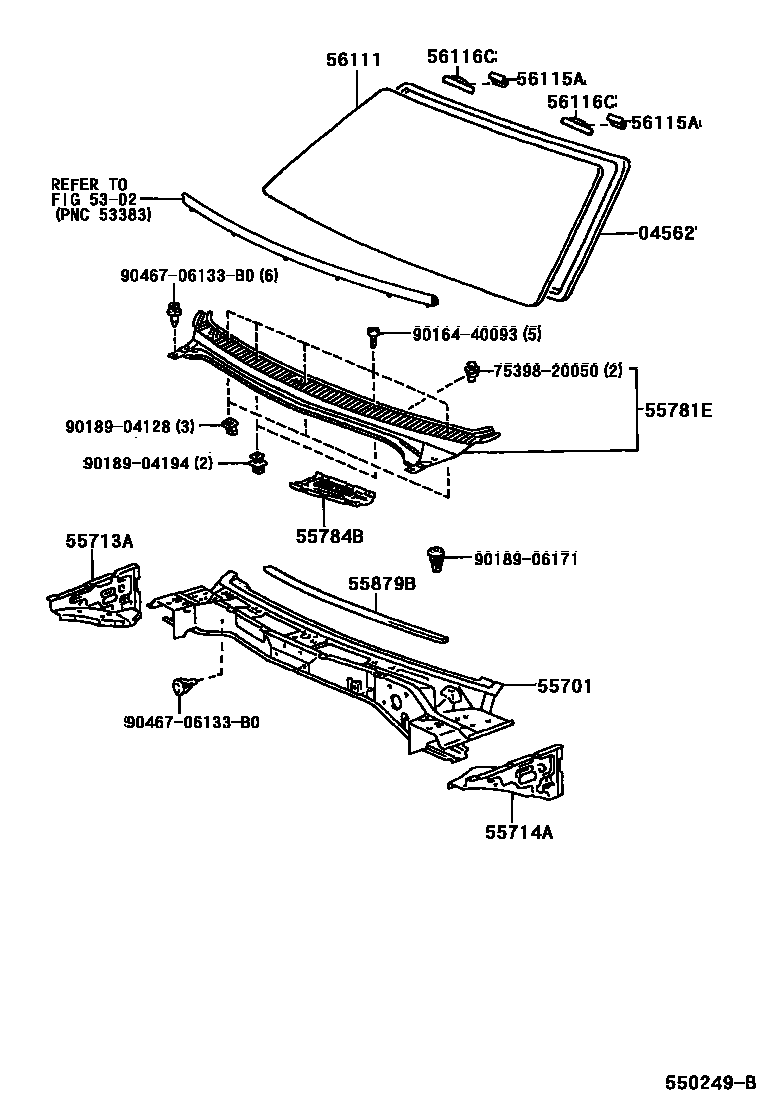

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE11#199505-200008

5302

55701PANEL SUB-ASSY, COWL

main55700-1A130iAE111..XZ199505-199704

main55700-1A140iAE111..BZG,BZR,BZV199505-200008

main55700-1A190iAE11#..FZ,XZ199505-200008

55713APANEL, COWL TOP SIDE, RH

main55713-12081iAE11#199505-200008

55714APANEL, COWL TOP SIDE, LH

main55714-12081iAE11#199505-200008

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-12180iAE11#199505-200008

sub55708-12190

main55708-12190iAE11#..4FC,5F199704-200008

main55708-12190iAE11#199505-200008

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12110iAE11#199505-200008

55879BSEAL, COWL VENT

main55879-12090iAE11#199505-200008

56111GLASS, WINDSHIELD

main56111-1A730iAE11#199505-200008

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12040iAE11#199505-199705

main56115-12050iAE11#199705-200008

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAE11#199705-200008

7539820050CLIP, OUTSIDE MOULDING, NO.5

main75398-20050

9016440093

main90164-40093

9018904128

main90189-04128

9018904194

main90189-04194

9018906171

main90189-06171

9046706133B0

main90467-06133B0

17 parts on this diagram · 1 diagram in section
