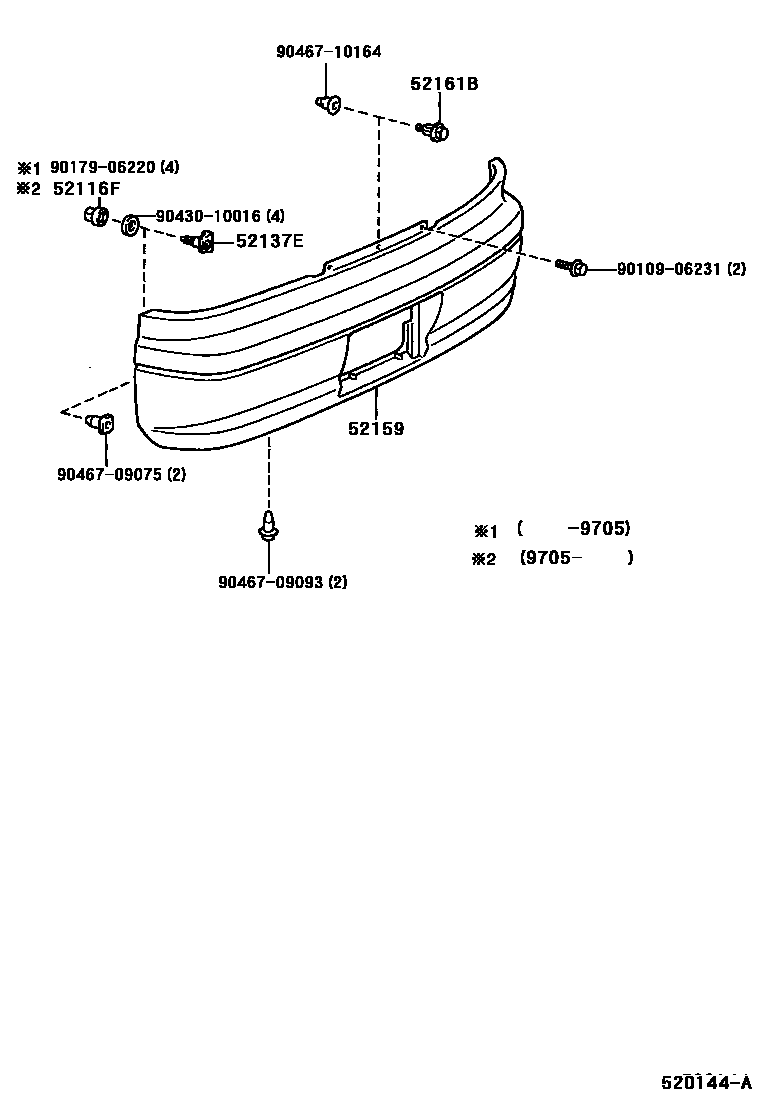

REAR BUMPER & BUMPER STAY

52116FRETAINER, REAR BUMPER

main52116-12310iAE11#199704-200008

52137EPLATE, REAR BUMPER BRACKET, NO.1

main52137-12090iAE11#199505-199704

main52137-12100iAE11#199704-200008

52159COVER, REAR BUMPER

main52159-1A670-A1iAE11#199505-200008

SUPER WHITE 2,040

sub52159-1A930

main52159-1A670-B1iAE11#199505-199605

LT.GRAY PEARL ME.,1A7

sub52159-1A930

main52159-1A670-B2iAE11#199605-200008

SILVER ME,199

sub52159-1A930

main52159-1A670-C1iAE11#199505-200008

BLACK ME,205

sub52159-1A930

main52159-1A670-D1iAE11#199505-199804

RED MM,3K4

sub52159-1A930

main52159-1A670-D2iAE11#199804-200008

SUPER RED II,3E5

sub52159-1A930

main52159-1A670-G1iAE11#199505-199605

MD.GREEN M.M.,6P0

sub52159-1A930

main52159-1A670-G2iAE11#..FZ,XZ199612-199704

sub52159-1A930

main52159-1A670-G3iAE11#199704-200008

GREEN M.M.,6P5

sub52159-1A930

main52159-1A670-H0iAE11#199605-199610

TURQUOISE M.M.,756

sub52159-1A930

main52159-1A670-J1iAE11#199505-199704

DK.BLUE MC.,8K8

sub52159-1A930

main52159-1A670-J2iAE110199512-199604

sub52159-1A930

main52159-1A670-J3iAE11#199704-200008

STRONG BLUE M,8B6

sub52159-1A930

52161BPIECE, REAR BUMPER

main52161-12030iAE11#199505-200008

9010906231

main90109-06231

9017906220

main90179-06220

9043010016

main90430-10016

9046709075

main90467-09075

9046709093

main90467-09093

9046710164

main90467-10164

10 parts on this diagram · 1 diagram in section
