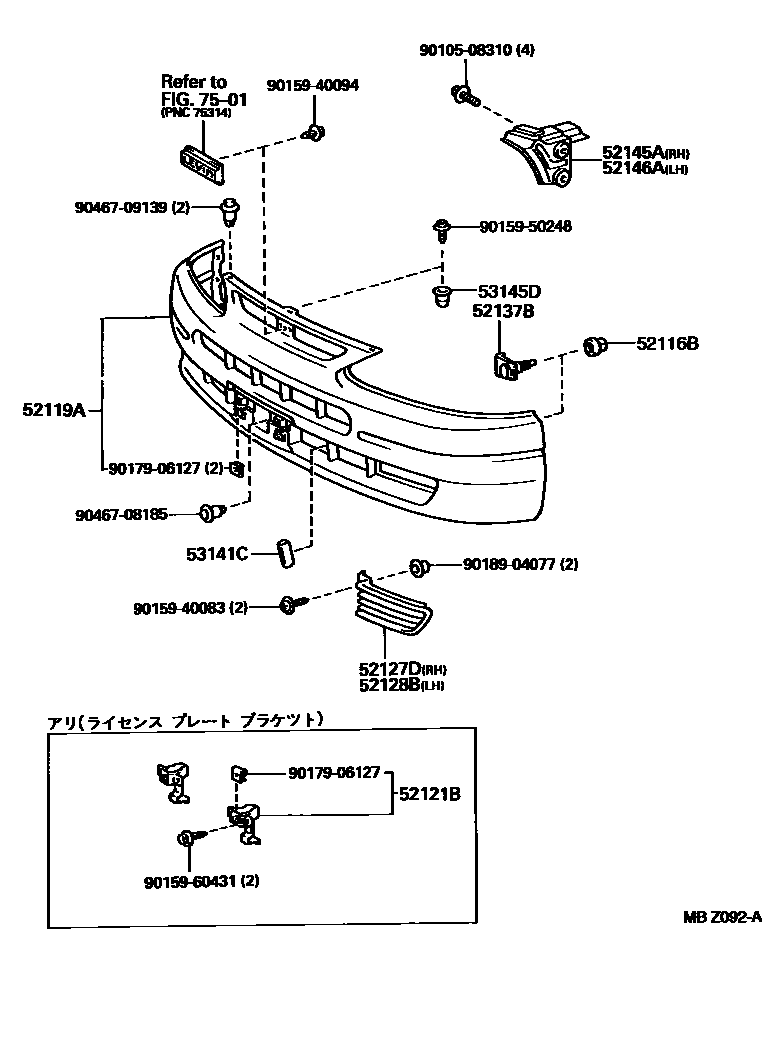

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52116BRETAINER, FRONT BUMPER

main52116-12310iAE11#199505-200008

52119ACOVER, FRONT BUMPER

main52110-1E820-A0iAE11#..LVN199505-199704

SUPER WHITE 2,040

sub52110-12903

main52110-1E820-B0iAE11#..LVN199505-199605

LT.GRAY PEARL ME.,1A7

sub52110-12903

main52110-1E820-B1iAE11#..LVN199605-199704

SILVER ME,199

sub52110-12903

main52110-1E820-C0iAE11#..LVN199505-199704

BLACK ME,205

sub52110-12903

main52110-1E820-D0iAE11#..LVN199505-199704

RED MM,3K4

sub52110-12903

main52110-1E820-G0iAE11#..LVN199505-199605

MD.GREEN M.M.,6P0

sub52110-12903

main52110-1E820-G1iAE11#..LVN..(FZ,XZ)199612-199704

sub52110-12903

main52110-1E820-H0iAE11#..LVN199605-199610

TURQUOISE M.M.,756

sub52110-12903

main52110-1E820-J0iAE11#..LVN199505-199704

DK.BLUE MC.,8K8

sub52110-12903

main52110-1E820-J1iAE110..LVN199512-199604

sub52110-12903

main52110-1E830-A0iAE11#..TRN199505-199704

SUPER WHITE 2,040

sub52110-12904

main52110-1E830-B0iAE11#..TRN199505-199605

LT.GRAY PEARL ME.,1A7

sub52110-12904

main52110-1E830-B1iAE11#..TRN199605-199704

SILVER ME,199

sub52110-12904

main52110-1E830-C0iAE11#..TRN199505-199704

BLACK ME,205

sub52110-12904

main52110-1E830-D0iAE11#..TRN199505-199704

RED MM,3K4

sub52110-12904

main52110-1E830-G0iAE11#..TRN199505-199605

MD.GREEN M.M.,6P0

sub52110-12904

main52110-1E830-G1iAE11#..TRN..(FZ,XZ)199612-199704

sub52110-12904

main52110-1E830-H0iAE11#..TRN199605-199610

TURQUOISE M.M.,756

sub52110-12904

main52110-1E830-J0iAE11#..TRN199505-199704

DK.BLUE MC.,8K8

sub52110-12904

main52110-1E830-J1iAE110..TRN199512-199604

sub52110-12904

main52110-1H130-A0iAE11#..TRN199704-200008

SUPER WHITE 2,040

sub52110-1H902

main52110-1H130-B0iAE11#..TRN199704-200008

SILVER ME,199

sub52110-1H902

main52110-1H130-C0iAE11#..TRN199704-200008

BLACK ME,205

sub52110-1H902

main52110-1H130-D0iAE11#..TRN199704-199804

RED MM,3K4

sub52110-1H902

main52110-1H130-D1iAE11#..TRN199804-200008

SUPER RED II,3E5

sub52110-1H902

main52110-1H130-G0iAE11#..TRN199704-200008

GREEN M.M.,6P5

sub52110-1H902

main52110-1H130-J0iAE11#..TRN199704-200008

STRONG BLUE M.,8B6

sub52110-1H902

main52119-1E540-A0iAE11#..LVN199704-200008

SUPER WHITE 2,040

sub52119-1E930

main52119-1E540-B0iAE11#..LVN199704-200008

SILVER ME,199

sub52119-1E930

main52119-1E540-C0iAE11#..LVN199704-200008

BLACK ME,205

sub52119-1E930

main52119-1E540-D0iAE11#..LVN199704-199804

RED MM,3K4

sub52119-1E930

main52119-1E540-D1iAE11#..LVN199804-200008

SUPER RED II,3E5

sub52119-1E930

main52119-1E540-G0iAE11#..LVN199704-200008

GREEN M.M.,6P5

sub52119-1E930

main52119-1E540-J0iAE11#..LVN199704-200008

STRONG BLUE M,8B6

sub52119-1E930

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-20130iAE11#..LVN199505-199705

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-12130iAE11#..LVN..(BZV,FZ,XZ)199505-199704

main52127-12140iAE11#..TRN..(BZV,FZ,XZ)199505-199704

main52127-12160-A0iAE11#..BZR,BZV,FZ,XZ199704-200008

SUPER WHITE 2,040

main52127-12160-B0iAE11#..BZR,BZV,FZ,XZ199704-200008

SILVER ME,199

main52127-12160-C0iAE11#..BZR,BZV,FZ,XZ199704-200008

BLACK ME,205

main52127-12160-D0iAE11#..BZR,BZV,FZ,XZ199704-199804

RED MM,3K4

main52127-12160-D1iAE11#..BZR,BZV,FZ,XZ199804-200008

SUPER RED II,3E5

main52127-12160-G0iAE11#..BZR,BZV,FZ,XZ199704-200008

GREEN M.M.,6P5

main52127-12160-J0iAE11#..BZR,BZV,FZ,XZ199705-200008

STRONG BLUE M,8B6

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-12030iAE11#..LVN..(BZV,FZ,XZ)199505-199704

main52128-12050iAE11#..TRN..(BZV,FZ,XZ)199505-199704

main52128-12060-A0iAE11#..BZR,BZV,FZ,XZ199704-200008

SUPER WHITE 2,040

main52128-12060-B0iAE11#..BZR,BZV,FZ,XZ199704-200008

SILVER ME,199

main52128-12060-C0iAE11#..BZR,BZV,FZ,XZ199704-200008

BLACK ME,205

main52128-12060-D0iAE11#..BZR,BZV,FZ,XZ199704-199804

RED MM,3K4

main52128-12060-D1iAE11#..BZR,BZV,FZ,XZ199804-200008

SUPER RED II,3E5

main52128-12060-G0iAE11#..BZR,BZV,FZ,XZ199704-200008

GREEN M.M.,6P5

main52128-12060-J0iAE11#..BZR,BZV,FZ,XZ199704-200008

STRONG BLUE M,8B6

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52137-12090iAE11#199505-199704

main52137-12100iAE11#199704-200008

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-12160iAE11#199505-199704

sub52145-12170

main52145-12170iAE11#199704-200008

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-12140iAE11#199505-199704

sub52146-12150

main52146-12150iAE11#199704-200008

53141CGARNISH, RADIATOR GRILLE

main53141-12050iAE11#..LVN199505-199704

main53141-12060iAE11#..TRN199505-199704

main53141-12110iAE11#..LVN199704-200008

53145DCLIP, RADIATOR GRILLE

main53145-16010iAE11#199505-200008

7501

9010508310

main90105-08310

9015940083

main90159-40083

9015940094

main90159-40094

9015950248

main90159-50248

9015960431

main90159-60431

9017906127

main90179-06127

9018904077

main90189-04077

9046708185

main90467-08185

9046709139

main90467-09139

20 parts on this diagram · 4 diagrams in section
