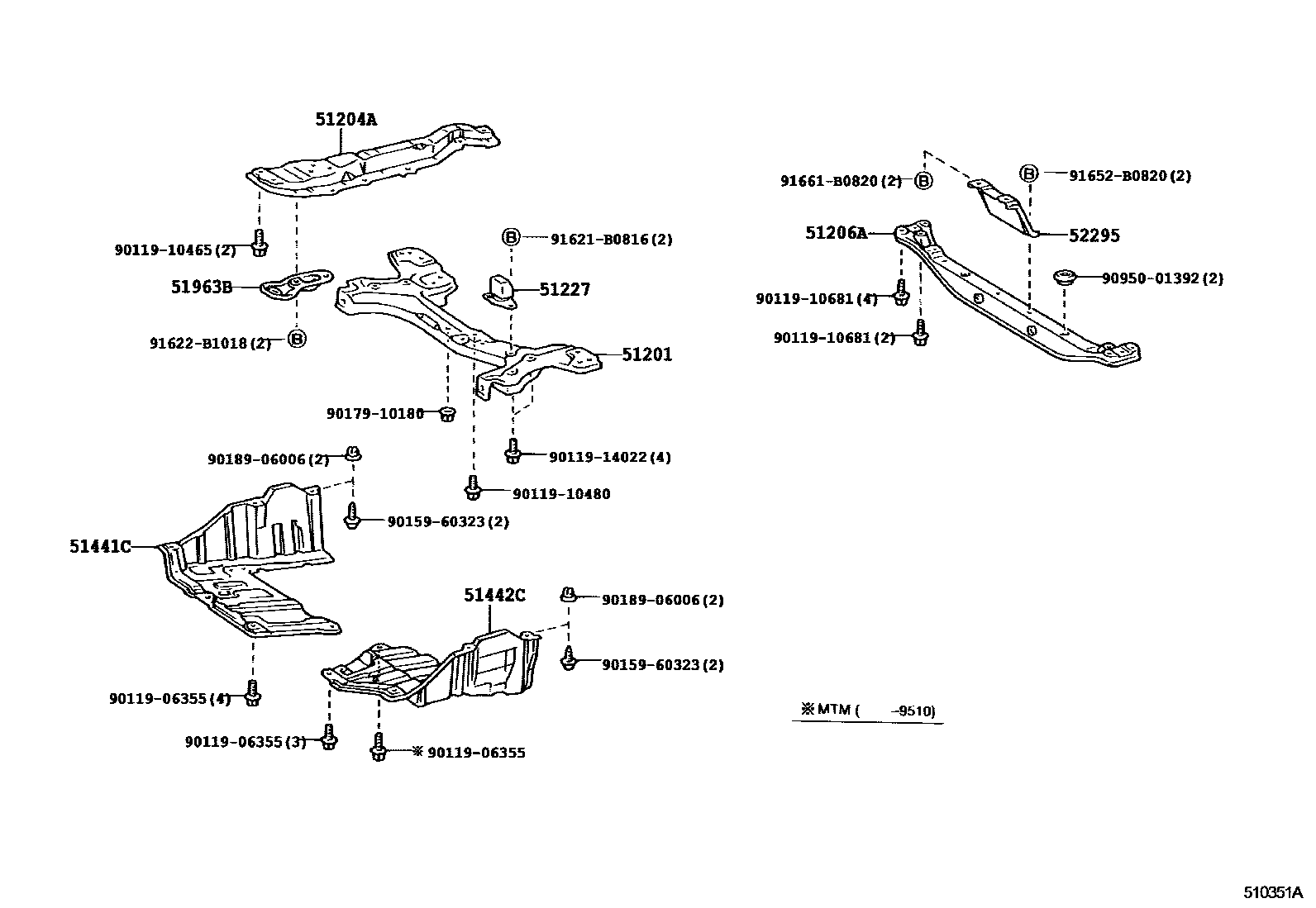

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12380iAE11#..BZG,FZ,XZ199505-200008

main51201-12400iAE111..BZG199505-199705

main51201-12400iAE111..BZR,BZV199704-200008

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE11#199505-199905

sub51204-12081

main51204-12081iAE11#199905-200001

sub51204-12082

main51204-12082iAE11#200001-200008

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE111..BZR,BZV199505-200008

main51206-12040iAE11#..FZ,XZ;AE111..BZG..6F199704-200008

PLANT NO. M11,M12

main51206-12060iAE11#..BZG,FZ,XZ199505-200008

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE111..(BZG,BZV)..5F199505-200008

51441CCOVER, ENGINE UNDER, RH

main51410-12010iAE111..BZG,BZR,BZV199804-200008

main51441-12150iAE11#..FZ,XZ199505-200008

51442CCOVER, ENGINE UNDER, LH

main51442-12100iAE11#..5F199505-200008

main51442-12110iAE11#..4FC199505-200008

51963BHOOK, TRANSPORT, FRONT RH

main51963-12210iAE11#199505-200008

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE11#..BZG,FZ,XZ199505-200008

main52295-12020iAE111..BZR,BZV199704-200008

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91652B0820

main91652-B0820

91661B0820

main91661-B0820

21 parts on this diagram · 1 diagram in section
