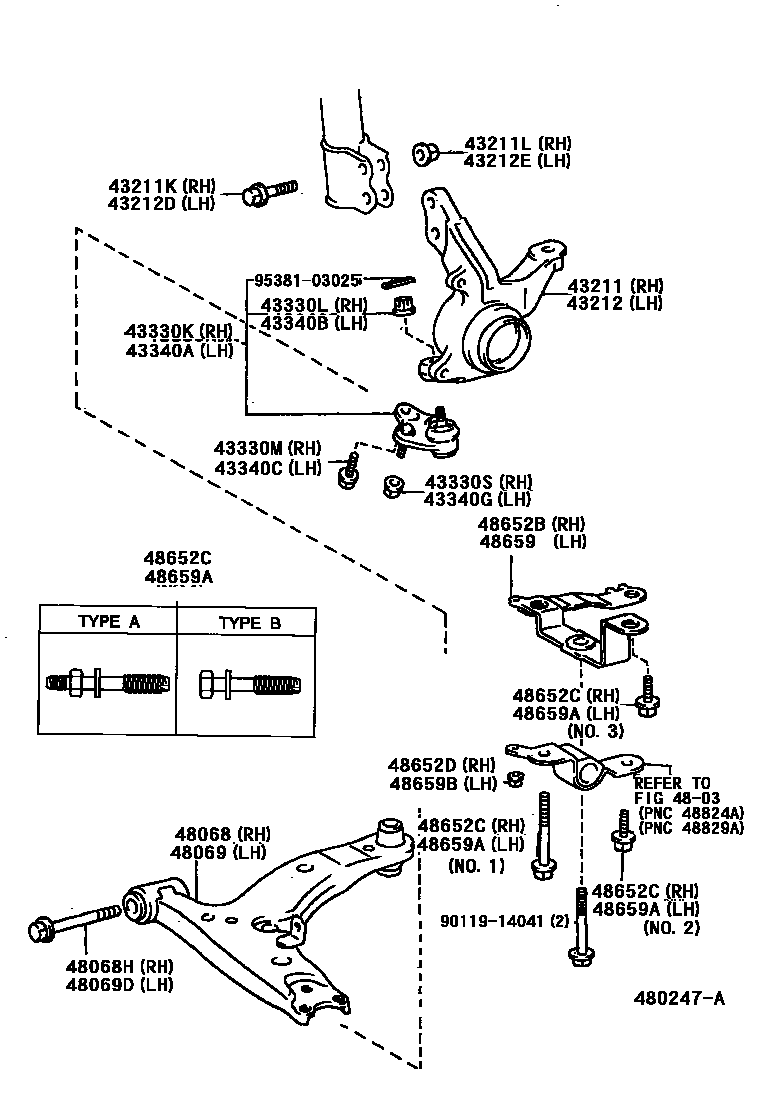

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1��(�-��- ����� ��������)

43211KNUCKLE, STEERING, RH

main43211-12290iAE11#..BZG,FZ,XZ199505-199605

main43211-12300iAE11#..BZG,FZ,XZ199505-199605

main43211-12300iAE11#..BZG,FZ,XZ199605-200008

main43211-12350iAE111..BZV199505-199705

main43211-12350iAE111..BZR,BZV199704-200008

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAE11#..BZG,FZ,XZ199505-200008

main90105-15004iAE11#..BZG,FZ,XZ199505-200008

main90105-15005iAE11#..BZG,FZ,XZ199505-200008

main90105-15006iAE11#..BZG,FZ,XZ199505-200008

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAE11#..BZG,FZ,XZ199505-200008

43212KNUCKLE, STEERING, LH

main43212-12250iAE11#..BZG,FZ,XZ199505-199605

main43212-12260iAE11#..BZG,FZ,XZ199505-199605

main43212-12260iAE11#..BZG,FZ,XZ199605-200008

main43212-12310iAE111..BZV199505-199705

main43212-12310iAE111..BZR,BZV199704-200008

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAE11#..BZG,FZ,XZ199505-200008

main90105-15004iAE11#..BZG,FZ,XZ199505-200008

main90105-15005iAE11#..BZG,FZ,XZ199505-200008

main90105-15006iAE11#..BZG,FZ,XZ199505-200008

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAE11#..BZG,FZ,XZ199505-200008

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iAE11#..BZG,FZ,XZ199505-200008

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE11#..BZG,FZ,XZ199505-200008

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE11#..BZG,FZ,XZ199505-200008

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iAE11#..BZG,FZ,XZ199505-200008

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iAE11#..BZG,FZ,XZ199505-200008

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE11#..BZG,FZ,XZ199505-200008

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE11#..BZG,FZ,XZ199505-200008

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iAE11#..BZG,FZ,XZ199505-200008

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12160iAE110199505-200008

main48068-12170iAE111..XZ199505-199610

sub48068-12171

main48068-12171iAE111..XZ199610-200008

main48068-12180iAE111..BZG199505-199610

sub48068-12181

main48068-12181iAE111..BZG199610-200008

main48605-19015iAE111..BZR,BZV199704-200008

main48605-19015iAE111..BZV199505-199705

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE111..BZV199505-200008

main90119-14023iAE111..BZV199505-199704

main90119-14041iAE111..BZV199505-200008

main90119-14041iAE111..BZV199505-199705

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12160iAE110199505-200008

main48069-12170iAE111..XZ199505-199610

sub48069-12171

main48069-12171iAE111..XZ199610-200008

main48069-12180iAE111..BZG199505-199610

sub48069-12181

main48069-12181iAE111..BZG199610-200008

main48606-19015iAE111..BZR,BZV199704-200008

main48606-19015iAE111..BZG199505-199705

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAE11#..BZG,FZ,XZ199505-199704

main90119-14023iAE11#..BZG,FZ,XZ199505-200008

main90119-14041iAE111..BZV199505-200008

main90119-14041iAE111..BZV199505-199705

48652BBRACKET, FRONT LOWER ARM, RH

main48652-12030iAE111..BZG199505-199705

main48652-12030iAE111..BZR,BZV199704-200008

main48652-12060iAE110199505-199704

main48652-12070iAE111..BZG,XZ199505-200008

main48652-12100iAE110199704-200008

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90109-10168iAE11#..BZG,FZ,XZ199704-200008

main90119-10692iAE11#199505-200008

main90119-12125iAE11#199505-200008

main90119-12238iAE111..6F199505-200008

main90119-12238iAE11#..4FC,5F199704-200008

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08145iAE11#..BZG,FZ,XZ199505-199705

sub90179-08123

main90179-08145iAE11#..BZG,FZ,XZ199704-200008

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48659-12030iAE111..BZG199505-199705

main48659-12030iAE111..BZR,BZV199704-200008

main48659-12060iAE110199505-199704

main48659-12070iAE111..BZG,XZ199505-200008

main48659-12100iAE110199704-200008

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90109-10168iAE11#..BZG,FZ,XZ199704-200008

main90119-10692iAE11#199505-200008

main90119-12125iAE11#199505-200008

main90119-12238iAE111..6F199505-200008

main90119-12238iAE11#..4FC,5F199704-200008

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08145iAE11#..BZG,FZ,XZ199505-199705

sub90179-08123

main90179-08145iAE11#..BZG,FZ,XZ199704-200008

sub90179-08123

9011914041

main90119-14041

9538103025

main95381-03025

27 parts on this diagram · 3 diagrams in section
