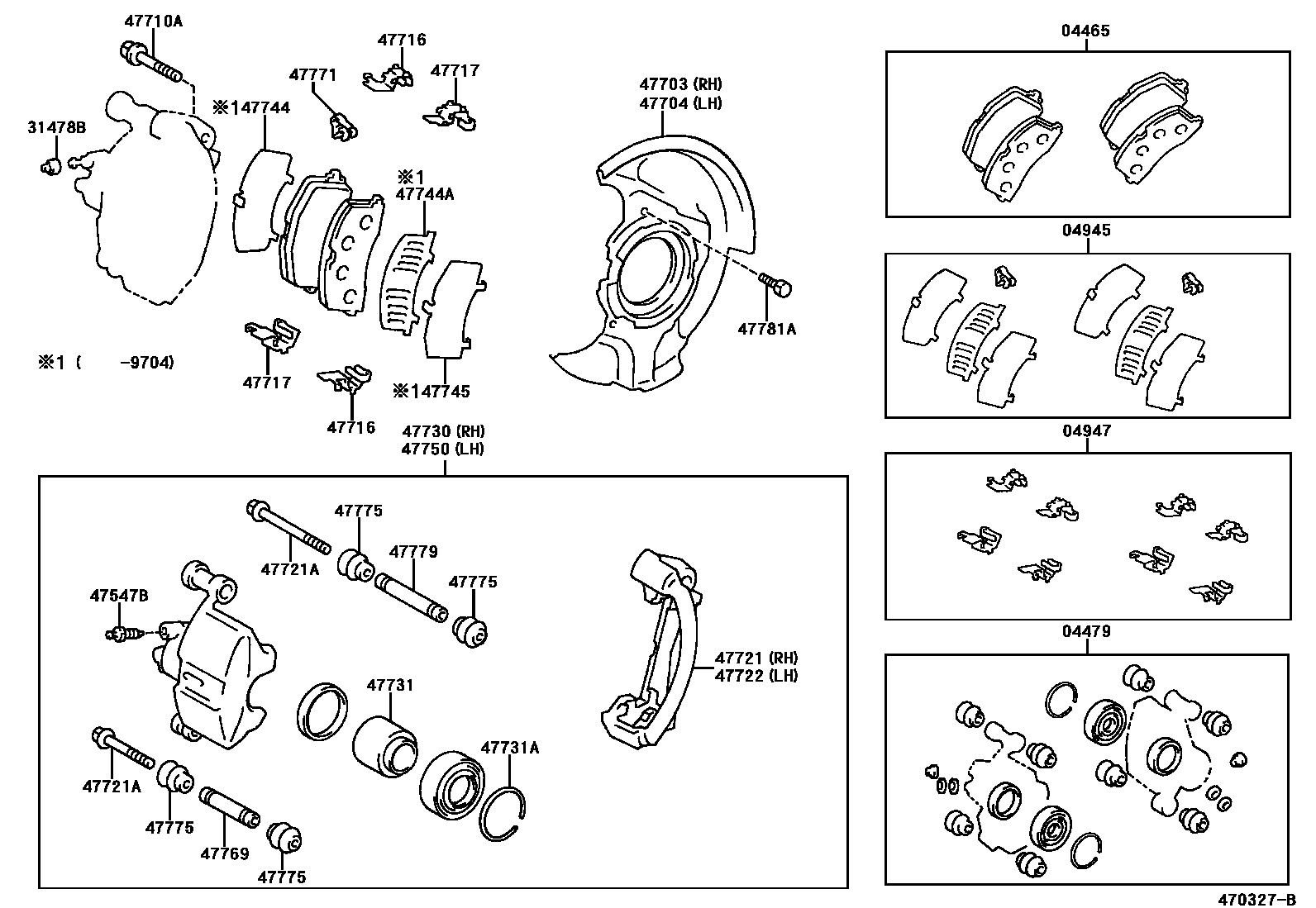

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
26 parts on this diagram · 3 diagrams in section
