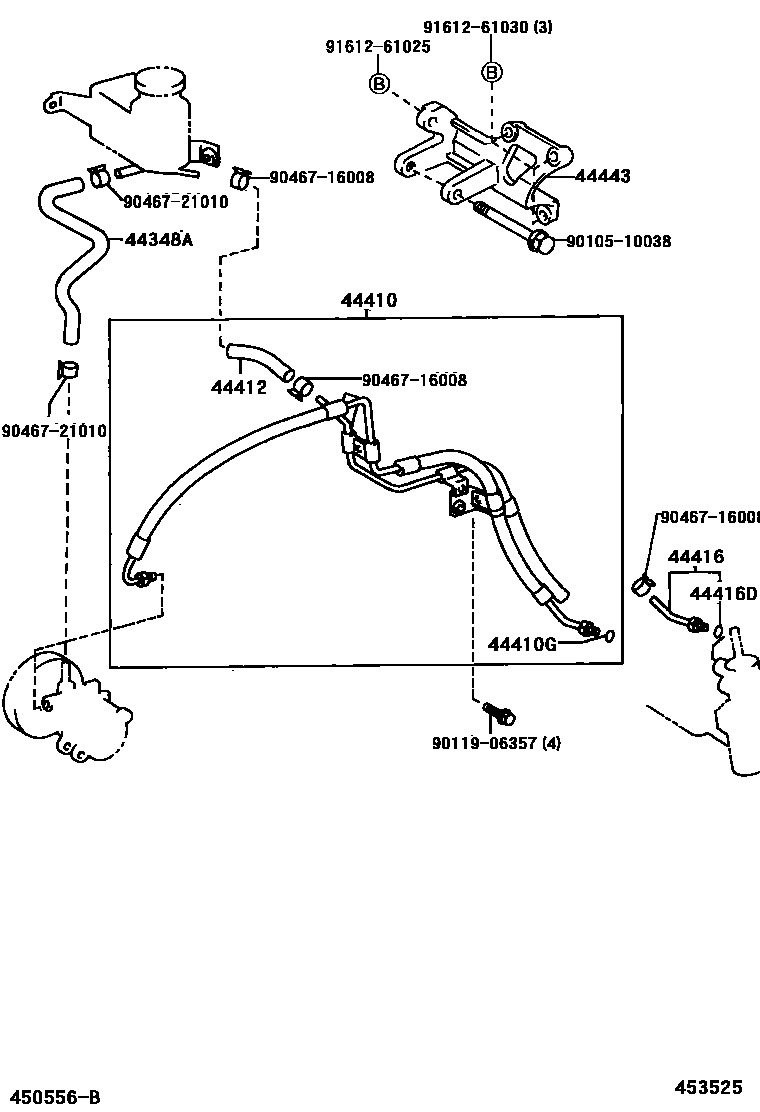

POWER STEERING TUBE

0001 1TOYOTA 0002 1TOYOTA 0003 1KOYO

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12060iAE111..BZG,BZV199505-200008

44410TUBE ASSY, PRESSURE FEED

main44040-12141iAE111..BZG,BZV199505-199604

main44040-12150iAE111..BZG,BZV199604-200008

main44410-12371iAE110199505-200008

KOYO GEAR ASSY

main44410-12391iAE110199505-200008

TOYOTA GEAR ASSY

main44410-12451iAE111..XZ199505-200008

KOYO GEAR ASSY

main44410-12481iAE111..XZ199505-199812

TOYOTA GEAR ASSY

sub44410-12500

main44410-12500iAE111..XZ199812-200008

TOYOTA GEAR ASSY

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iAE11#199505-200008

44412HOSE, RETURN

main44412-12200iAE111..BZG,BZV199505-200008

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12171iAE11#..FZ,XZ199505-200008

KOYO GEAR ASSY

main44406-12181iAE11#..FZ,XZ199505-200008

TOYOTA GEAR ASSY

main44416-12220iAE111..BZG,BZR,BZV199505-200008

44416DRING, O(FOR RETURN TUBE)

main90301-07009iAE11#199505-200008

44443BRACKET, PUMP

main44443-12090iAE111..BZG,BZV199505-200008

main44443-12100iAE11#..FZ,XZ199505-200008

9010510038

main90105-10038

9011906357

main90119-06357

9046716008

main90467-16008

9046721010

main90467-21010

9161261025

main91612-61025

9161261030

main91612-61030

13 parts on this diagram · 3 diagrams in section
