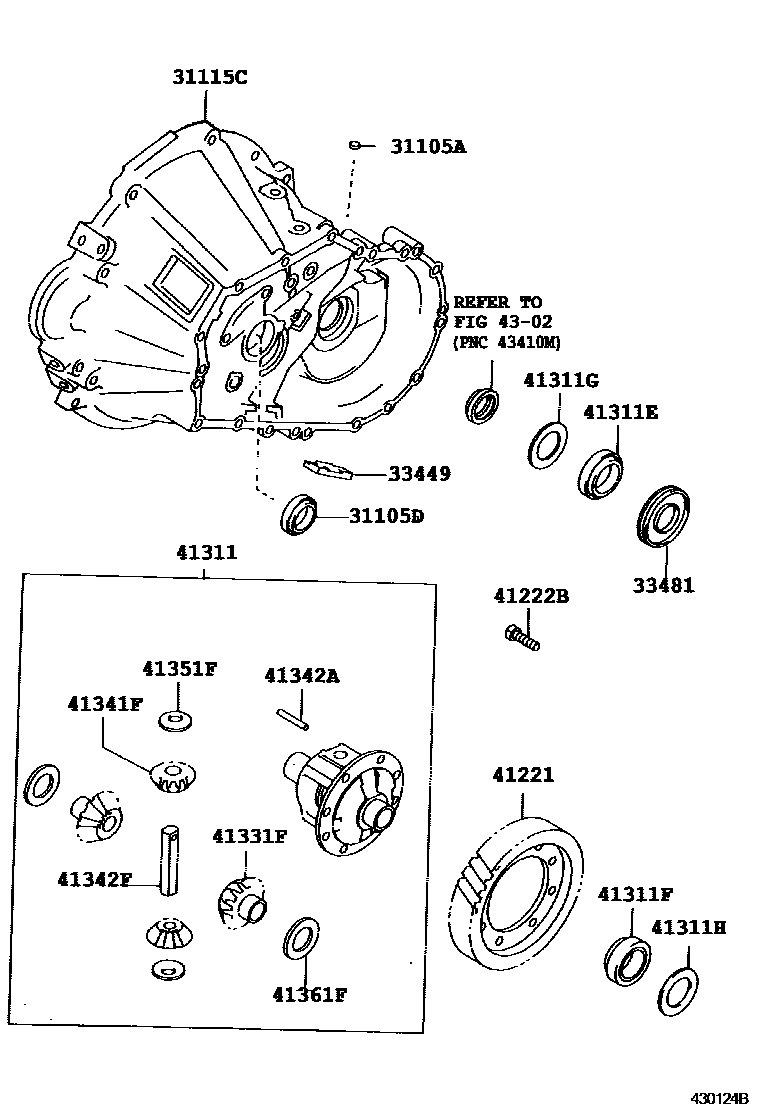

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C50,C51,C56,C160 0002 1A240L,A245E

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAE11#..5F199505-200008

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAE111..6F199505-200008

sub90311-25028

main90311-25016iAE11#..(FZ,XZ)..5F199505-200008

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-16040iAE11#..5F199505-199603

sub31115-16041

main31115-16041iAE11#..5F199603-199704

sub31115-16042

main31115-16042iAE11#..MTM199704-200008

33449MAGNET, TRANSMISSION

main33449-12020iAE11#..5F199505-200008

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAE11#..5F199505-200008

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12160iAE110..5F199710-200008

sub41221-12310

main41221-12190iAE110..4FC199505-200008

main41221-12310iAE110..5F199505-199710

sub41221-52280

main41221-12330iAE111..5F199505-200008

sub41221-52260

main41221-12340iAE111..(BZG,BZV)..5F199505-199704

sub41221-52270

main41221-12380iAE111..6F199704-200008

sub41221-12500

main41221-20230iAE111..4FC199505-200008

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iAE11#..4FC199505-200008

main90105-11040iAE11#..5F199505-200008

41311CASE, FRONT DIFFERENTIAL

main41301-12041iAE11#..(BZG,FZ,XZ)..5F199505-200008

main41301-12190iAE111..BZV..5F199505-199704

main41301-12190iAE111..BZR199704-200008

main41301-17021iAE110..4FC199505-200008

sub41301-20150

sub90366-42001

main41301-20150iAE111..4FC199505-200008

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90080-36101iAE110..5F199805-200008

sub90366-38004

sub90560-41003

main90366-38004iAE11#..5F199505-200008

main90368-38002iAE110..4FC199505-200008

main90368-38010iAE111..4FC199505-200008

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-42001iAE111..4FC199505-200008

main90368-38010iAE110;AE111..MTM199505-200008

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41010iAE110..4FC199505-200008

main90201-41012iAE11#..5F199505-199908

main90201-41024iAE111..4FC199505-200008

main90560-41002iAE110..5F199805-200008

main90560-41003iAE111..MTM199908-200008

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iAE11#..4FC199505-200008

main90201-41025iAE11#..4FC199505-200008

main90201-41026iAE11#..4FC199505-200008

main90201-41027iAE11#..4FC199505-200008

main90201-41028iAE11#..4FC199505-200008

main90201-41029iAE11#..4FC199505-200008

main90201-41030iAE11#..4FC199505-200008

main90201-41031iAE11#..4FC199505-200008

main90201-41032iAE11#..4FC199505-200008

main90201-41033iAE11#..4FC199505-200008

main90201-41034iAE11#..4FC199505-200008

main90201-41035iAE11#..4FC199505-200008

main90201-41036iAE11#..4FC199505-200008

main90201-41039iAE11#..4FC199505-200008

main90201-41040iAE11#..4FC199505-200008

main90201-41041iAE11#..4FC199505-200008

main90201-41042iAE11#..4FC199505-200008

main90201-41043iAE11#..4FC199505-200008

main90201-41044iAE11#..4FC199505-200008

main90201-41046iAE11#..MTM199505-199908

sub90564-41014

main90201-41047iAE11#..MTM199505-199908

sub90564-41015

main90201-41048iAE11#..5F199505-199908

sub90564-41016

main90201-41049iAE11#..MTM199505-199908

sub90564-41017

main90201-41050iAE11#..5F199505-199908

sub90564-41018

main90201-41051iAE11#..5F199505-199908

sub90564-41019

main90201-41052iAE11#..MTM199505-199908

sub90564-41020

main90201-41053iAE11#..5F199505-199908

sub90564-41021

main90201-41054iAE11#..MTM199505-199908

sub90564-41022

main90201-41055iAE11#..MTM199505-199908

sub90564-41023

main90201-41056iAE11#..5F199505-199908

sub90564-41024

main90201-41057iAE11#..5F199505-199908

sub90564-41025

main90201-41058iAE11#..MTM199505-199908

sub90564-41026

main90201-41059iAE11#..5F199505-199908

sub90564-41027

main90201-41060iAE11#..5F199505-199908

sub90564-41028

main90201-41061iAE11#..MTM199505-199908

sub90564-41029

main90201-41062iAE11#..5F199505-199908

sub90564-41030

main90201-41063iAE11#..MTM199505-199908

sub90564-41031

main90201-41064iAE11#..5F199505-199908

sub90564-41032

main90564-41014iAE11#..MTM199908-200008

main90564-41015iAE11#..MTM199908-200008

main90564-41016iAE11#..MTM199908-200008

main90564-41017iAE11#..MTM199908-200008

main90564-41018iAE11#..MTM199908-200008

main90564-41019iAE11#..MTM199908-200008

main90564-41020iAE11#..MTM199908-200008

main90564-41021iAE11#..MTM199908-200008

main90564-41022iAE11#..MTM199908-200008

main90564-41023iAE11#..MTM199908-200008

main90564-41024iAE11#..MTM199908-200008

main90564-41025iAE11#..MTM199908-200008

main90564-41026iAE11#..MTM199908-200008

main90564-41027iAE11#..MTM199908-200008

main90564-41028iAE11#..MTM199908-200008

main90564-41029iAE11#..MTM199908-200008

main90564-41030iAE11#..MTM199908-200008

main90564-41031iAE11#..MTM199908-200008

main90564-41032iAE11#..MTM199908-200008

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAE111..BZV..4FC;AE11#..BZG,FZ,XZ199505-200008

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAE111..BZV..4FC;AE11#..BZG,FZ,XZ199505-200008

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAE11#..BZG,BZV,FZ,XZ199505-200008

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12140iAE110;AE111..MTM..(BZG,XZ)199505-200008

sub41342-20060

main41342-20060iAE111..4FC199505-200008

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iAE111..BZV..4FC;AE11#..BZG,FZ,XZ199505-200008

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iAE11#..4FC199505-200008

main41361-17020iAE11#..4FC199505-200008

main41361-17030iAE11#..4FC199505-200008

main41361-17040iAE11#..4FC199505-200008

main41361-17050iAE11#..4FC199505-200008

main41361-17060iAE11#..4FC199505-200008

main41361-22020iAE11#..(BZG,FZ,XZ)..5F199505-200008

main41361-22030iAE11#..MTM..(BZG,FZ,XZ)199505-200008

main41361-22040iAE11#..MTM..(BZG,FZ,XZ)199505-200008

main41361-22140iAE11#..MTM..(BZG,FZ,XZ)199505-200008

main41361-22150iAE11#..(BZG,FZ,XZ)..5F199505-200008

main41361-22160iAE11#..(BZG,FZ,XZ)..5F199505-200008

4302

19 parts on this diagram · 2 diagrams in section
