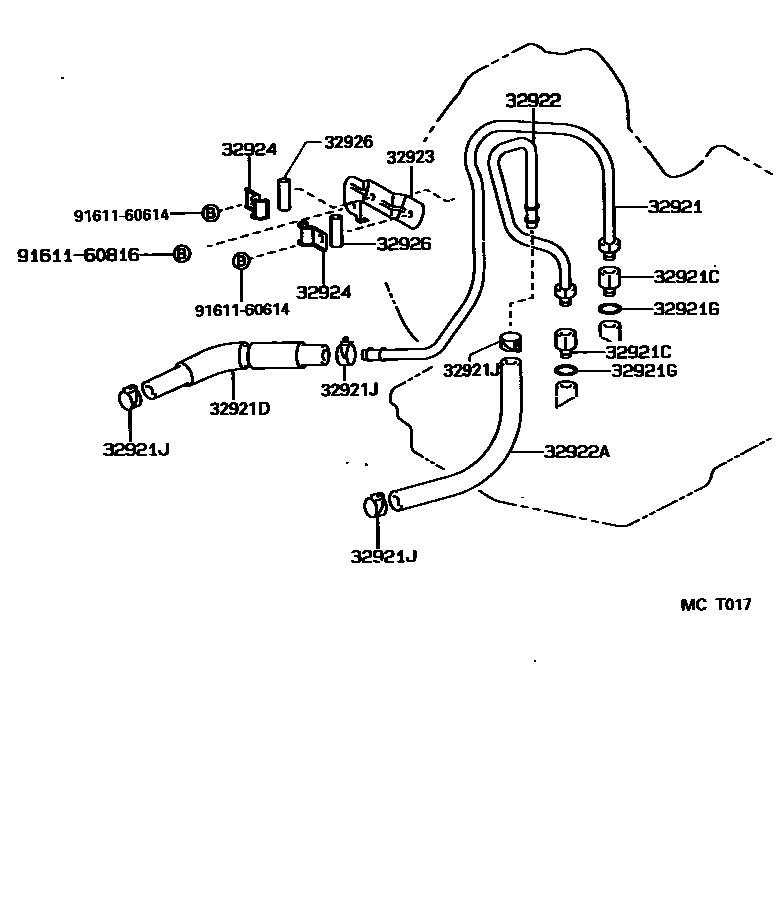

OIL COOLER & TUBE (ATM)

0001 1A240L 0002 1A245E

32921TUBE, OIL COOLER INLET, NO.1

main32921-12210iAE110..4FC199505-199704

main32921-12300iAE110..4FC199704-199709

sub32921-12301

main32921-12301iAE110..4FC199709-200008

main32921-12380iAE111..4FC199505-200008

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iAE110..4FC199704-200008

main90404-14007iAE110..4FC199505-199809

main90404-14007iAE110..4FC199704-200008

main90404-14019iAE111..4FC199505-200008

32921DHOSE(FOR OIL COOLER INLET)

main32941-12171iAE110..4FC199505-200008

main32941-12270iAE111..4FC199505-200008

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAE110..4FC199505-200008

main90301-11006iAE111..4FC199505-200008

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iAE11#..4FC199505-200008

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12320iAE110..4FC199505-200008

main32922-12370iAE111..4FC199505-200008

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22101iAE111..4FC199505-200008

main90445-15020iAE110..4FC199505-199608

main90445-15042iAE110..4FC199608-200008

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-12200iAE110..4FC199505-200008

main32923-12260iAE111..4FC199505-199805

sub32923-12261

main32923-12261iAE111..4FC199805-200008

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082iAE110..4FC199505-200008

main90462-10127iAE111..4FC199505-200008

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iAE111..4FC199505-200008

main32926-22010iAE110..4FC199505-200008

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
