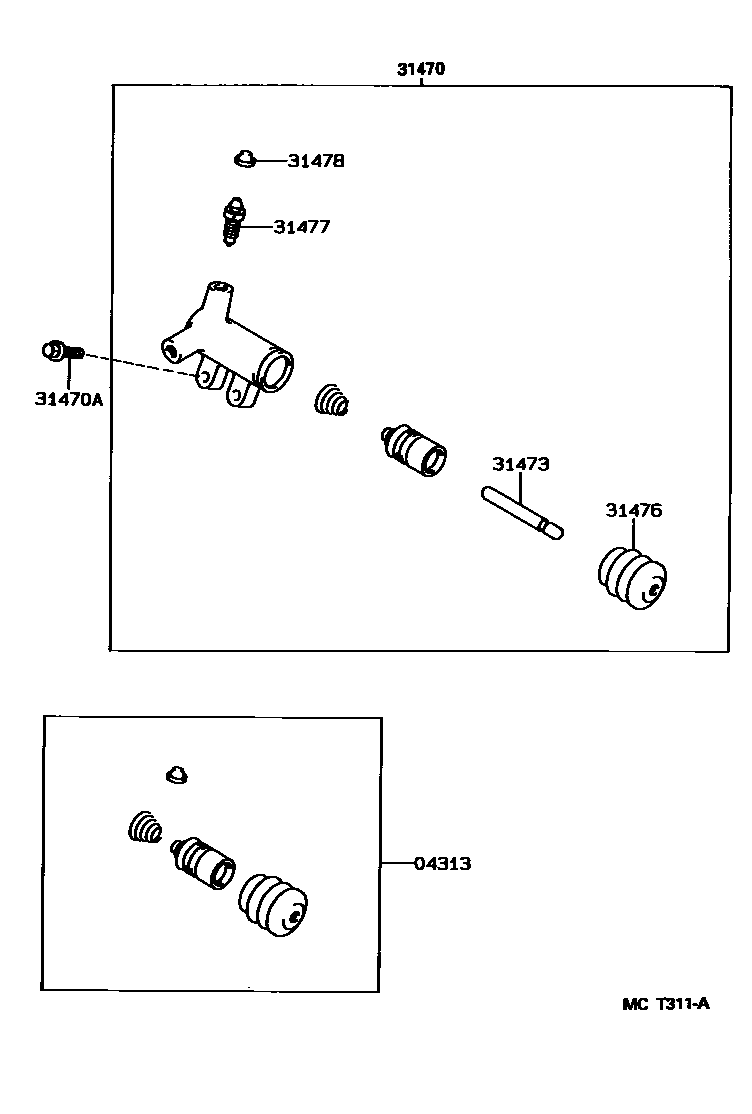

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22030iAE11#..MTM199505-200008

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12093iAE11#..5F199505-200008

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE11#..5F199505-200008

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAE11#..MTM199505-200008

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE11#..MTM199505-200008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAE11#..MTM199505-200008

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iAE11#..MTM199704-200008

main31478-30010iAE11#..5F199505-200008

7 parts on this diagram · 1 diagram in section
