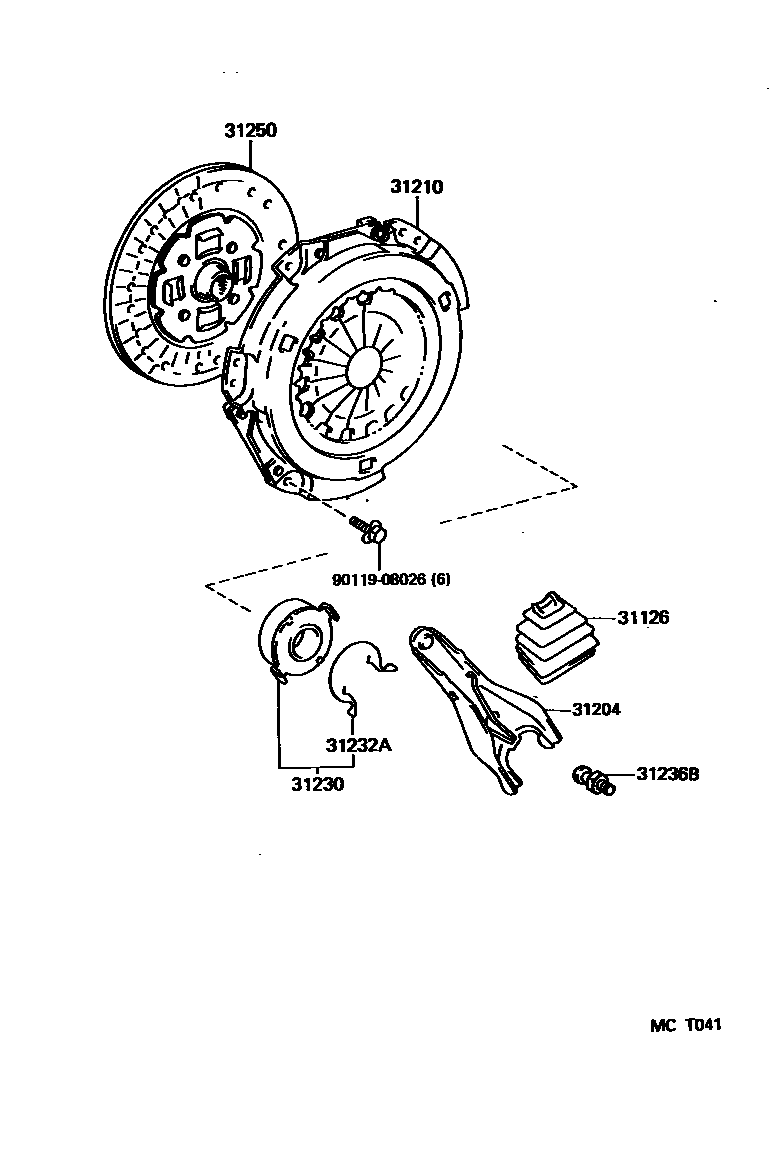

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE11#..5F199505-200008

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAE110..5F199506-200008

main31204-17010iAE111..5F199506-200008

main31204-17010iAE11#..5F199505-199506

31210COVER ASSY, CLUTCH

main31210-12152iAE111..6F199505-200008

main31210-12191iAE110..5F199505-200008

sub31210-12192

main31210-12201iAE111..XZ..5F199505-200008

sub31210-52050

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iAE110..5F199506-199907

sub31230-16061

main31230-12170iAE110..5F199506-200008

sub31230-12171

main31230-12170iAE11#..5F199505-199506

sub31230-12171

main31230-16060iAE110..5F199704-200008

sub31230-16061

main31230-52010iAE110..5F199907-200008

sub31230-52011

31232ACLIP, RELEASE BEARING HUB

main31232-12040iAE110..5F199506-200008

main31232-12050iAE11#..5F199505-199704

main31232-12060iAE11#..5F199505-199704

main31232-12070iAE11#..MTM199505-200008

main31232-16031iAE110..5F199506-200008

main31232-52010iAE110..5F199907-200008

31236BSUPPORT, RELEASE FORK

main31236-12011iAE110..5F199506-200008

*94,OD=15.3

main31236-12020iAE111..5F199506-200008

*95,OD=18.5

main31236-12020iAE11#..5F199505-199506

31250DISC ASSY, CLUTCH

main31250-12360iAE111..(BZG,BZV)..5F199505-200008

sub31250-12361

main31250-12370iAE110..5F199505-199708

sub31250-20280

main31250-12380iAE111..XZ..5F199505-199511

sub31250-12370

main31250-20280iAE11#..5F199608-200008

sub31250-12570

9011908026

main90119-08026

8 parts on this diagram · 3 diagrams in section
