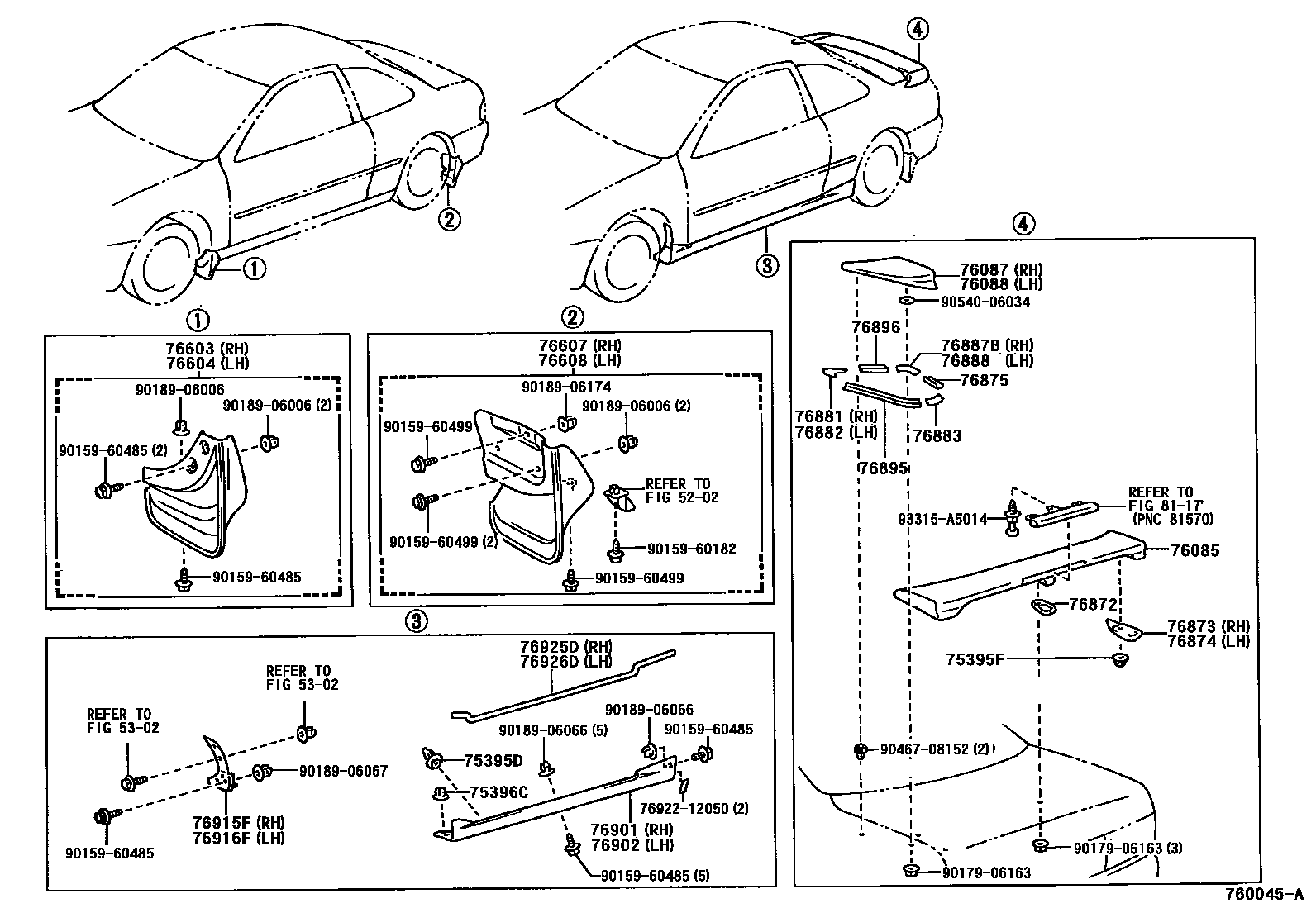

MUDGUARD & SPOILER
5202
5302
75395DCLIP, OUTSIDE MOULDING, NO.1
75395FCLIP, OUTSIDE MOULDING, NO.1
75396CCLIP, OUTSIDE MOULDING, NO.2 REAR
76085SPOILER SUB-ASSY, REAR
76087SPOILER SUB-ASSY, REAR NO.1
76088SPOILER SUB-ASSY, REAR NO.2
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK 2,205
RED MICA M,3K4
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
LAVENDER MICA M,925
LIGHT AQUA OPAL M,748
BLUEISH GRAY ME.,23V
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLACK M,205
RED MICA M,3K4
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
LAVENDER MICA M,925
LIGHT AQUA OPAL M,748
SILVER MICA M,192 ,28V
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
BLACK M,205
RED MICA M,3K4
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
LAVENDER MICA M,925
LIGTH AQUA M.OPAL,748
GT-APEX LIMITED OR SJ LIMITED,SILVER MICA M,192
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
BLACK M,205
RED MICA M,3K4
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
LAVENDER MICA M,925
LIGTH AQUA M.OPAL,748
GT-APEX LIMITED OR SJ LIMITED,SILVER MICA M,192
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76883PROTECTER, REAR SPOILER, NO.7 RH
76887BPROTECTOR, REAR SPOILER SIDE, NO.2
76888PROTECTOR, REAR SPOILER SIDE, NO.3
76895PROTECTOR, REAR SPOILER, NO.5
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76915FMUDGUARD, SIDE, FR RH
76916FMUDGUARD, SIDE, FR LH
76925DPROTECTOR, SIDE MUDGUARD, RH
76926DPROTECTOR, SIDE MUDGUARD, LH
8117
7692212050LINK, SIDE SEAT, REAR
main76922-12050
9015960182
main90159-60182
9015960485
main90159-60485
9015960499
main90159-60499
9017906163
main90179-06163
9018906006
main90189-06006
9018906066
main90189-06066
9018906067
main90189-06067
9018906174
main90189-06174
9046708152
main90467-08152
9054006034
main90540-06034
93315A5014
main93315-A5014
42 parts on this diagram · 3 diagrams in section
