FRONT BUMPER & BUMPER STAY

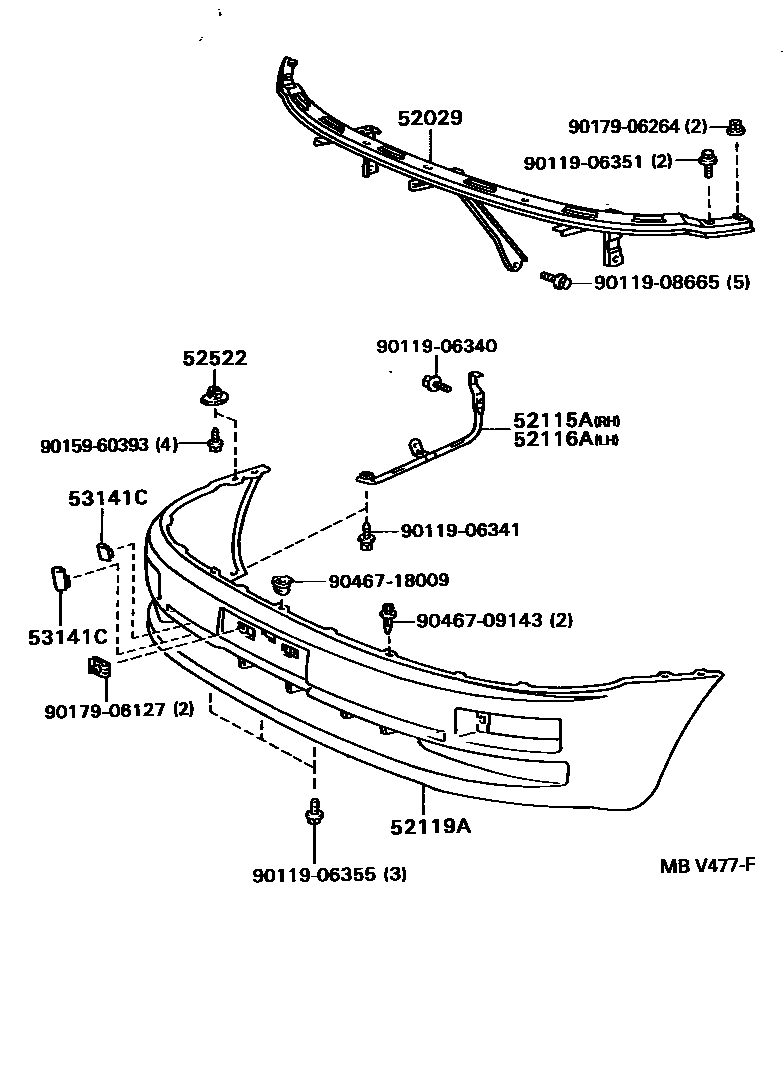

Parts diagram
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
main52029-12030i199106-199505
main52029-12040i199106-199505
main52029-12060i199205
main52029-12070i199205-199309
sub90467-09143
main52029-12071i199309
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-12330i199106-199505
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-12260i199106-199505
52119ACOVER, FRONT BUMPER
main52119-1E060-01i199106-199305
BLACK M,205
sub52119-1E901
main52119-1E060-02i199106-199305
RED MICA M,3K4
sub52119-1E901
main52119-1E060-07i199106-199305
GRAYISH GREEN M,6M3
sub52119-1E901
main52119-1E060-08i199106-199305
SUPER WHITE 2,040
sub52119-1E901
main52119-1E060-12i199106-199305
LAVENDER MICA M,925
sub52119-1E901
main52119-1E060-17i199106-199205
LIGHT AQUA M.OPAL,748
sub52119-1E901
main52119-1E060-B0i199201-199205
GT-APEX LIMITED OR SJ LIMITED,SILVER MICA M,192
sub52119-1E901
main52119-1E070-01i199106-199305
BLACK M,205
sub52119-1E915
main52119-1E070-02i199106-199305
RED MICA M,3K4
sub52119-1E915
main52119-1E070-07i199106-199305
GRAYISH GREEN M,6M3
sub52119-1E915
main52119-1E070-08i199106-199305
SUPER WHITE 2,040
sub52119-1E915
main52119-1E070-12i199106-199305
LAVENDER MICA M,925
sub52119-1E915
main52119-1E070-17i199106-199205
LIGHT AQUA M.OPAL,748
sub52119-1E915
main52119-1E070-B0i199205-199305
SILVER MICA M,192 ,28V
sub52119-1E915
main52119-1E160-A0i199205-199405
SUPER WHITE 2,040
sub52119-12922
main52119-1E160-B0i199205-199405
DARK BLUEISH GRAY M,183
sub52119-12922
main52119-1E160-B1i199205-199405
SILVER MICA M,192
sub52119-12922
main52119-1E160-C0i199212-199304
sub52119-12922
main52119-1E160-D0i199205-199405
RED MICA M,3K4
sub52119-12922
main52119-1E160-G0i199205-199405
GRAYISH GREEN M,6M3
sub52119-12922
main52119-1E160-H0i199205-199405
DEEP TURQUOISE M,747
sub52119-12922
main52119-1E170-A0i199205-199405
SUPER WHITE 2,040
sub52119-12923
main52119-1E170-B0i199205-199405
DARK BLUEISH GRAY M,183
sub52119-12923
main52119-1E170-B1i199205-199405
SILVER MICA M,192
sub52119-12923
main52119-1E170-C0i199212-199304
sub52119-12923
main52119-1E170-D0i199205-199405
RED MICA M,3K4
sub52119-12923
main52119-1E170-G0i199205-199405
GRAYISH GREEN M,6M3
sub52119-12923
main52119-1E170-H0i199205-199405
DEEP TURUQUOISE M,747
sub52119-12923
main52119-1E290-A0i199305-199505
SUPER WHITE 2,040
sub52119-1E904
main52119-1E290-B0i199405-199505
sub52119-1E904
main52119-1E290-B1i199405-199505
sub52119-1E904
main52119-1E290-C0i199305-199505
BLACK M,205
sub52119-1E904
main52119-1E290-D0i199305-199505
RED MICA M,3K4
sub52119-1E904
main52119-1E290-G0i199305-199405
GRAYISH GREEN M,20W ,6M3
sub52119-1E904
main52119-1E300-A0i199305-199505
SUPER WHITE 2,040
sub52119-1E919
main52119-1E300-B0i199412-199505
sub52119-1E919
main52119-1E300-B1i199412-199505
sub52119-1E919
main52119-1E300-C0i199305-199505
BLACK M,205
sub52119-1E919
main52119-1E300-D0i199305-199505
RED MICA M,3K4
sub52119-1E919
main52119-1E300-G0i199305-199405
GRAYISH GREEN M,20W ,6M3
sub52119-1E919
main52119-1E310-A0i199704-199808
SUPER WHITE 2,040
sub52119-1E927
main52119-1E310-B1i199405-199505
SILVER MICA M,192
sub52119-1E927
main52119-1E310-B2i199505-199605
SILVER PEARL M,1A7
sub52119-1E927
main52119-1E310-B3i199605-199808
SILVER ME,199
sub52119-1E927
main52119-1E310-C0i199412-199504
sub52119-1E927
main52119-1E310-D0i199405-199804
RED MICA M,3K4
sub52119-1E927
main52119-1E310-G1i199405-199704
MD.GRAISHGREEN MC.GR,6N1
sub52119-1E927
main52119-1E310-G2i199405-199505
YELLOW GREEN M.M GR,6N6
sub52119-1E927
main52119-1E310-G3i199508-199604
sub52119-1E927
main52119-1E310-G4i199505-199605
MD.GREEN M.M,6P0
sub52119-1E927
main52119-1E310-G5i199612-199704
sub52119-1E927
main52119-1E310-G6i199704-199808
DK.GREEN M.M.,6P2
sub52119-1E927
main52119-1E310-H1i199605-199610
TURQUOISE M.M.,756
sub52119-1E927
main52119-1E310-J0i199405-199808
DARK BLUE MICA M,8G5
sub52119-1E927
main52119-1E310-J1i199405-199808
LT PURPLISH BLUE M.M,8K1
sub52119-1E927
main52119-1E320-A0i199704-199808
SUPER WHITE 2,040
sub52119-1E928
main52119-1E320-B1i199405-199505
SILVER MICA M,192
sub52119-1E928
main52119-1E320-B2i199505-199605
SILVER PEARL M,1A7
sub52119-1E928
main52119-1E320-B3i199605-199808
SILVER ME,199
sub52119-1E928
main52119-1E320-C0i199412-199504
sub52119-1E928
main52119-1E320-D0i199405-199804
RED MICA M,3K4
sub52119-1E928
main52119-1E320-G1i199405-199704
MD.GRAISHGREEN MC.GR,6N1
sub52119-1E928
main52119-1E320-G2i199405-199505
YELLOW GREEN M.M GR,6N6
sub52119-1E928
main52119-1E320-G3i199508-199604
sub52119-1E928
main52119-1E320-G4i199505-199605
MD.GREEN M.M,6P0
sub52119-1E928
main52119-1E320-G5i199612-199704
sub52119-1E928
main52119-1E320-G6i199704-199808
DK.GREEN M.M.,6P2
sub52119-1E928
main52119-1E320-H1i199605-199610
TURQUOISE M.M.,756
sub52119-1E928
main52119-1E320-J0i199405-199808
DARK BLUE MICA M,8G5
sub52119-1E928
main52119-1E320-J1i199405-199808
LT PURPLISH BLUE M.M,8K1
sub52119-1E928
52522RETAINER, FRONT BUMPER UPPER SIDE
main52522-12050×4i199106-199411
main90189-06089×2i199411-199505
53141CGARNISH, RADIATOR GRILLE
main53141-12070i199305-199505
main53141-12080i199305-199505
main53141-12100×2i199405-199704
9011906340
main90119-06340
9011906341
main90119-06341
9011906351
main90119-06351
9011906355
main90119-06355
9011908665
main90119-08665
9015960393
main90159-60393
9017906127
main90179-06127
9017906264
main90179-06264
9046709143
main90467-09143
9046718009
main90467-18009

16 parts on this diagram · 4 diagrams in section
