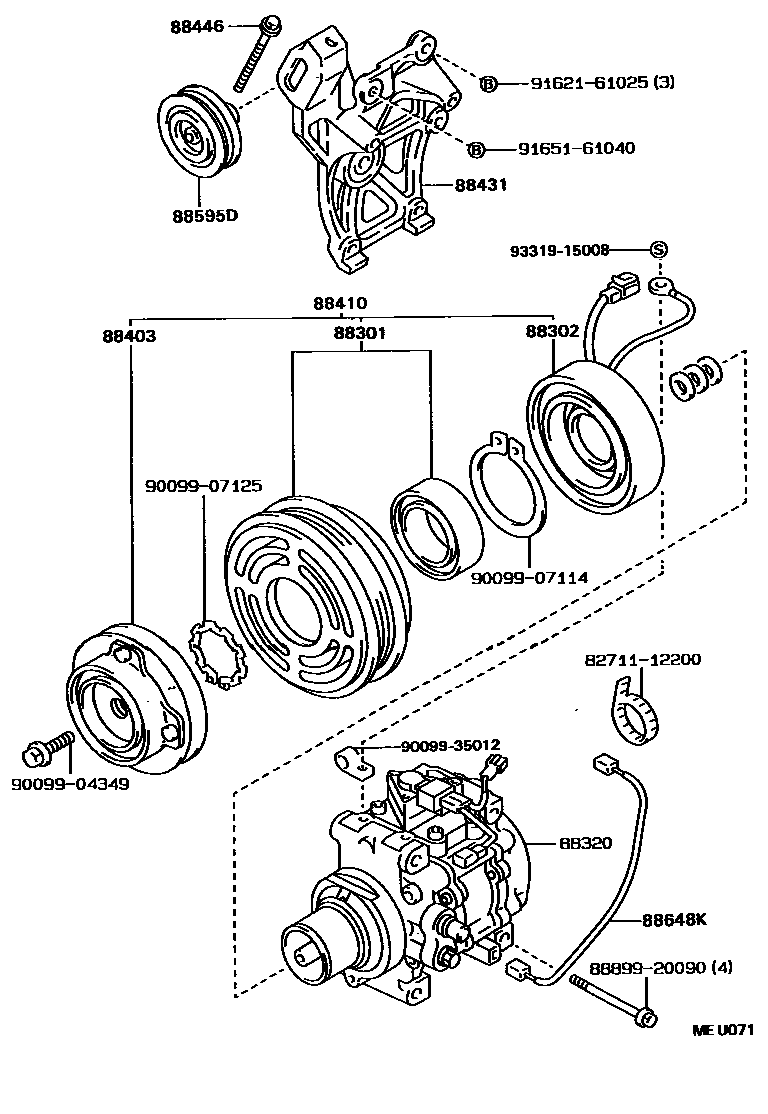

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12170iAE92..SPC198905-199106

main88412-12180iAE91198705-199106

main88412-16050iAE92..EFI198705-199106

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16021iAE91198705-199106

sub88411-60030

main88411-60030iAE9#..G,GTZ,L,ZS198905-199106

88320COMPRESSOR ASSY, COOLER

main88320-12550iAE92..GT,GTV198705-198803

main88320-12560iAE91..L198705-198803

main88320-12590iAE92..SPC198705-198803

main88320-12640iAE92..SPC198803-198905

sub88320-12770

main88320-12650iAE9#..G,GT,GTV,ZI198803-198905

sub88320-12780

main88320-12660iAE92..GT,GTV198803-198905

main88320-12770iAE92..SPC198905-199106

main88320-12780iAE91198905-199106

main88320-12790iAE92..GTAPX198905-199106

main88320-12870iAE92..GT198905-199106

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iAE92198705-199106

88410CLUTCH ASSY, MAGNET

main88410-10210iAE92..EFI198905-199106

sub88410-1A080

main88410-12250iAE91198705-198905

main88410-12260iAE92..SPC198705-198905

main88410-12290iAE91198905-199106

sub88410-1A090

main88410-12310iAE92..SPC198905-199106

main88410-16050iAE92..EFI198705-198905

sub88410-1A080

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12390iAE92..GT,GTV198803-198905

main88431-12390iAE92..GTAPX198705-199106

main88431-12400iAE91..G,ZI198705-199106

main88431-12410iAE92..GT,GTV198705-199106

main88431-12430iAE91..4FC..CBR198712-198905

main88431-12440iAE92..GT,GTV198803-198905

main88431-12450iAE92..GT,GTV198803-198905

main88431-12490iAE91..EFIS198905-199106

88446BOLT, IDLE PULLEY

main88446-12030iAE91..G,ZI198705-199106

main88446-35010iAE92..EFI198705-199106

88595DPULLEY ASSY, IDLE

main88440-17010iAE91..G,ZI198705-199106

main88440-32030iAE92..EFI198705-199106

88648KWIRE SUB-ASSY, SENSOR

main88648-12380iAE91..L198705-199106

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9009935012

main90099-35012

9162161025

main91621-61025

9165161040

main91651-61040

9331915008

main93319-15008

18 parts on this diagram · 2 diagrams in section
