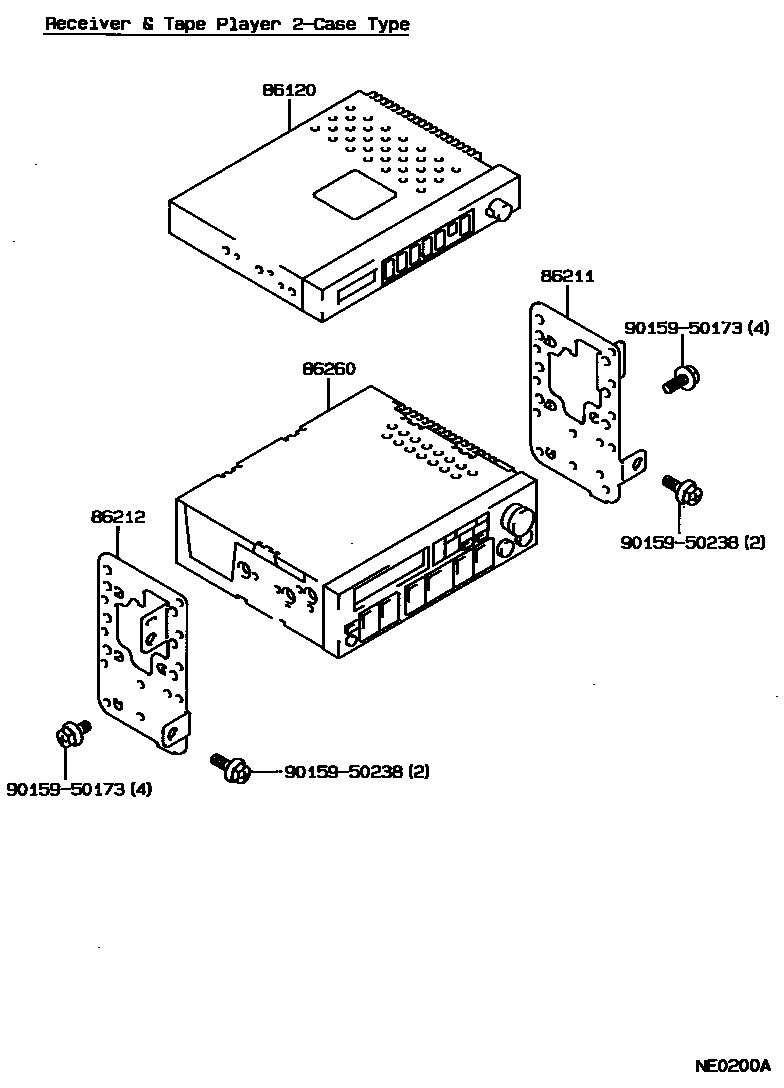

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-12410iAE91..EFI198705-199106

AM

main86120-12420iAE9#..G,GT,GTV,GTZ,L198705-199002

AM/FM ETR/2-AMP

sub86120-12421

main86120-12421iAE9#..G,GT,L199002-199106

AM/FM ETR/2-AMP

main86120-12540iAE9#198705-198905

main86120-32180iAE9#..EFI,SPC198705-198905

AM/FM ETR,CASSETTE 2-DIN/4-AMP

86211BRACKET, RADIO, NO.1

main86211-12240iAE9#198705-199106

86212BRACKET, RADIO, NO.2

main86212-12220iAE9#198705-199106

86260TAPE PLAYER ASSY

main86260-19105iAE92..GT198705-199106

main86260-19115iAE91..EFI198705-199106

main86260-19125iAE9#..G,GTAPX,GTZ,L,ZS198705-199106

main86260-19125iAE9#..G,GT,GTAPX,L,ZI198705-199106

main86260-19135iAE92..GTV,GTZ198705-199106

main86260-19135iAE9#..G,GT,GTAPX,L,ZI198705-199106

main86260-19145iAE92..GT198705-199106

main86260-19155iAE9#..G,GTAPX,GTZ,L,ZS198705-199106

main86260-19155iAE9#..G,GTAPX,GTZ,L,ZS198705-199106

main86260-19165iAE9#..G,GT,GTAPX,L,ZI198705-199106

main86260-19165iAE9#..G,GT,GTAPX,L,ZI198705-199106

main86260-19175iAE9#..G,GT,L198705-199106

9015950173

main90159-50173

9015950238

main90159-50238

6 parts on this diagram · 3 diagrams in section
