SIDE MEMBER

59198SEAL, NOISE SHUTTER

main59198-12010iAE9#198705-199106

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-12740iAE9#198705-199106

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-12750iAE9#198705-199106

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-12060iAE9#198705-199106

61211RAIL, ROOF SIDE, OUTER RH

main61211-12260iAE9#198705-199106

61212RAIL, ROOF SIDE, OUTER LH

main61212-12260iAE9#198705-199106

61231RAIL, ROOF SIDE, INNER RH

main61231-12630iAE9#198705-199106

61232RAIL, ROOF SIDE, INNER LH

main61232-12490iAE9#..EFI,SPC198705-198708

sub61232-12580

main61232-12580iAE9#198708-199106

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12150iAE9#198705-199106

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12150iAE9#198705-199106

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-12040iAE9#..G,GT,GTAPX,GTV,GTZ,ZI198705-198905

sub61281-12070

main61281-12070iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-12050iAE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS198705-199106

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-12050iAE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS198705-199106

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-12050iAE9#198705-199106

RH

main61368-12030iAE9#198705-198812

LH

sub61368-12040

main61368-12040iAE9#198812-199106

LH

61411PANEL, ROCKER, OUTER RH

main61411-12400iAE9#..CBR,EFI,EFIS198705-199106

main61411-12430iAE9#..GTAPX,GTV,ZI198705-199106

main61411-12430iAE92..SPC198705-199106

61412PANEL, ROCKER, OUTER LH

main61412-12390iAE9#..CBR,EFI,EFIS198705-199106

main61412-12410iAE92..SPC198705-199106

main61412-12410iAE9#..GTAPX,GTV,ZI198705-199106

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-12020iAE9#198705-198905

sub61423-12050

main61423-12050iAE9#198905-199106

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-12010iAE9#198705-198905

sub61424-12040

main61424-12040iAE9#198905-199106

61611PANEL, QUARTER, RH

main61601-1E903iAE9#..CBR,EFI,EFIS198705-199106

main61601-1E905iAE9#..GTAPX,GTV,ZI198705-199106

main61601-1E907iAE92..SPC198705-199106

61612PANEL, QUARTER, LH

main61602-1E906iAE9#..GT,GTAPX,ZS198705-199106

main61602-1E908iAE92..SPC198705-199106

main61602-1E909iAE9#..CBR,EFI,EFIS198705-199106

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12320iAE9#198705-198910

sub61621-12321

main61621-12321iAE9#198910-199106

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12320iAE9#198705-198910

sub61622-12321

main61622-12321iAE9#198910-199106

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12050iAE9#198705-199106

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12070iAE9#198705-199106

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12240iAE92..SPC198705-199106

main61631-12250iAE9#..CBR,EFI,EFIS198705-199106

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12240iAE92..SPC198705-199106

main61632-12250iAE9#..CBR,EFI,EFIS198705-199106

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12110iAE9#..G,GTAPX,GTV,GTZ,ZI,ZS198705-199106

main61607-12280iAE9#..GT,L198705-199106

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12270iAE9#..G,GTAPX,GTV,GTZ,ZI,ZS198705-199106

main61608-12280iAE9#..GT,L198705-199106

61667DSEAL, QUARTER PANEL

main61667-12060iAE9#198708-198905

main61667-12060iAE9#198905-199106

60X60

main61667-12070iAE9#198905-199106

220X120

61731BPANEL, ROOF SIDE, INNER RH

main61705-12950iAE9#..EFI,SPC198705-198901

sub61705-12951

main61705-12953iAE9#198901-199106

61732BPANEL, ROOF SIDE, INNER LH

main61706-12955iAE91..CBR198705-198901

sub61706-12956

main61706-12958iAE9#198901-199106

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-12140iAE9#198705-199106

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-12140iAE9#198705-199106

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12901iAE9#198705-199106

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12901iAE9#198705-199106

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12150iAE9#198705-199106

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12150iAE9#198705-199106

61824PLATE, NOISE CONTROL, NO.1

main61824-12020iAE9#198705-198809

sub61824-12040

main61824-12040iAE9#198809-199106

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iAE9#..G,GT,GTAPX,GTV,GTZ,ZI198705-198708

main61825-12010iAE9#..G,GT,GTAPX,GTV,GTZ,ZI198705-198708

90 X 65

main61825-12010iAE91..CBR198708-198905

180X196

main61825-12010iAE9#..G,GT,GTAPX,GTZ,ZS198905-199106

main61827-12010iAE9#198705-198708

105 X 71

62155APAD, COWL SIDE LOWER SILENCER

main62155-12010iAE9#198705-199106

62155BPAD, QUARTER PANEL

main62155-12010iAE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS198705-199106

62553DPAD, PILLAR, NO.3

main62553-12120iAE9#198705-199106

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010iAE9#198905-199106

9010508120

main90105-08120

9017908102

main90179-08102

9095001056

main90950-01056

9095001327

main90950-01327

9095001580

main90950-01580

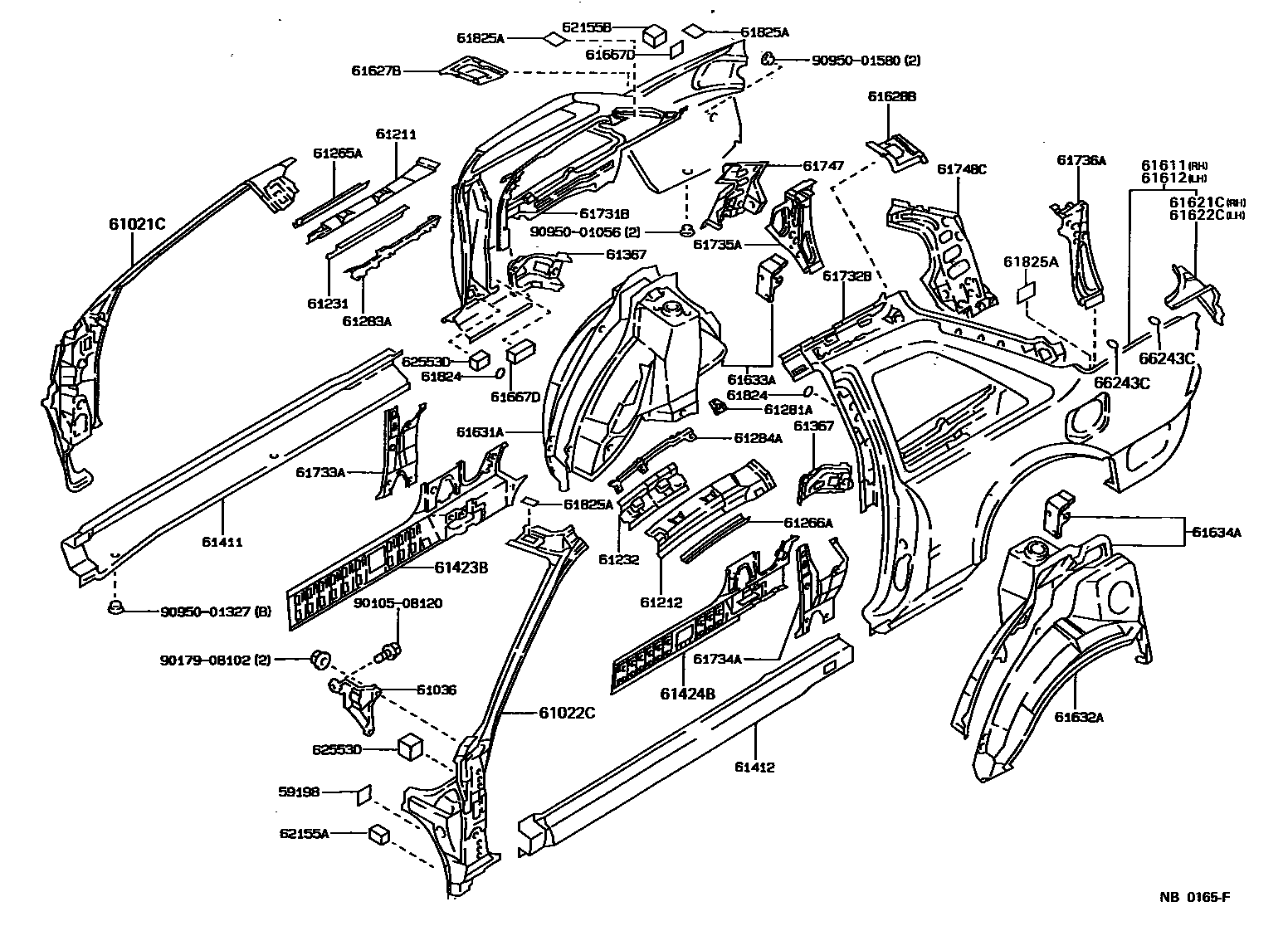

48 parts on this diagram · 1 diagram in section
