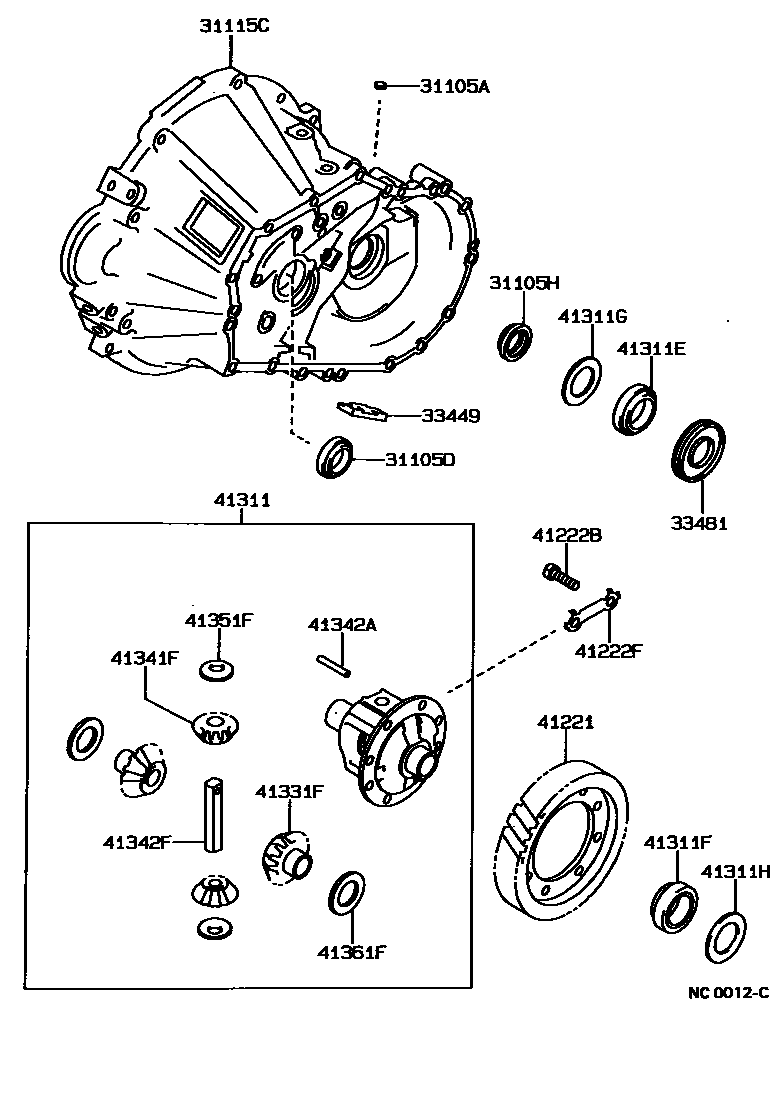

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C50,C52 0003 1E52,E58 0004 1A131L 0005 1A240L,A240E

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAE9#..5F..(CBR,EFI,EFIS)198705-199106

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAE91..5F..CBR198705-199106

sub90311-25028

main90311-30006iAE92..SPC198705-199106

sub90311-30017

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iAE9#..5F..(EFI,EFIS)198705-198905

sub90311-34016

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iAE9#..5F..(EFI,EFIS)198705-198905

sub31115-16040

sub33125-12011

main31115-12070iAE92..SPC198906-199106

sub31115-12071

main31115-17012iAE92..SPC198705-198804

sub31115-17013

sub90407-16017

main31115-17013iAE92..SPC198804-198906

sub31115-12070

33449MAGNET, TRANSMISSION

main33449-12010iAE9#..5F..(CBR,EFI)198705-199005

sub33449-12020

main33449-12020iAE9#..5F..(EFI,EFIS)199005-199106

main33449-20010iAE92..SPC198705-199106

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main33481-17010iAE92..SPC198705-199102

main33481-17011iAE92..SPC199102-199106

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12160iAE91..5F..EFI198905-199101

sub41221-12310

main41221-12190iAE9#..4FC..(CBR,EFI)198705-199106

main41221-12210iAE91..3FC198705-199102

sub41221-12360

main41221-12240iAE92..SPC198705-198805

main41221-12290iAE92..SPC198805-199106

main41221-12310iAE91..5F..EFI198705-199106

sub41221-52280

main41221-12330iAE91..5F..EFI198705-198905

sub41221-52260

main41221-12340iAE9#..5F..(GT,GTAPX,ZS)199101-199106

sub41221-52270

main41221-12360iAE91..3FC199102-199106

main41221-17010iAE92..5F..EFI198705-199101

sub41221-12340

main41221-20230iAE91..4FC..EFIS198905-199106

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iAE9#..CBR,EFI,EFIS198705-199106

main90105-12154iAE92..SPC198705-199106

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41222-12050iAE9#..ATM198705-199106

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub41301-12041

sub90105-11040

main41301-12100iAE91..3FC198705-198902

sub41301-12101

main41301-12101iAE91..3FC198902-199106

sub41301-12051

main41301-17020iAE9#..4FC198705-198902

sub41301-17021

main41301-17021iAE9#..4FC198902-199106

sub41301-20150

sub90366-42001

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAE9#..5F..(CBR,EFI)198705-199106

main90366-57016iAE92..SPC198705-199106

main90368-38006iAE9#..ATM198705-199106

sub90368-38002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-50014iAE92..SPC198705-199106

main90368-38006iAE91..3FC198705-199106

sub90368-38002

main90368-38010iAE9#..(4FC,5F)..(CBR,EFI)198705-199106

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iAE91..3FC198705-199106

main90201-41003iAE91..3FC198705-199106

main90201-41004iAE91..3FC198705-199106

main90201-41005iAE91..3FC198705-199106

main90201-41006iAE91..3FC198705-199106

main90201-41007iAE91..3FC198705-199106

main90201-41008iAE91..3FC198705-199106

main90201-41009iAE91..3FC198705-199106

main90201-41010iAE9#..ATM198705-199106

main90201-41011iAE91..3FC198705-199106

main90201-41012iAE91..3FC198705-199106

main90201-41013iAE91..3FC198705-199106

main90201-41014iAE91..3FC198705-199106

main90201-41015iAE91..3FC198705-199106

main90201-41016iAE91..3FC198705-199106

main90201-41017iAE91..3FC198705-199106

main90201-41018iAE91..3FC198705-199106

main90201-41019iAE91..3FC198705-199106

main90201-41020iAE91..3FC198705-199106

main90201-41021iAE91..3FC198705-199106

main90201-41022iAE91..3FC198705-199106

main90201-41023iAE91..3FC198705-199106

main90201-41045iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iAE91..3FC198705-199106

main90201-41024iAE9#..4FC198705-199106

main90201-41025iAE9#..4FC198705-199106

main90201-41026iAE9#..4FC198705-199106

main90201-41027iAE9#..4FC198705-199106

main90201-41028iAE9#..4FC198705-199106

main90201-41029iAE9#..4FC198705-199106

main90201-41030iAE9#..4FC198705-199106

main90201-41031iAE9#..4FC198705-199106

main90201-41032iAE9#..4FC198705-199106

main90201-41033iAE9#..4FC198705-199106

main90201-41034iAE9#..4FC198705-199106

main90201-41035iAE9#..4FC198705-199106

main90201-41036iAE9#..4FC198705-199106

main90201-41039iAE9#..4FC198705-199106

main90201-41040iAE9#..4FC198705-199106

main90201-41041iAE9#..4FC198705-199106

main90201-41042iAE9#..4FC198705-199106

main90201-41043iAE9#..4FC198705-199106

main90201-41044iAE9#..4FC198705-199106

main90201-41046iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41014

main90201-41047iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41015

main90201-41048iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41016

main90201-41049iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41017

main90201-41050iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41018

main90201-41051iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41019

main90201-41052iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41020

main90201-41053iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41021

main90201-41054iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41022

main90201-41055iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41023

main90201-41056iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41024

main90201-41057iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41025

main90201-41058iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41026

main90201-41059iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41027

main90201-41060iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41028

main90201-41061iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41029

main90201-41062iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41030

main90201-41063iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41031

main90201-41064iAE9#..5F..(CBR,EFI,EFIS)198705-199106

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAE9#..CBR,EFI,EFIS198705-199106

main41331-17010iAE92..SPC198705-199106

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAE9#..CBR,EFI,EFIS198705-199106

main41341-20020iAE92..SPC198705-199106

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAE9#..CBR,EFI,EFIS198705-199106

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12020iAE9#..5F..(CBR,EFI)198705-198903

sub41342-12140

main41342-12110iAE9#..ATM198902-199104

sub41342-12020

main41342-12140iAE91..5F..CBR198903-198905

sub41342-20060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iAE9#..CBR,EFI,EFIS198705-199106

main41351-20010iAE92..SPC198705-199106

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iAE9#..ATM198705-199106

main41361-17020iAE9#..ATM198705-199106

main41361-17030iAE9#..ATM198705-199106

main41361-17040iAE9#..ATM198705-199106

main41361-17050iAE9#..ATM198705-199106

main41361-17060iAE9#..ATM198705-199106

main41361-22020iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41361-22030iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41361-22040iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41361-22140iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41361-22150iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41361-22160iAE9#..5F..(CBR,EFI,EFIS)198705-199106

main41362-17010iAE92..SPC198705-199106

main41362-17020iAE92..SPC198705-199106

main41362-17030iAE92..SPC198705-199106

main41362-17040iAE92..SPC198705-199106

main41362-17050iAE92..SPC198705-199106

main41362-17060iAE92..SPC198705-199106

main41362-17070iAE92..SPC198705-199106

20 parts on this diagram · 4 diagrams in section
