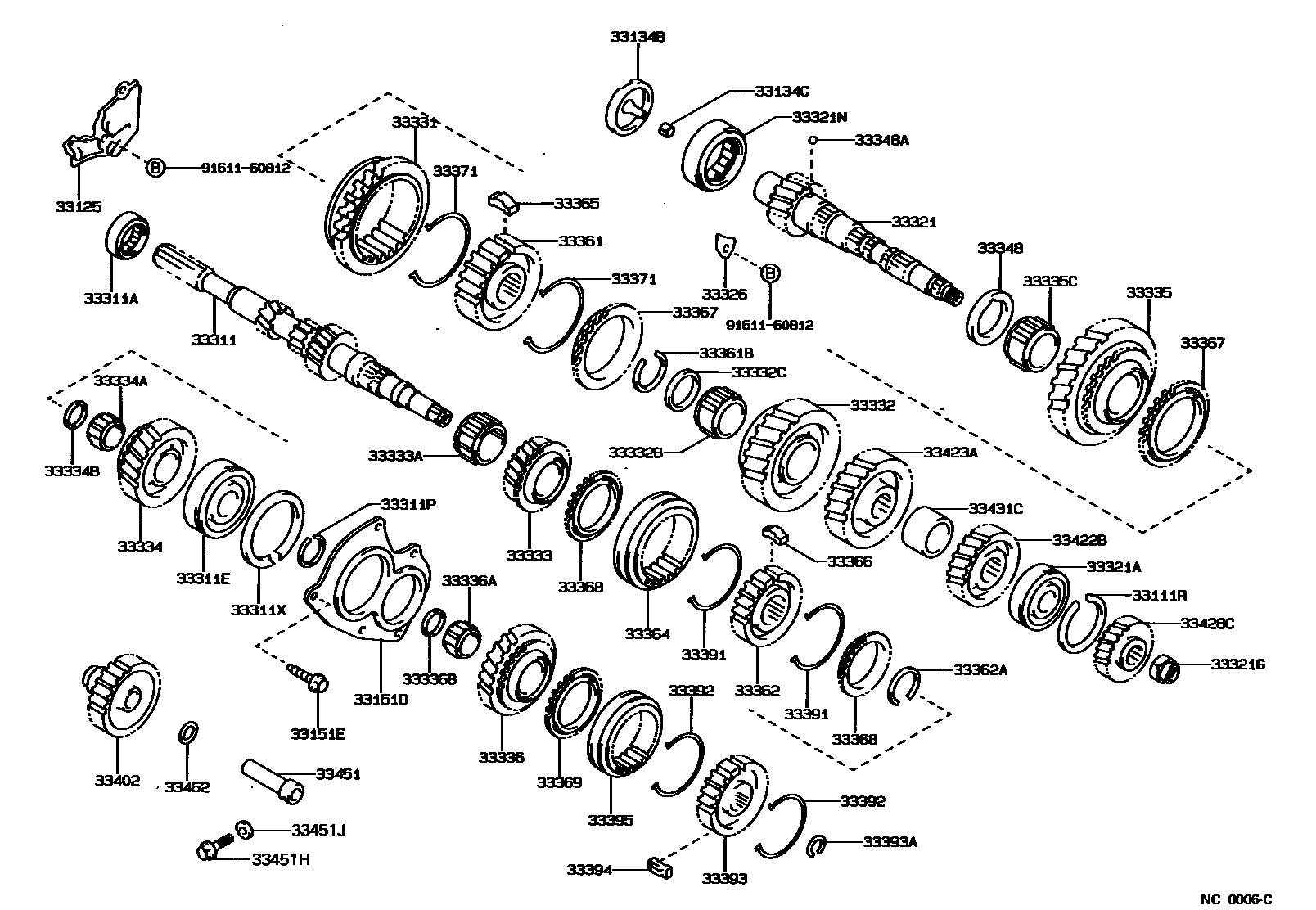

TRANSMISSION GEAR (MTM)

0001 1C50,C52 0003 1C50,C52 0004 1E52 0005 1E58

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iAE9#..5F..(EFI,EFIS)¥190198705-199106

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12010iAE9#..5F..(CBR,EFI,EFIS)¥380198705-199106

main33125-20010iAE92..SPC¥280198705-199106

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-12021iAE9#..5F..(CBR,EFI,EFIS)¥470198705-199106

main33134-20010iAE92..SPC¥500198705-199106

33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)

main90254-10001iAE9#..5F..(CBR,EFI,EFIS)¥170198705-199106

33151DRETAINER, BEARING, REAR(MTM)

main33151-12020iAE9#..5F..(CBR,EFI,EFIS)¥3,830198705-199106

sub33151-12021¥3,860

main33151-12030iAE92..SPC¥4,710198805-198812

sub33151-12031¥4,730

main33151-12031iAE92..SPC¥4,730198812-199106

sub33151-28020¥4,720

main33151-20020iAE92..SPC¥3,000198705-198805

sub33151-20021¥3,000

33151EBOLT(FOR REAR BEARING RETAINER)

main90119-08944iAE9#..5F..(EFI,EFIS)¥90199101-199106

main91611-60820iAE9#..5F..(CBR,EFI,EFIS)¥200198705-199101

sub91611-G0820¥160

33311SHAFT, INPUT

main33311-12041iAE9#..5F..EFI¥32,100198705-199104

sub33311-12180¥31,900

main33311-12061iAE91..5F..(G,L)¥32,100198705-199104

sub33311-12170¥31,900

main33311-12080iAE92..SPC¥32,100198705-198805

main33311-12110iAE92..SPC¥30,900198805-199106

main33311-12170iAE91..5F..EFI¥31,900199104-199106

sub33311-12171¥30,300

main33311-12180iAE9#..5F..(GT,GTAPX,ZS)¥31,900199104-199106

sub33311-12181¥30,300

33311ABEARING (FOR INPUT SHAFT FRONT)

main90365-25021iAE9#..5F..(CBR,EFI)¥1,460198705-199106

main90365-30023iAE92..SPC¥4,240198705-199106

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-25048iAE9#..5F..(CBR,EFI)¥2,060198705-199106

sub90363-25091¥2,300

main90363-33005iAE92..SPC¥2,300198705-198904

sub90363-33007¥2,550

main90363-33007iAE92..SPC¥2,550198904-199106

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iAE91..5F..EFI¥110198705-199106

main90520-22006iAE91..5F..CBR¥110198808-198905

main90520-22007iAE9#..5F..(EFI,EFIS)¥110198705-199106

main90520-22007iAE91..5F..CBR¥110198808-198905

main90520-22008iAE91..5F..EFI¥110198705-199106

main90520-22008iAE91..5F..EFI¥110198808-198905

main90520-22009iAE91..5F..EFI¥110198705-199106

main90520-22009iAE91..5F..CBR¥110198808-198905

main90520-22010iAE91..5F..EFI¥110198808-198905

main90520-22010iAE9#..5F..(CBR,EFI)¥110198705-199106

main90520-22011iAE91..5F..CBR¥110198808-198905

main90520-22011iAE91..5F..EFI¥110198705-199106

main90520-30008iAE92..SPC¥170198705-199106

main90520-30009iAE92..SPC¥170198705-199106

main90520-30010iAE92..SPC¥170198705-199106

main90520-30011iAE92..SPC¥170198705-199106

main90520-30012iAE92..SPC¥170198705-199106

main90520-30013iAE92..SPC¥170198705-199106

main90520-30021iAE92..SPC¥170198705-199106

main90520-30022iAE92..SPC¥170198705-199106

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iAE9#..5F..(CBR,EFI)¥190198705-199106

33321SHAFT, OUTPUT

main33302-12030iAE92..SPC¥18,200198805-199106

sub33302-12031¥18,200

sub90366-32025¥2,670

main33321-12051iAE91..5F..(G,L)¥14,600198705-199106

sub33321-52080¥14,600

main33321-12071iAE91..5F..EFI¥16,700198705-198905

sub33321-52100¥16,200

main33321-12090iAE92..SPC¥15,600198705-198805

sub33321-20120¥15,500

main33321-17011iAE9#..5F..(GT,GTAPX,GTV,ZS)¥16,700198705-199106

sub33321-52110¥14,800

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-25029iAE92..5F..EFI¥2,420198705-199106

sub90363-25061¥2,170

main90363-25061iAE91..5F¥2,170199104-199106

sub90903-63010¥2,750

main90366-28002iAE92..SPC¥2,180198705-199106

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18005iAE91..5F..CBR¥190198705-199106

main90179-20012iAE92..SPC¥310198705-199106

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90365-33005iAE9#..5F..(CBR,EFI,EFIS)¥3,030198705-199106

main90366-32002iAE92..SPC¥2,670198705-198805

main90366-32016iAE92..SPC¥2,670198805-199106

33326PLATE, BEARING LOCK

main33326-12010iAE9#..5F..(CBR,EFI,EFIS)¥250198705-199106

33331GEAR, REVERSE

main33331-12020iAE9#..5F..(EFI,EFIS)¥11,200198705-198908

sub33331-12021¥13,000

sub33212-10012¥2,160

main33331-12021iAE9#..5F..(EFI,EFIS)¥13,000198908-199104

sub33331-12H02¥15,500

sub33331-12H04¥15,500

main33331-12030iAE92..SPC¥14,700198805-199106

main33331-12050iAE9#..5F..(EFI,EFIS)¥13,000199104-199106

sub33331-12H03¥15,500

main33331-20040iAE92..SPC¥16,300198705-198805

33332GEAR, 2ND

main33033-12010iAE9#..5F..EFI¥19,500198705-199104

sub33033-12050¥19,200

sub33365-12021¥300

sub33367-12080¥3,500

sub33367-12120¥3,510

main33033-12040iAE92..SPC¥19,500198805-199106

main33033-12050iAE9#..5F..(EFI,EFIS)¥19,200199104-199106

sub33033-12060¥19,400

main33033-20060iAE92..SPC¥17,000198705-198805

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-32014iAE9#..5F..(CBR,EFI)¥1,670198705-199106

main90364-39006iAE92..SPC¥1,940198705-198805

main90364-44001iAE92..SPC¥2,560198805-199106

33332CSPACER (FOR 2ND GEAR BEARING)

main90560-32008iAE91..5F..CBR¥100198705-199106

main90560-39003iAE92..SPC¥130198705-198805

33333GEAR, 3RD

main33034-12020iAE9#..5F..(CBR,EFI,EFIS)¥18,300198705-199104

sub33034-12080¥18,200

sub33368-12060¥3,090

main33034-12060iAE92..SPC¥17,300198805-199106

sub33034-12061¥17,300

main33034-12080iAE9#..5F..(EFI,EFIS)¥18,200199104-199106

sub33034-12110¥18,200

main33034-20030iAE92..SPC¥10,200198705-198805

sub33034-20040¥11,900

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-31002iAE9#..5F..(CBR,EFI,EFIS)¥1,530198705-199106

main90364-36007iAE92..SPC¥1,580198705-198805

main90364-36011iAE92..SPC¥1,920198805-199106

sub90364-36024¥1,920

33334GEAR, 4TH

main33035-12011iAE9#..5F..EFI¥11,200198705-199104

sub33035-12090¥11,900

sub33368-12060¥3,090

main33035-12030iAE92..SPC¥13,900198805-199106

sub33035-12031¥13,500

main33035-12060iAE9#..5F..(EFI,EFIS)¥11,800199104-199106

sub33035-12090¥11,900

main33035-20020iAE92..SPC¥16,300198705-198805

sub33035-20030¥13,600

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-29002iAE9#..5F..(CBR,EFI,EFIS)¥1,210198705-199106

main90364-36010iAE92..SPC¥1,460198705-198805

main90364-36014iAE92..SPC¥1,920198805-199106

sub90364-36027¥1,920

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iAE9#..5F..(CBR,EFI)¥80198705-199106

main90560-36002iAE92..SPC¥130198705-199106

33335GEAR, 1ST

main33032-12010iAE91..5F..(G,L)¥20,000198705-199104

sub33032-12060¥15,400

sub33367-12070¥3,510

main33032-12020iAE9#..5F..EFI¥20,000198705-199104

sub33032-12070¥15,400

sub33367-12070¥3,510

main33032-12050iAE92..SPC¥17,300198805-199106

main33032-12060iAE91..5F..EFI¥15,400199104-199106

sub33032-12090¥15,400

main33032-12070iAE9#..5F..(GT,GTAPX,ZS)¥15,400199104-199106

sub33032-12100¥15,400

main33032-17010iAE92..SPC¥16,100198705-198805

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38007iAE9#..5F..(CBR,EFI)¥1,920198705-199106

main90364-39008iAE92..SPC¥2,060198705-198805

main90364-45004iAE92..SPC¥2,560198805-199106

33336GEAR, 5TH

main33036-12010iAE9#..5F..(CBR,EFI)¥13,600198705-198711

sub33036-12011¥13,600

main33036-12011iAE91..5F..CBR¥13,600198711-199105

sub33036-12200¥13,600

main33036-12040iAE92..SPC¥16,800198805-198905

sub33036-12041¥13,600

sub33395-20020¥6,000

main33036-12041iAE92..SPC¥13,600198905-199106

main33036-12050iAE9#..5F..(EFI,EFIS)¥13,400199105-199106

sub33036-12051¥13,500

main33036-32020iAE92..SPC¥15,500198705-198805

sub33036-32H00¥15,500

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-24006iAE9#..5F..(CBR,EFI,EFIS)¥1,410198705-199106

sub90364-24005¥1,410

main90364-33004iAE92..SPC¥1,820198705-198805

main90364-33007iAE92..SPC¥1,540198805-199106

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-25006iAE9#..5F..(CBR,EFI,EFIS)¥80198705-199106

main90560-33004iAE92..SPC¥140198705-199106

33348WASHER, 1ST GEAR THRUST

main33348-12010iAE9#..5F..(EFI,EFIS)¥390198705-199106

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90360-05012iAE9#..5F..(CBR,EFI)¥100198705-199106

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-12030iAE91..5F..CBR¥4,830198705-199104

main33361-12040iAE92..SPC¥6,800198805-199106

main33361-12060iAE9#..5F..(EFI,EFIS)¥6,300199104-199106

main33361-20040iAE92..SPC¥9,200198705-198805

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29018iAE91..5F..EFI¥110198705-199106

main90520-29018iAE91..5F..EFI¥110198808-198905

main90520-29019iAE9#..5F..(EFI,EFIS)¥110198705-199106

main90520-29019iAE91..5F..CBR¥110198808-198905

main90520-29020iAE91..5F..CBR¥110198808-198905

main90520-29020iAE91..5F..EFI¥110198705-199106

main90520-29021iAE9#..5F..(EFI,EFIS)¥110198705-199106

main90520-29021iAE91..5F..CBR¥110198808-198905

main90520-29022iAE91..5F..CBR¥110198808-198905

main90520-29022iAE91..5F..CBR¥110198705-199106

main90520-29023iAE91..5F..CBR¥110198705-199106

main90520-29023iAE91..5F..CBR¥110198808-198905

main90520-37004iAE92..SPC¥170198705-198805

main90520-37005iAE92..SPC¥170198705-198805

main90520-37006iAE92..SPC¥170198705-198805

main90520-37007iAE92..SPC¥170198705-198805

main90520-37008iAE92..SPC¥170198705-198805

main90520-37009iAE92..SPC¥170198705-198805

main90520-37010iAE92..SPC¥170198705-198805

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-12020iAE9#..5F..(CBR,EFI,EFIS)¥4,430198705-199104

main33362-12040iAE9#..5F..(EFI,EFIS)¥5,400199104-199106

sub33362-12050¥5,400

main33362-20020iAE92..SPC¥5,400198705-199007

sub33362-20H00¥5,300

main33362-20021iAE92..SPC¥5,400199007-199106

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iAE91..5F..CBR¥100198705-199106

main90520-27046iAE91..5F..EFI¥100198808-198905

main90520-27047iAE91..5F..CBR¥100198705-199106

main90520-27047iAE91..5F..EFI¥100198808-198905

main90520-27048iAE91..5F..CBR¥100198705-199106

main90520-27048iAE91..5F..EFI¥100198808-198905

main90520-27049iAE9#..5F..EFI¥100198705-199106

main90520-27049iAE91..5F..EFI¥100198808-198905

main90520-27050iAE9#..5F..EFI¥100198705-199106

main90520-27050iAE91..5F..EFI¥100198808-198905

main90520-27051iAE91..5F..CBR¥100198705-199106

main90520-27051iAE91..5F..EFI¥100198808-198905

main90520-34003iAE92..SPC¥170198705-199106

main90520-34004iAE92..SPC¥170198705-199106

main90520-34005iAE92..SPC¥170198705-199106

main90520-34006iAE92..SPC¥170198705-199106

main90520-34007iAE92..SPC¥170198705-199106

main90520-34008iAE92..SPC¥170198705-199106

main90520-34009iAE92..SPC¥170198705-199106

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-12010iAE9#..5F..(CBR,EFI)¥6,600198705-198908

sub33364-12011¥6,700

sub33213-10022¥2,490

main33364-12011iAE9#..5F..(EFI,EFIS)¥6,700198908-199106

sub33364-12H02¥8,100

sub33364-12H03¥8,100

sub33364-12H04¥8,100

main33364-20021iAE92..SPC¥4,750198705-198708

sub33364-20H01¥7,600

main33364-20023iAE92..SPC¥5,500198708-199001

sub33364-20024¥5,400

main33364-20024iAE92..SPC¥5,400199001-199106

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-12021iAE91..5F..CBR¥300198705-199104

main33365-12030iAE92..SPC¥310198805-199106

main33365-20050iAE92..SPC¥380198705-198805

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-12020iAE91..5F..CBR¥230198705-199104

main33366-12040iAE9#..5F..(EFI,EFIS)¥300199104

sub33366-52030¥140

main33366-20021iAE92..SPC¥300198705-199106

33367RING, SYNCHRONIZER, NO.1

main33367-12031iAE9#..5F..EFI¥3,650198705-199104

sub33367-12110¥3,500

main33367-12050iAE9#..5F..(EFI,EFIS)¥3,510199104-199106

main33367-12060iAE91..5F¥3,500199104-199106

main33367-12090iAE92..5F..EFI¥3,500199104-199106

main33367-20030iAE92..SPC¥3,820198705-198805

sub33367-20040¥3,880

sub33367-20060¥3,910

main33367-20040iAE92..SPC¥3,880198805-199106

main33367-20050iAE92..SPC¥3,880198805-199106

sub33367-20060¥3,910

33368RING, SYNCHRONIZER, NO.2

main33368-12020iAE9#..5F..(CBR,EFI,EFIS)¥3,440198705-199104

main33368-12050iAE9#..5F..(EFI,EFIS)¥3,090199104-199106

main33368-20030iAE92..SPC¥3,610198705-199106

sub33368-20040¥3,540

33369RING, SYNCHRONIZER, NO.3

main33369-12020iAE9#..5F..EFI¥3,050198705-199105

sub33369-12030¥3,040

main33369-12030iAE9#..5F..(EFI,EFIS)¥3,040199105-199106

main33369-20010iAE92..SPC¥3,210198705-199106

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12020iAE91..5F..CBR¥220198705-199104

main33371-12040iAE9#..5F..(EFI,EFIS)¥160199104-199106

sub33371-52030¥90

main33371-20020iAE92..SPC¥200198705-199106

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-12020iAE9#..5F..EFI¥230198705-199104

main33391-12040iAE9#..5F..(EFI,EFIS)¥110199104-199106

sub33391-52020¥60

main33391-20010iAE92..SPC¥250198705-199106

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33391-12030iAE9#..5F..EFI¥130198705-199106

main33392-20010iAE92..SPC¥300198705-199106

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-12010iAE91..5F..CBR¥6,500198705-199105

main33393-12030iAE9#..5F..(EFI,EFIS)¥5,100199105-199106

sub33393-12031¥5,100

main33393-20020iAE92..SPC¥6,000198705-199106

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-18002iAE91..5F..CBR¥90198808-198905

main90520-18002iAE9#..5F..(EFI,EFIS)¥90198705-199106

main90520-18003iAE91..5F..CBR¥90198705-199106

main90520-18003iAE91..5F..CBR¥90198808-198905

main90520-18004iAE9#..5F..(CBR,EFI)¥90198705-199106

main90520-18004iAE91..5F..CBR¥90198808-198905

main90520-18006iAE91..5F..EFI¥90198705-199106

main90520-18006iAE91..5F..EFI¥90198808-198905

main90520-18007iAE91..5F..CBR¥90198808-198905

main90520-18007iAE9#..5F..(CBR,EFI)¥90198705-199106

main90520-18008iAE9#..5F..(EFI,EFIS)¥90198705-199106

main90520-18008iAE91..5F..CBR¥90198808-198905

main90520-18009iAE91..5F..CBR¥90198808-198905

main90520-18009iAE91..5F..EFI¥90198705-199106

main90520-27037iAE92..SPC¥180198705-199106

main90520-27038iAE92..SPC¥180198705-199106

main90520-27039iAE92..SPC¥180198705-199106

main90520-27040iAE92..SPC¥180198705-199106

main90520-27041iAE92..SPC¥180198705-199106

main90520-27042iAE92..SPC¥180198705-199106

main90520-27043iAE92..SPC¥180198705-199106

main90520-27044iAE92..SPC¥180198705-199106

main90520-27045iAE92..SPC¥180198705-199106

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-12011iAE91..5F..CBR¥310198705-199106

sub33394-52020¥80

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-12010iAE9#..5F..(CBR,EFI)¥6,200198705-198908

sub33395-12011¥6,700

sub33214-10022¥2,640

main33395-12011iAE9#..5F..(EFI,EFIS)¥6,700198908-199106

main33395-20011iAE92..SPC¥5,500198705-198905

sub33395-20H00¥6,700

sub33395-20H01¥6,700

sub33395-20H02¥6,700

sub33395-20H03¥6,700

sub33395-20H04¥7,300

main33395-20020iAE92..SPC¥6,000198905-199106

sub33395-12020¥5,900

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-12021iAE9#..5F..(CBR,EFI)¥4,440198705-199104

main33402-12031iAE92..SPC¥7,600198805-199106

main33402-12040iAE9#..5F..(EFI,EFIS)¥13,400199104-199106

main33402-20040iAE92..SPC¥12,200198705-198805

33422BGEAR, 4TH DRIVEN

main33422-12010iAE9#..5F..EFI¥10,000198705-199104

sub33422-12050¥10,000

main33422-12030iAE92..SPC¥8,700198805-199106

sub33422-42020¥8,200

main33422-12050iAE9#..5F..(EFI,EFIS)¥10,000199104-199106

sub33422-12090¥8,200

main33422-20020iAE92..SPC¥8,100198705-198805

sub33422-20030¥8,100

33423AGEAR, 3RD DRIVEN

main33423-12010iAE91..5F..CBR¥7,000198705-199106

main33423-12030iAE92..SPC¥13,000198805-199106

sub33423-42020¥11,600

main33423-20010iAE92..SPC¥13,400198705-198805

sub33423-20020¥9,900

33428CGEAR, 5TH DRIVEN

main33428-12010iAE9#..5F..EFI¥6,100198705-199105

sub33428-12140¥6,100

main33428-12040iAE92..SPC¥9,900198805-199106

sub33428-12041¥10,000

main33428-12050iAE9#..5F..(EFI,EFIS)¥9,800199105-199106

sub33428-12110¥8,200

main33428-32020iAE92..SPC¥9,200198705-198805

33431CSPACER, OUTPUT GEAR

main33431-12010iAE91..5F..EFI¥770198705-199106

main33431-20080iAE92..SPC¥1,430198705-199106

33451SHAFT, REVERSE IDLER GEAR

main33451-12021iAE9#..5F..(EFI,EFIS)¥1,070198705-199106

main33451-12031iAE92..SPC¥2,350198805-199004

main33451-12032iAE92..SPC¥2,320199004-199106

sub33451-20070¥1,930

main33451-20020iAE92..SPC¥2,370198705-198710

sub33451-20030¥2,330

sub33462-20050¥360

main33451-20030iAE92..SPC¥2,330198710-198805

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-08127iAE92..SPC¥200198705-198805

sub90105-08150¥110

main90105-08150iAE92..SPC¥110198805-199106

main90109-08097iAE91..5F..CBR¥140198705-199106

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08006iAE9#..5F..(CBR,EFI)¥190198705-198710

sub90430-08010¥70

main90430-08010iAE92..SPC¥70198705-199106

33462WASHER, REVERSE IDLER THRUST

main33462-12010iAE91..5F..CBR¥210198705-199106

main33462-20050iAE92..SPC¥360198710-199106

9161160812

main91611-60812¥140

59 parts on this diagram · 4 diagrams in section
