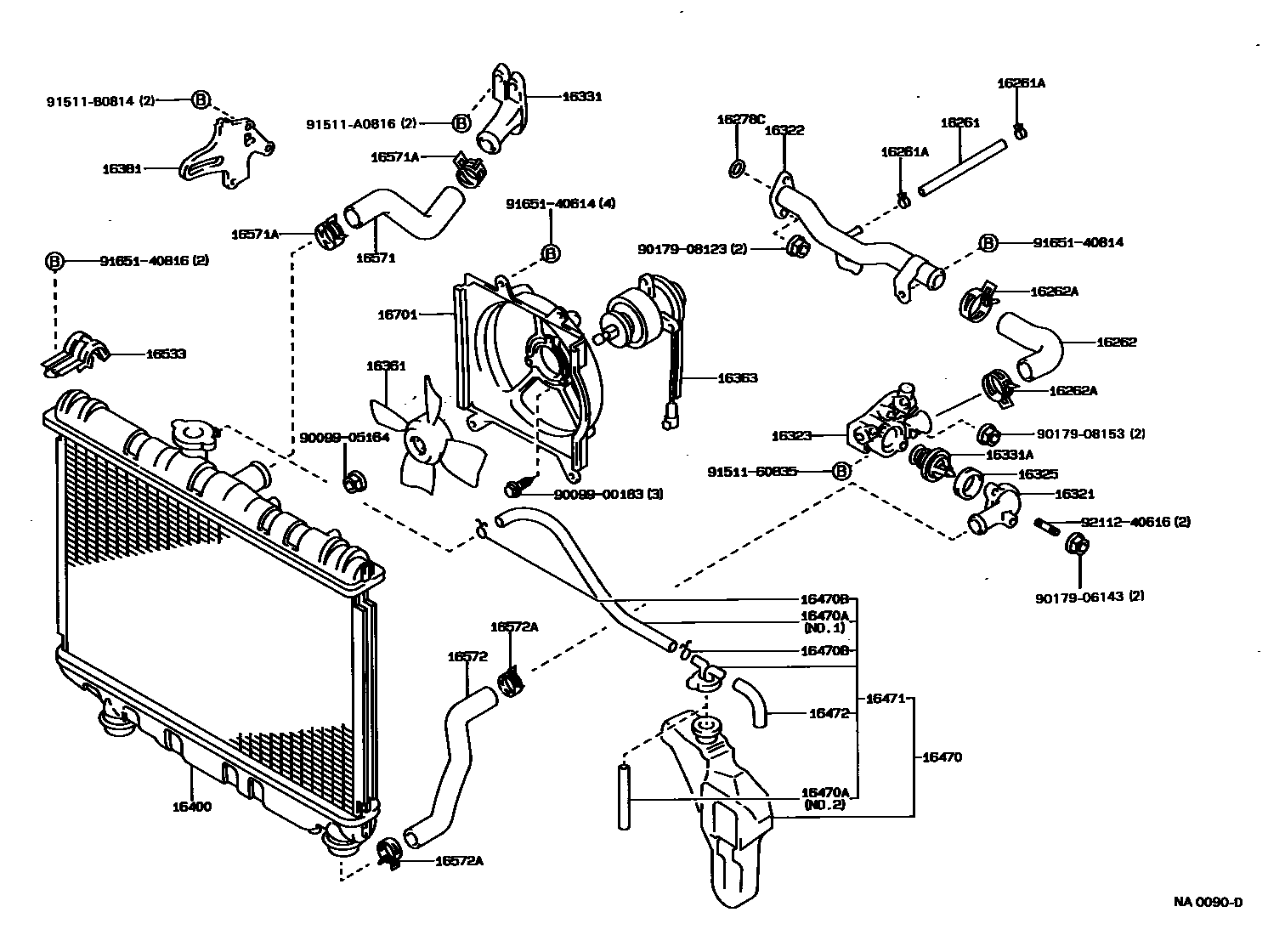

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-15010i4AG#..AE92198705-199106

main99555-10180i5AFE..AE91198705-198905

sub99555-10200

main99555-10200i5AF..AE91198705-198905

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i5AF..AE91;5AFE..AE91..ZI198705-198908

sub96135-51300

main90467-22004i4AG#..AE92198705-199106

sub90467-21010

16262HOSE, WATER INLET

main16262-15010i4AG#..AE92198705-199106

main16262-15030i5AF#..AE91198705-199106

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i4AG#..AE92198705-199106

sub90467-34004

main90467-36001i5AF#..AE91198705-199106

16278PIPE, WATER BY-PASS, NO.2

main16278-16060i4AGE..AE92198705-199106

sub16278-16061

main16322-16020i4AGZE..AE92198705-199106

sub16322-16021

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96711-24035i4AG#,5AF#..AE9#198705-199106

sub96761-24035

16321INLET, WATER

main16321-15020i5AF#..AE91198705-199106

main16321-16030i4AG#..AE92..5F198705-199106

main16321-16040i4AGE..AE92..4FC198705-199106

16322PIPE, WATER INLET

main16322-15020i5AF#..AE91198705-199005

sub16322-15040

main16322-15040i5AF#..AE91199005-199106

16323HOUSING, WATER INLET

main16323-15050i5AFE..AE91..5F198705-198905

main16323-15060i5AF..AE91198705-198805

main16323-15070i5AFE..AE91..4FC198705-198905

main16323-15080i5AF#..AE91198905-199106

main16323-15090i5AF..AE91198805-198910

main16323-16060i4AG#..AE92198705-199106

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i4AG#,5AF#..AE9#198705-199106

sub16325-63011

16331OUTLET, WATER

main16331-15070i5AF..AE91..ATM198705-198908

main16331-15080i5AF..AE91..5F;5AFE,5AFHE..AE91198705-199106

main16331-16080i4AGZE..AE92198705-199106

main16331-16090i4AGE..AE92198705-199106

16331ATHERMOSTAT

main90916-03046i5AF#..AE91198705-199106

main90916-03060i4AG#..AE92198705-199106

sub90916-03090

16361FAN

main16361-15080i4AG#,5AF#..AE9#..5F198705-199106

main16361-64010i4AGE,5AF#..AE9#..ATM198705-199106

16363MOTOR, COOLING FAN

main16363-16030i4AG#,5AF#..AE9#..5F198705-199106

main16363-64010i4AGE,5AF#..AE9#..ATM198705-199106

16381BAR, FAN BELT ADJUSTING

main16381-15060i5AF#..AE91198705-199106

main16381-16050i4AGE..AE92198705-199106

16400RADIATOR ASSY

main16400-11200i5AFHE..AE91..5F198905-199106

sub16400-16330

main16400-15360i5AF,5AFE..AE91..5F198705-199106

main16400-15380i5AF#..AE91..ATM198705-199106

main16400-16130i4AGE..AE92..5F198705-199106

sub16400-16140

main16400-16140i4AGE..AE92..4FC198705-199106

main16400-16220i4AGZE..AE92198705-199106

sub16400-16140

16470TANK ASSY, RADIATOR RESERVE

main16470-15040i5AF#..AE91198705-199106

main16470-16070i4AG#..AE92198705-199106

sub16470-16090

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-16070i4AG#..AE92198705-199106

main90445-12078i4AG#,5AF#..AE9#198705-199106

main90445-12117i5AF#..AE91198705-199106

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AG#,5AF#..AE9#198705-199106

16471CAP SUB-ASSY, RESERVE TANK

main16405-15050i5AF#..AE91198705-199106

main16405-16050i4AG#..AE92198705-199106

sub16405-16070

16472HOSE, BREATHER

main85338-74040i4AG#,5AF#..AE9#198705-199106

16533SUPPORT, RADIATOR, UPPER

main16533-15090i4AG#,5AF#..AE9#198705-199106

16571HOSE, RADIATOR, INLET

main16571-15150i5AF#..AE91198705-199106

main16571-16090i4AGE..AE92198705-199106

main16571-16100i4AGZE..AE92198705-199106

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i4AG#,5AF#..AE9#198705-199106

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-15190i5AF#..AE91198705-199106

main16572-16070i4AG#..AE92198705-199106

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4AG#,5AF#..AE9#198705-199106

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-15220i4AG#,5AF#..AE9#..5F198705-199106

main16711-15230i4AGE,5AF#..AE9#..ATM198705-199106

9009900183

main90099-00183

9009905164

main90099-05164

9017906143

main90179-06143

9017908123

main90179-08123

9017908153

main90179-08153

9151160835

main91511-60835

91511A0816

main91511-A0816

91511B0814

main91511-B0814

9165140614

main91651-40614

9165140814

main91651-40814

9165140816

main91651-40816

9211240616

main92112-40616

39 parts on this diagram · 5 diagrams in section
