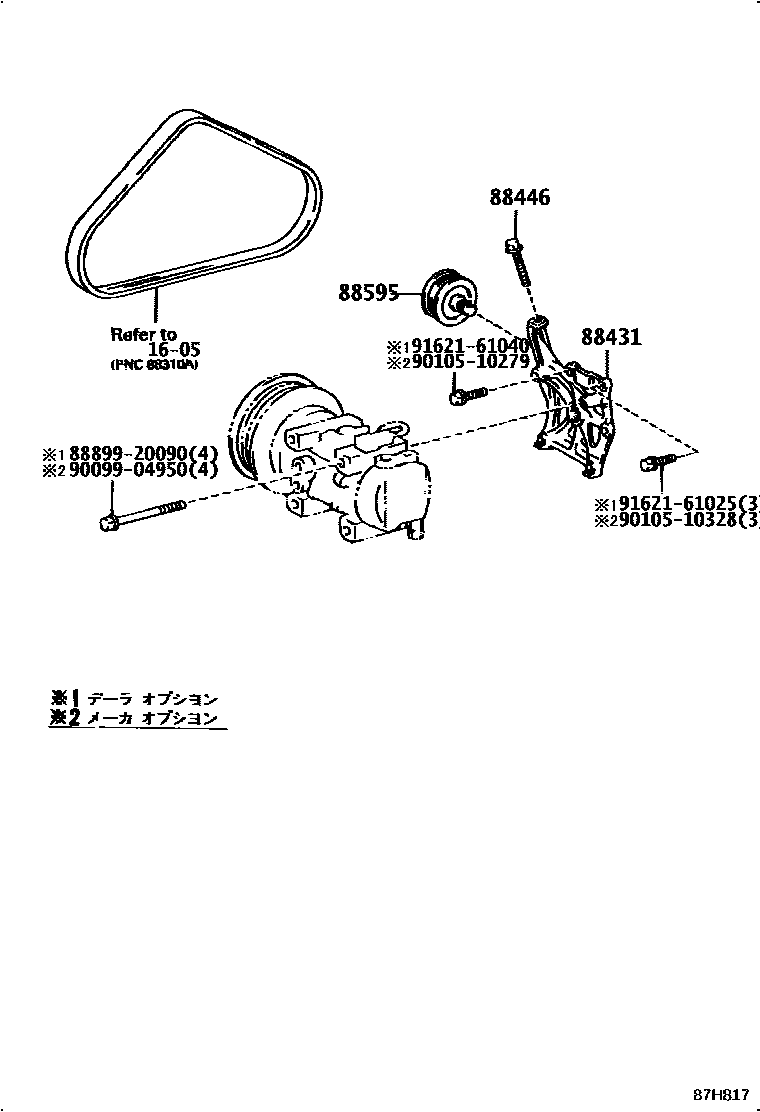

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1 0005 1 0006 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12510iCE11#199505-199812

sub88431-12511

main88431-12511iCE11#199812-200008

main88431-12530iAE111199704-200008

main88431-12540iEE111199505-200008

main88431-12560iAE11#199505-200008

88446BOLT, IDLE PULLEY

main88446-12030iAE11#199505-200008

main88446-35010iAE111199704-200008

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12200iAE111199704-200008

main88440-20160iAE11#199505-199804

main88440-20160iAE110,114..LX,XEVIN199804-200008

main88440-20170iAE110,114..SEVIN,XEVIN199804-200008

8889920090COVER, EVAPORATOR

main88899-20090

9009904950

main90099-04950

9010510279

main90105-10279

9010510328

main90105-10328

9162161025

main91621-61025

9162161040

main91621-61040

10 parts on this diagram · 5 diagrams in section
