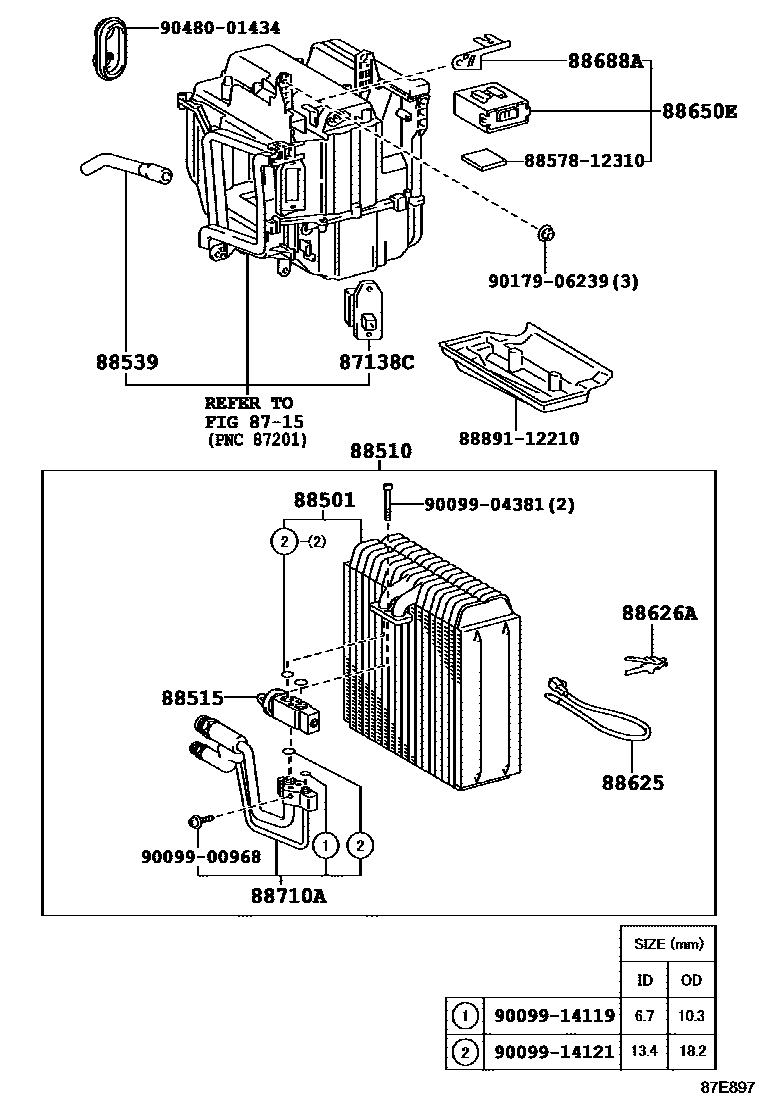

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���-� ������ 0002 1�-� ������

87138CRESISTOR, BLOWER

main87138-12140iAE11#,CE11#,EE111199505-200008

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12391iEE111..(3FC,4F)..XEVIN;AE11#,CE110,114..GT,XEVIN199704-200008

main88501-12391iAE11#,CE11#..SCRU,SEVIN199505-199704

main88501-12430iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

88510UNIT ASSY, COOLER

main88501-12420iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

main88501-12420iCE11#..LX,XEVIN199804-200008

main88510-1A300iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

main88510-1A300iAE11#,CE11#..SCRU,SEVIN199505-199704

main88510-1A480iAE11#,CE11#..GT,SEVIN199505-200008

main88510-1A620iAE110,114,CE11#,EE111..XEVIN200004-200008

main88510-1A620iAE110,114,CE11#,EE111..XEVIN199904-200004

main88510-1A720iAE110,114,CE11#..SEVIN199904-200004

main88510-1A720iAE110,114,CE11#..SEVIN200004-200008

88515VALVE, COOLER EXPANSION

main88515-20100iAE11#,CE11#,EE111199505-200008

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12120iAE11#,CE11#,EE111199505-199704

main88539-12160iAE11#,CE11#..SCRU,SEVIN199505-199704

main88539-12160iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199704-200008

88625THERMISTOR, COOLER, NO.1

main88625-12280iAE11#,CE11#,EE111199505-200008

88626AHOLDER, THERMISTOR

main88626-28010iAE11#,CE11#,EE111199505-200008

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1E040iAE110,114199505-200008

main88650-1E050iEE111199505-200008

main88650-1E060iCE11#199505-199804

main88650-1E090iAE11#..SCRU,SEVIN199505-199704

main88650-1E100iCE11#..SEVIN199505-199704

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-1A090iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

88710ATUBE ASSY, AIR CONDITIONER

main88710-12330iAE11#,CE11#,EE111199505-200008

8857812310PAKING, COOLER AIR DUCT

main88578-12310

8889112210PACKING (FOR COOLER)

main88891-12210

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9017906239

main90179-06239

9048001434

main90480-01434

19 parts on this diagram · 2 diagrams in section
