ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iAE11#,EE111199505-199704

main90987-02012iAE11#,EE111199704-200008

85910FRELAY, COMPUTER (FOR EFI)

main85915-26010iAE11#,EE111199804-200008

main90987-02009iAE11#,EE111199804-200008

main90987-02009iAE11#,EE111199505-199804

89279COVER, ENGINE CONTROL COMPUTER

main89279-12080iAE110,EE111199505-199704

main89279-12100iAE111,114199505-199704

main89279-12120iAE110,EE111199704-200008

main89279-13020iAE111,114199704-200008

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-02020iAE110,114199704-200008

main89420-12070iAE11#,EE111199505-199704

main89420-12070iAE110,114199704-200008

main89420-12140iAE111199704-200008

main89420-12170iEE111199704-200008

main89420-12190iAE110,114199808-200008

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEE111199704-200008

main89422-20010iEE111199505-199704

main89422-22030iEE111199704-200008

main89422-35010iAE11#199505-200008

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE11#,EE111199505-200008

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEE111199704-199807

sub89452-20130

main89452-12090iAE111199704-200008

main89452-16020iEE111199505-199704

main89452-20130iEE111199807-200008

main89452-22090iAE110199505-200008

main89452-33030iAE114199704-200008

89661COMPUTER, ENGINE CONTROL

main89661-1A310iAE114199505-199704

main89661-1A360iAE111..5F199505-199704

main89661-1A370iAE111..4FC199505-199605

sub89661-1A371

main89661-1A371iAE111..4FC199605-199704

main89661-1A390iEE111..4F199505-199704

main89661-1A400iEE111..3FC199505-199704

main89661-1A430iAE110..5F199505-199704

main89661-1A440iAE110..4FC199505-199704

main89661-1A820iEE111199704-200008

main89661-1A860iAE111..6F199704-200008

main89661-1A870iAE111..4FC199704-200008

main89661-1E010iAE110..5F199704-200008

main89661-1E020iAE110..4FC199704-200008

main89661-1E110iAE114..5F199704-199804

main89661-1E120iAE114..4FC199704-199804

main89661-1E250iAE114..5F199804-200008

main89661-1E260iAE114..4FC199804-200008

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12120iAE11#,EE111199505-199704

main89667-12130iAE11#,EE111199704-200008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050iAE11#,EE111199505-199704

main89668-12060iAE11#,EE111199704-200008

9011906390

main90119-06390

9011906539

main90119-06539

9015950222

main90159-50222

9015970003

main90159-70003

9043012221

main90430-12221

9331915010

main93319-15010

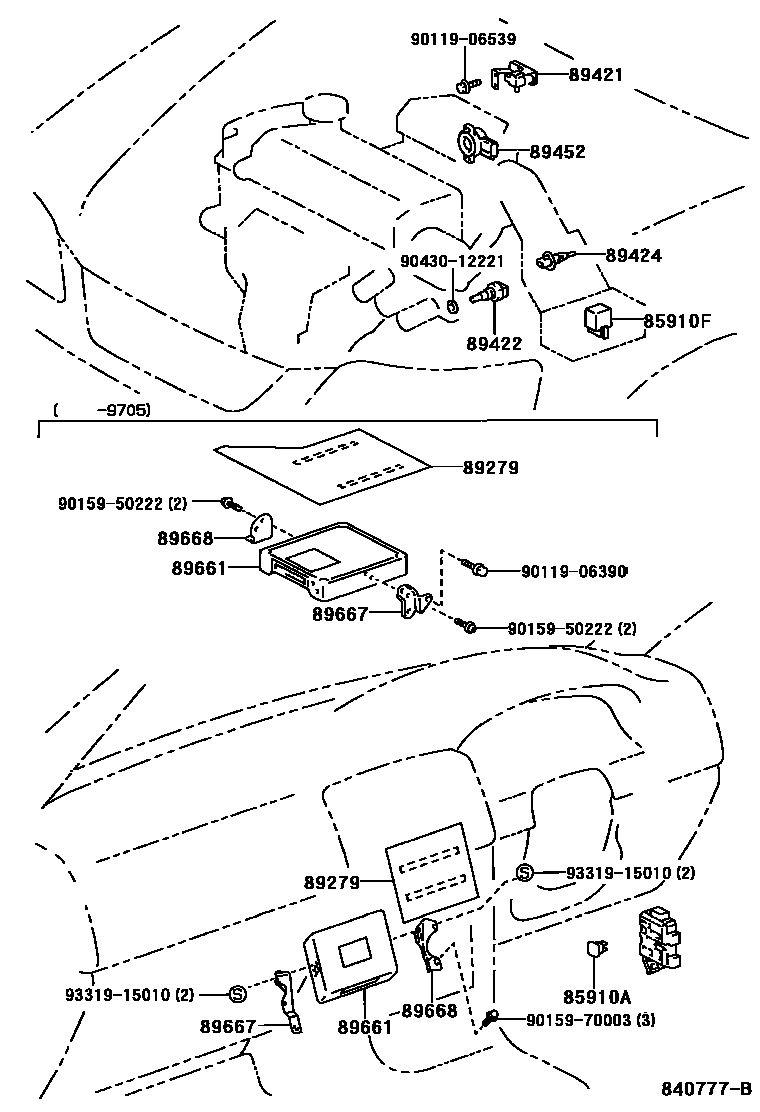

16 parts on this diagram · 3 diagrams in section
