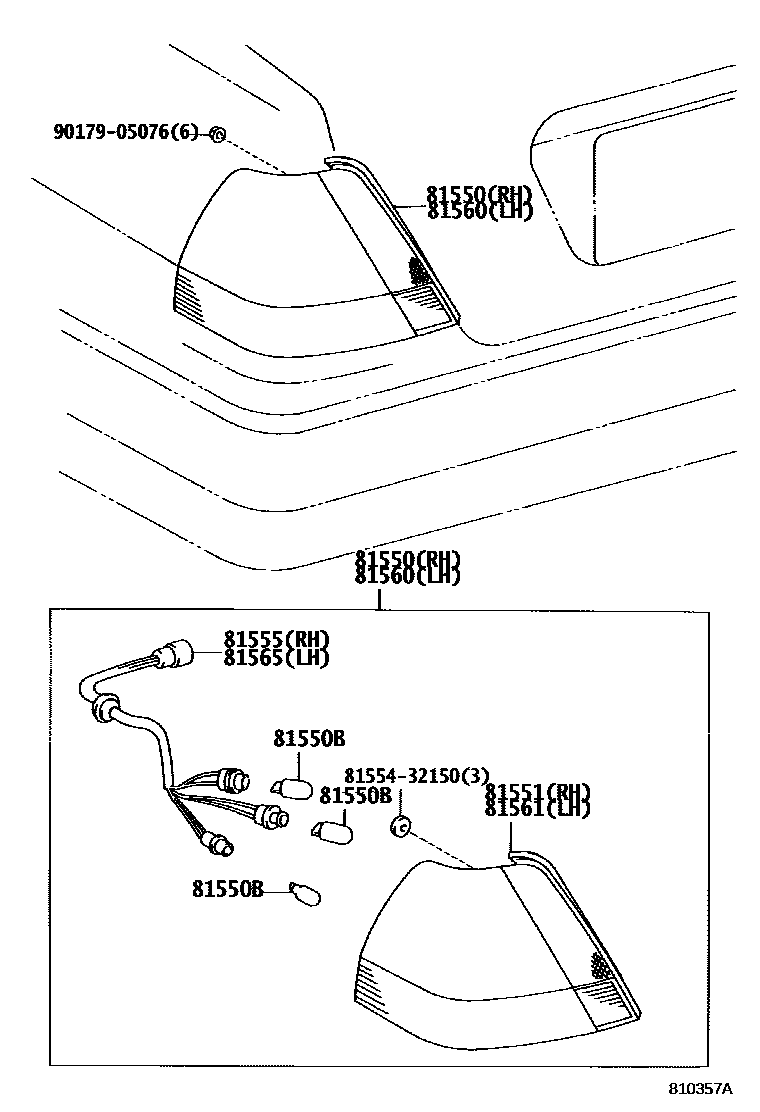

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-1E020iAE11#,CE11#,EE111¥21,000199505-199606

sub81550-1E021¥21,000

main81550-1E021iAE11#,CE11#,EE111¥21,000199606-199704

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039iAE11#,CE11#,EE111¥200199505-200008

sub90981-11059¥200

main90981-13050iAE11#,CE11#,EE111¥220199505-200008

sub90981-13043¥220

main90981-13051iAE11#,CE11#,EE111¥230199505-200008

sub90981-11048¥230

81551LENS, REAR COMBINATION LAMP, RH

main81551-1E020iAE11#,CE11#,EE111¥14,600199505-199606

sub81551-1E021¥14,600

main81551-1E021iAE11#,CE11#,EE111¥14,600199606-199704

main81551-1E110iAE11#,CE11#,EE111¥13,700199704-200008

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1E020iAE11#,CE11#,EE111¥2,470199505-199704

main81555-1E110iAE11#,CE11#,EE111¥2,030199704-200008

81560LAMP ASSY, REAR COMBINATION, LH

main81560-1A870iAE11#,CE11#,EE111¥21,000199505-199606

sub81560-1A871¥21,000

main81560-1A871iAE11#,CE11#,EE111¥21,000199606-199704

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A870iAE11#,CE11#,EE111¥14,600199505-199606

sub81561-1A871¥14,600

main81561-1A871iAE11#,CE11#,EE111¥14,600199606-199704

main81561-1E070iAE11#,CE11#,EE111¥13,700199704-200008

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1E020iAE11#,CE11#,EE111¥2,470199505-199704

main81555-1E110iAE11#,CE11#,EE111¥2,030199704-200008

8155432150GASKET, REAR COMBINATION LAMP BODY, RH

main81554-32150¥300

9017905076

main90179-05076¥90

9 parts on this diagram · 3 diagrams in section
