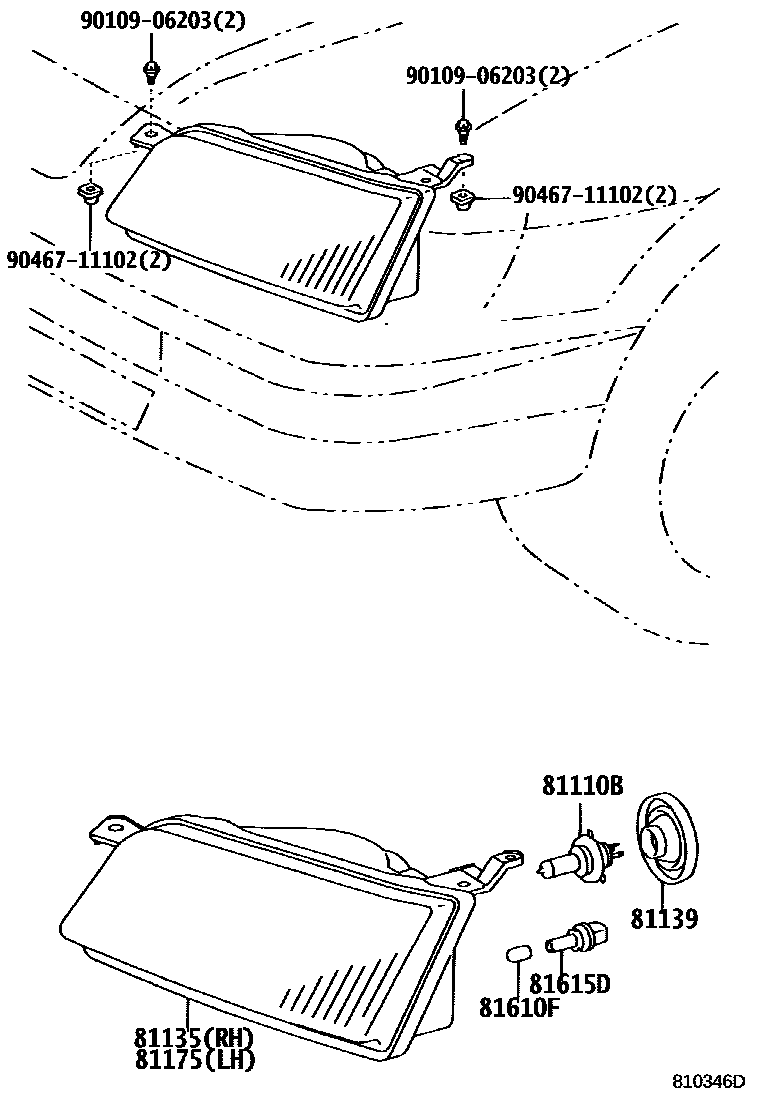

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004iAE11#,CE11#,EE111199505-200008

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-1E360iAE11#,CE11#,EE111199505-199704

main81130-1E470iAE11#,CE11#,EE111199704-200008

81139COVER, HEADLAMP SOCKET

main90075-65002iAE11#,CE11#,EE111199505-200008

81175UNIT ASSY, HEADLAMP, LH

main81170-1A560iAE11#,CE11#,EE111199505-199704

main81170-1E340iAE11#,CE11#,EE111199704-200008

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iAE11#,CE11#,EE111199505-200008

81615DSOCKET, CLEARANCE LAMP

main90075-60004iAE11#,CE11#,EE111199505-200008

9010906203

main90109-06203

9046711102

main90467-11102

8 parts on this diagram · 2 diagrams in section
