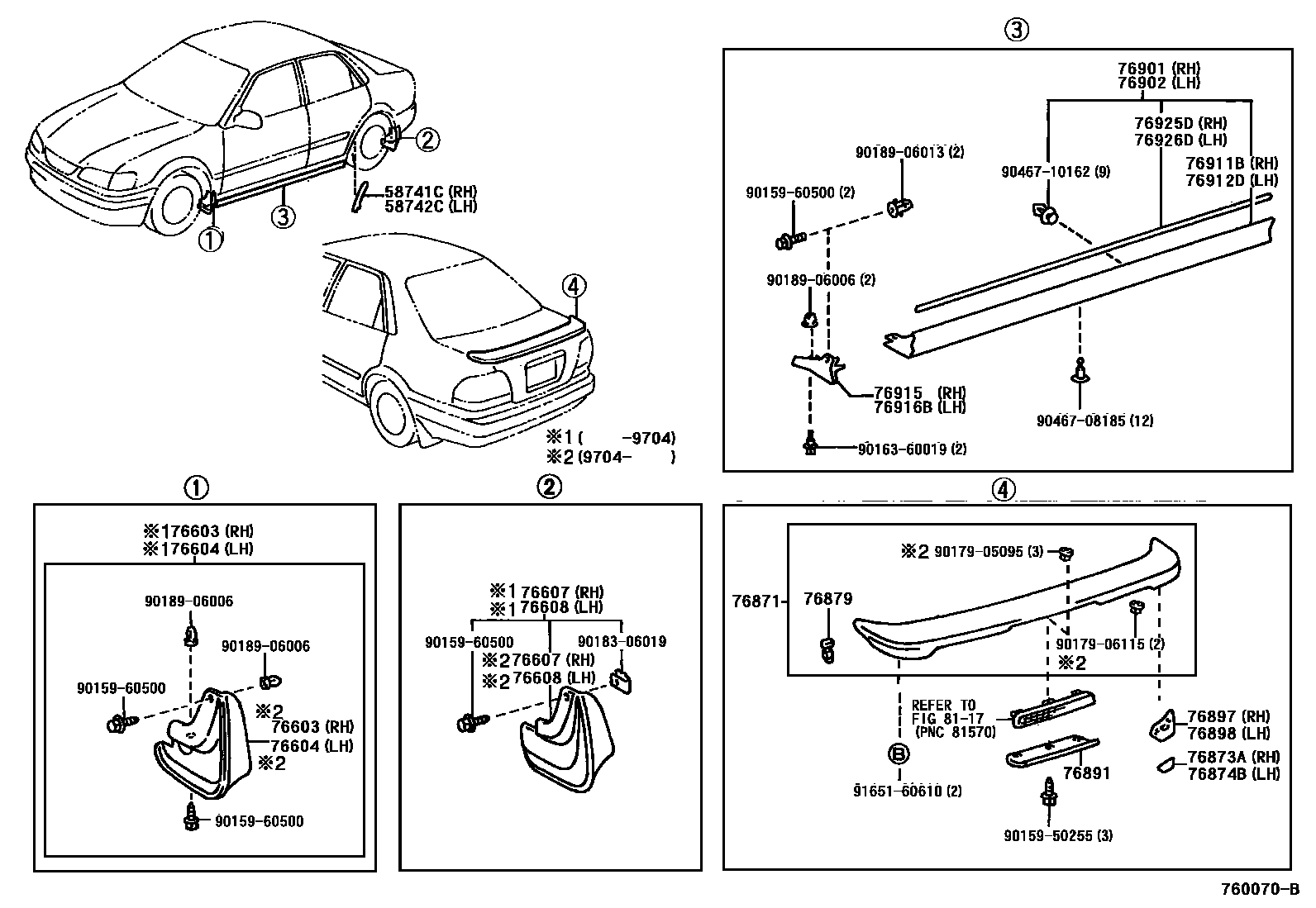

MUDGUARD & SPOILER

58741CPROTECTOR, QUARTER PANEL, RH

main58741-12130iAE111,CE113,116,EE111..4FC,5F,6F199505-200008

58742CPROTECTOR, QUARTER PANEL, LH

main58742-12120iAE111,CE113,116,EE111..4FC,5F,6F199505-200008

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12171-A0iAE110,114,CE11#..SEVIN199704-200008

SUPER WHITE 2,040

main76621-12171-A1iAE110,114,CE11#..SEVIN200004-200008

main76621-12171-A1iAE110,114,CE11#..SEVIN199904-200004

main76621-12171-B0iAE110,114,CE11#..SEVIN199704-200008

WARM GRAY PEARL ME.,1A5

main76621-12171-B4iAE110,114,CE11#..SEVIN199704-200008

SILVER ME,199

main76621-12171-B6iAE110,114,CE11#..SEVIN199704-200008

DK.GRAY ME.,1B4

main76621-12171-B7iAE110,114,CE11#..SEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main76621-12171-D0iAE110,114,CE11#..SEVIN199704-199804

RED MM,3K4

main76621-12171-G2iAE110,114,CE11#..SEVIN199704-200008

DK.GREEN M.M.,6P2

main76621-12171-J0iAE110,114,CE11#..SEVIN199704-200008

DK.BLUE M.M.,8L2

main76621-12181iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

main76621-19275-A0iAE110,114,CE11#..SEVIN199505-199609

SUPER WHITE 2,040

sub76621-19276

main76621-19275-B0iAE110,114,CE11#..SEVIN199505-199609

WARM GRAY PEARL ME.,1A5

sub76621-19276

main76621-19275-B1iAE110,114,CE11#..SEVIN199505-199609

BL.GRAY ME,182

sub76621-19276

main76621-19275-B4iAE110,114,CE11#..SEVIN199605-199609

SILVER ME,199

sub76621-19276

main76621-19275-D0iAE110,114,CE11#..SEVIN199505-199609

RED MM,3K4

sub76621-19276

main76621-19275-G0iAE110,114,CE11#..SEVIN199505-199609

DK GREEN MICA,6M1

sub76621-19276

main76621-19275-G1iAE110,114,CE11#..SEVIN199505-199605

MD.GREEN M.M.,6P0

sub76621-19276

main76621-19275-J0iAE110,114,CE11#..SEVIN199505-199609

DK.BLUE M.M.,8L2

sub76621-19276

main76621-19276-A0iAE110,114,CE11#..SEVIN199609-199704

SUPER WHITE 2,040

sub76621-12171

main76621-19276-B0iAE110,114,CE11#..SEVIN199609-199704

WARM GRAY PEARL ME.,1A5

sub76621-12171

main76621-19276-B1iAE110,114,CE11#..SEVIN199609-199705

BL.GRAY ME,182

sub76621-12171

main76621-19276-B4iAE110,114,CE11#..SEVIN199609-199704

SILVER ME,199

sub76621-12171

main76621-19276-D0iAE110,114,CE11#..SEVIN199609-199704

RED MM,3K4

sub76621-12171

main76621-19276-G0iAE110,114,CE11#..SEVIN199609-199705

DK GREEN MICA,6M1

sub76621-12171

main76621-19276-J0iAE110,114,CE11#..SEVIN199609-199704

DK.BLUE M.M.,8L2

sub76621-12171

main76621-19285iAE11#,CE11#,EE111..LX,SCRU,XEVIN199505-199609

sub76621-19286

main76621-19286iAE11#,CE11#,EE111..LX,SCRU,XEVIN199609-199704

sub76621-12181

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12171-A0iAE110,114,CE11#..SEVIN199704-200008

SUPER WHITE 2,040

main76622-12171-A1iAE110,114,CE11#..SEVIN199904-200004

main76622-12171-A1iAE110,114,CE11#..SEVIN200004-200008

main76622-12171-B0iAE110,114,CE11#..SEVIN199704-200008

WARM GRAY PEARL ME.,1A5

main76622-12171-B4iAE110,114,CE11#..SEVIN199704-200008

SILVER ME,199

main76622-12171-B6iAE110,114,CE11#..SEVIN199704-200008

DK.GRAY ME.,1B4

main76622-12171-B7iAE110,114,CE11#..SEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main76622-12171-D0iAE110,114,CE11#..SEVIN199704-199804

RED MM,3K4

main76622-12171-G2iAE110,114,CE11#..SEVIN199704-200008

DK.GREEN M.M.,6P2

main76622-12171-J0iAE110,114,CE11#..SEVIN199704-200008

DK.BLUE M.M.,8L2

main76622-12181iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

main76622-19275-A0iAE110,114,CE11#..SEVIN199505-199609

SUPER WHITE 2,040

sub76622-19276

main76622-19275-B0iAE110,114,CE11#..SEVIN199505-199609

WARM GRAY PEARL ME.,1A5

sub76622-19276

main76622-19275-B1iAE110,114,CE11#..SEVIN199505-199609

BL.GRAY ME,182

sub76622-19276

main76622-19275-B4iAE110,114,CE11#..SEVIN199605-199609

SILVER ME,199

sub76622-19276

main76622-19275-D0iAE110,114,CE11#..SEVIN199505-199609

RED MM,3K4

sub76622-19276

main76622-19275-G0iAE110,114,CE11#..SEVIN199505-199609

DK GREEN MICA,6M1

sub76622-19276

main76622-19275-G1iAE110,114,CE11#..SEVIN199505-199605

MD.GREEN M.M.,6P0

sub76622-19276

main76622-19275-J0iAE110,114,CE11#..SEVIN199505-199609

DK.BLUE M.M.,8L2

sub76622-19276

main76622-19276-A0iAE110,114,CE11#..SEVIN199609-199704

SUPER WHITE 2,040

sub76622-12171

main76622-19276-B0iAE110,114,CE11#..SEVIN199609-199704

WARM GRAY PEARL ME.,1A5

sub76622-12171

main76622-19276-B1iAE110,114,CE11#..SEVIN199609-199705

BL.GRAY ME,182

sub76622-12171

main76622-19276-B4iAE110,114,CE11#..SEVIN199609-199704

SILVER ME,199

sub76622-12171

main76622-19276-D0iAE110,114,CE11#..SEVIN199609-199704

RED MM,3K4

sub76622-12171

main76622-19276-G0iAE110,114,CE11#..SEVIN199609-199705

DK GREEN MICA,6M1

sub76622-12171

main76622-19276-J0iAE110,114,CE11#..SEVIN199609-199704

DK.BLUE M.M.,8L2

sub76622-12171

main76622-19285iAE11#,CE11#,EE111..LX,SCRU,XEVIN199505-199609

sub76622-19286

main76622-19286iAE11#,CE11#,EE111..LX,SCRU,XEVIN199609-199704

sub76622-12181

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-12440iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

main76625-12470-A0iAE11#,CE11#..GT,SEVIN199704-200008

SUPER WHITE 2,040

main76625-12470-A1iAE110,114,CE11#..SEVIN200004-200008

main76625-12470-A1iAE110,114,CE11#..SEVIN199904-200004

main76625-12470-B1iAE11#,CE11#..GT,SEVIN199704-200008

SILVER ME,199

main76625-12470-B2iAE11#,CE11#..GT,SEVIN199704-200008

WARM GRAY PEARL ME.,1A5

main76625-12470-B3iAE11#,CE11#..GT,SEVIN199704-200008

DK.GRAY ME.,1B4

main76625-12470-B5iAE11#,CE11#..GT,SEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main76625-12470-D0iAE11#,CE11#..GT,SEVIN199704-199804

RED MM,3K4

main76625-12470-G0iAE11#,CE11#..GT,SEVIN199704-200008

DK.GREEN M.M.,6P2

main76625-12470-J0iAE11#,CE11#..GT,SEVIN199704-200008

DK.BLUE M.M.,8L2

main76625-19545iAE11#,CE11#,EE111..LX,SCRU,XEVIN199505-199704

main76625-19555-A0iAE110,114,CE11#..SEVIN199505-199704

SUPER WHITE 2,040

main76625-19555-B0iAE110,114,CE11#..SEVIN199505-199704

WARM GRAY PEARL MICA,1A5

main76625-19555-B1iAE110,114,CE11#..SEVIN199505-199705

BLUISH GRAY ME.,182

main76625-19555-B2iAE110,114,CE11#..SEVIN199605-199704

SILVER ME,199

main76625-19555-D0iAE110,114,CE11#..SEVIN199505-199704

RED MICA,3K4

main76625-19555-G0iAE110,114,CE11#..SEVIN199505-199705

DK. GREEN MICA,6M1

main76625-19555-G1iAE110,114,CE11#..SEVIN199505-199605

MD. GREEN M.M,6P0

main76625-19555-J0iAE110,114,CE11#..SEVIN199505-199704

DK. BLUE M.M,8L2

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-12430iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

main76626-12470-A0iAE11#,CE11#..GT,SEVIN199704-200008

SUPER WHITE 2,040

main76626-12470-A1iAE110,114,CE11#..SEVIN199904-200004

main76626-12470-A1iAE110,114,CE11#..SEVIN200004-200008

main76626-12470-B1iAE11#,CE11#..GT,SEVIN199704-200008

SILVER ME,199

main76626-12470-B2iAE11#,CE11#..GT,SEVIN199704-200008

WARM GRAY PEARL ME.,1A5

main76626-12470-B3iAE11#,CE11#..GT,SEVIN199704-200008

DK.GRAY ME.,1B4

main76626-12470-B5iAE11#,CE11#..GT,SEVIN199804-200008

CRYSTAL SILVER PEARL,1C1

main76626-12470-D0iAE11#,CE11#..GT,SEVIN199704-199804

RED MM,3K4

main76626-12470-G0iAE11#,CE11#..GT,SEVIN199704-200008

DK.GREEN M.M.,6P2

main76626-12470-J0iAE11#,CE11#..GT,SEVIN199704-200008

DK.BLUE M.M.,8L2

main76626-19545iAE11#,CE11#,EE111..LX,SCRU,XEVIN199505-199704

main76626-19555-A0iAE110,114,CE11#..SEVIN199505-199704

SUPER WHITE 2,040

main76626-19555-B0iAE110,114,CE11#..SEVIN199505-199704

WARM GRAY PEARL MICA,1A5

main76626-19555-B1iAE110,114,CE11#..SEVIN199505-199705

BLUISH GRAY ME.,182

main76626-19555-B2iAE110,114,CE11#..SEVIN199605-199704

SILVER ME,199

main76626-19555-D0iAE110,114,CE11#..SEVIN199505-199704

RED MICA,3K4

main76626-19555-G0iAE110,114,CE11#..SEVIN199505-199705

DK. GREEN MICA,6M1

main76626-19555-G1iAE110,114,CE11#..SEVIN199505-199605

MD. GREEN M.M,6P0

main76626-19555-J0iAE110,114,CE11#..SEVIN199505-199704

DK. BLUE M.M,8L2

76871SPOILER, REAR

main76871-12903iAE11#,CE11#..SCRU,SEVIN199505-199704

main76871-12907iAE11#,CE11#..GT,SEVIN199704-200008

76873APROTECTOR, REAR SPOILER, RH

main76783-12020iAE11#,CE11#..SCRU,SEVIN199505-199704

main76783-12050iAE11#,CE11#..GT,SEVIN199704-200008

76874BPROTECTOR, REAR SPOILER, LH

main76783-12020iAE11#,CE11#..SCRU,SEVIN199505-199704

main76783-12050iAE11#,CE11#..GT,SEVIN199704-200008

76879CLIP, REAR SPOILER, NO.1

main76879-12040iAE11#,CE11#..GT,SEVIN199505-200008

76891SPOILER, REAR NO.1

main76891-12110iAE11#,CE11#..SCRU,SEVIN199505-200008

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-12080iAE11#,CE11#..SCRU,SEVIN199505-199704

main76897-12110iAE11#,CE11#..GT,SEVIN199704-200008

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-12080iAE11#,CE11#..SCRU,SEVIN199505-199704

main76898-12110iAE11#,CE11#..GT,SEVIN199704-200008

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-12060-A2iAE111199704-200008

SUPER WHITE 2,040

main76901-12060-B4iAE111199704-200008

WARM GRAY PEARL M.,1A5

main76901-12060-B5iAE111199704-200008

DARK GRAY ME.,1B4

main76901-12060-B6iAE111199704-200008

SILVER ME.,199

main76901-12060-B8iAE111199804-200008

CRYSTAL SILVER PEARL,1C1

main76901-12060-D1iAE111199704-199804

RED MICA ME.,3K4

main76901-12060-G1iAE111199704-200008

GREEN MICA M.,6P2

main76901-12060-J1iAE111199704-200008

DARK BLUE MICA M.,8L2

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-12060-A2iAE111199704-200008

SUPER WHITE 2,040

main76902-12060-B4iAE111199704-200008

WARM GRAY PEARL M.,1A5

main76902-12060-B5iAE111199704-200008

DARK GRAY ME.,1B4

main76902-12060-B6iAE111199704-200008

SILVER ME.,199

main76902-12060-B8iAE111199804-200008

CRYSTAL SILVER PEARL,1C1

main76902-12060-D1iAE111199704-199804

RED MICA ME.,3K4

main76902-12060-G1iAE111199704-200008

GREEN MICA M.,6P2

main76902-12060-J1iAE111199704-200008

DARK BLUE MICA M.,8L2

76911BMUDGUARD, SIDE, RH

main76911-12901iAE111199809-200008

76912DMUDGUARD, SIDE, LH

main76912-12901iAE111199809-200008

76915MUDGUARD, REAR DOOR, RH

main76915-12090iAE111199704-200008

76916BMUDGUARD, REAR DOOR, LH

main76916-12090iAE111199704-200008

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-12050-B0iAE111199704-199804

GRAY,040 ,1A5 ,199

main76925-12050-B0iAE111199804-200008

GRAY,040 ,1A5 ,1C1 ,199

main76925-12050-C0iAE111199704-199804

BLACK,1B4 ,3K4 ,6P2 ,8L2

main76925-12050-C0iAE111199804-200008

BLACK,1B4 ,6P2 ,8L2

76926DPROTECTOR, SIDE MUDGUARD, LH

main76925-12050-B0iAE111199704-199804

GRAY,040 ,1A5 ,199

main76925-12050-B0iAE111199804-200008

GRAY,040 ,1A5 ,1C1 ,199

main76925-12050-C0iAE111199804-200008

BLACK,1B4 ,6P2 ,8L2

main76925-12050-C0iAE111199704-199804

BLACK,1B4 ,3K4 ,6P2 ,8L2

8117

9015950255

main90159-50255

9015960500

main90159-60500

9016360019

main90163-60019

9017905095

main90179-05095

9017906115

main90179-06115

9018306019

main90183-06019

9018906006

main90189-06006

9018906013

main90189-06013

9046708185

main90467-08185

9046710162

main90467-10162

9165160610

main91651-60610

33 parts on this diagram · 1 diagram in section
