BATTERY CARRIER

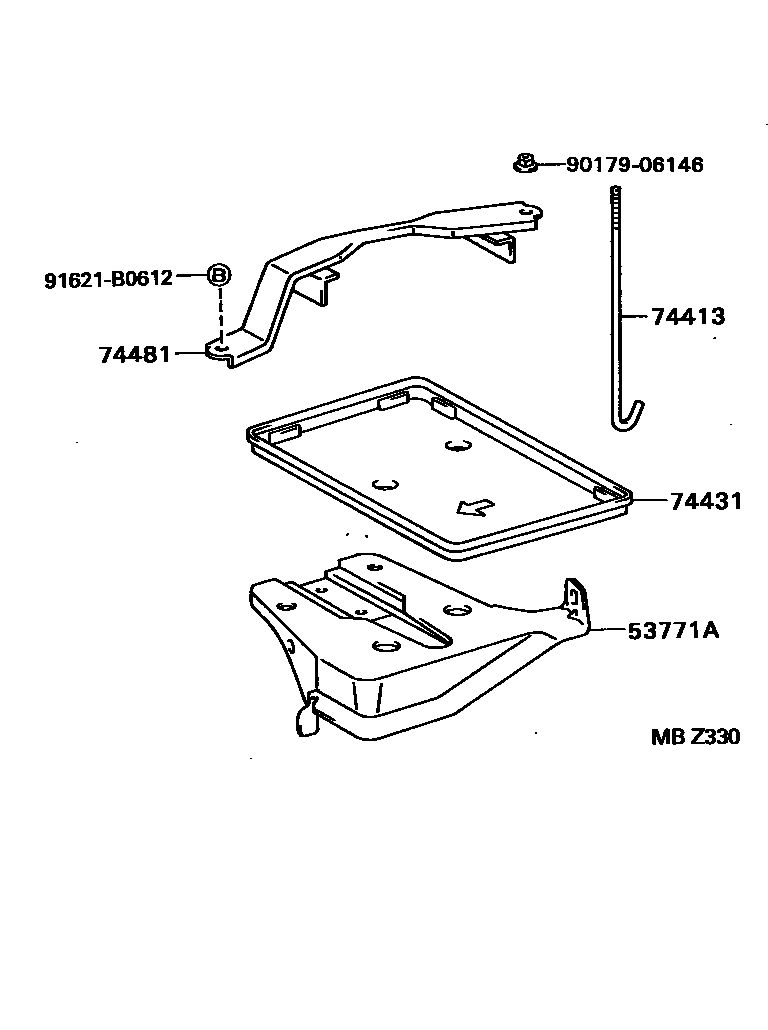

Parts diagram
53771ASUPPORT, BATTERY CARRIER
main53706-12020i199505-199704
main53706-12030i199704-200008
main53771-12120i199505-199704
main53771-13010i199704-200008
74413BOLT, BATTERY CLAMP
main74451-12061i199505-200008
main74451-12081i199505-199704
main74451-12090i199704-200008
74431TRAY, BATTERY
main74431-12020i199505-200008
main74431-12040i199505-200008
main74431-12050i199804-200008
sub74431-12051
main74431-12060i199505-200008
main74431-12060i199704-200008
74481CLAMP, BATTERY HOLD DOWN
main74404-12290i199505-200008
main74404-12310i199505-199704
main74404-12330i199505-200008
main74404-12330i199704-200008
main74404-12360i199704-199710
sub74404-12361
main74404-12361i199710-200008
9017906146
main90179-06146
91621B0612
main91621-B0612

6 parts on this diagram · 1 diagram in section
