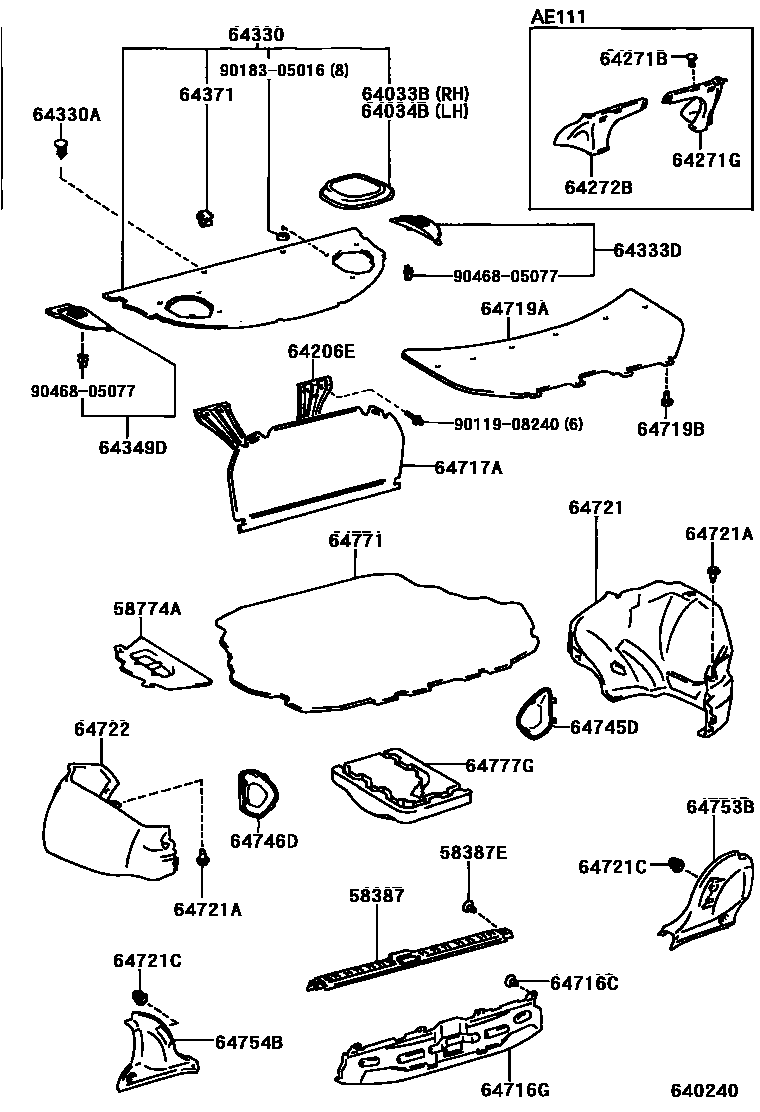

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12040-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-200008

SHADOW GRAY,TRIM1#

main58387-12040-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

main58387-12040-B0iAE111199704-199804

SHADOW GRAY,TRIM11,14

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iAE111199505-200008

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iAE111199505-199704

BLACK,TRIM1#,4#

sub90467-05096

main90467-05096-22iAE111199704-199804

BLACK,TRIM11,14

sub90467-05096

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-12110-B0iAE11#,CE11#,EE111..GT,LX199505-200008

SHADOW GRAY,TRIM1#

main58774-12110-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

main58774-12110-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM11,14

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-12160-B0iAE11#,CE11#..SCRU,SEVIN199505-200008

SHADOW GRAY,TRIM1#

main64383-12160-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

main64383-12160-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main64383-12160-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main64383-12160-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-12080-B0iAE11#,CE11#..SCRU,SEVIN199505-200008

SHADOW GRAY,TRIM1#

sub64384-12080

main64384-12080-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

sub64384-12080

main64384-12080-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

sub64384-12080

main64384-12080-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

sub64384-12080

main64384-12080-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

sub64384-12080

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-12010iAE110,114,CE11#,EE111199704-200008

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-B1iAE111199505-200008

SHADOW GRAY,TRIM1#

sub90467-05020

sub90467-05027

64271GBOARD, ROOM PARTITION, RH

main64271-12150-B0iAE111199505-199704

SHADOW GRAY,TRIM1#

main64271-12170-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

64272BBOARD, ROOM PARTITION, LH

main64272-12090-B0iAE111199505-199704

SHADOW GRAY,TRIM1#

main64272-12100-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A720-B0iAE110,114,CE11#,EE111199505-199704

main64330-1A720-B1iAE110,114,CE11#,EE111..LX,XEVIN199804-200008

main64330-1A720-B1iAE110,114,CE11#,EE111..XEVIN199704-199804

main64330-1A720-B2iAE110,114,CE11#,EE111..LX199704-199804

main64330-1A720-B2iAE110,114,CE11#,EE111..LX199704-199804

main64330-1A720-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

main64330-1A730-B0iAE111199505-200008

main64330-1A730-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199804-200008

main64330-1A730-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

main64330-1A730-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

main64330-1A730-E0iAE110,114,CE11#..SEVIN199505-199704

main64330-1A740-B0iAE110,114,CE11#..SEVIN199505-199704

SHADOW GRAY,TRIM1#

main64330-1A740-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main64330-1A750-B0iAE111199505-200008

main64330-1A750-B1iAE110,114,CE11#..SEVIN199804-200008

main64330-1A750-B1iAE110,114,CE11#..SEVIN199704-199804

main64330-1A750-B2iAE110,114,CE11#..SEVIN199704-199804

main64330-1A750-E0iAE110,114,CE11#..SEVIN199505-199704

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90904-67023-B0iAE111199505-200008

SHADOW GRAY,TRIM1#

sub90904-67023

main90904-67023-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199708

SHADOW GRAY,TRIM11,14

sub90904-67023

main90904-67023-B1iAE110,114,CE11#,EE111..LX199708-199804

DK.CHARCOAL,TRIM11,14

sub90904-67023

main90904-67023-B1iAE110,114,CE11#,EE111..LX199708-200008

DK.CHARCOAL,TRIM1#

sub90904-67023

main90904-67023-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

sub90904-67023

64333DCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-12100-B0iAE111199505-200008

SHADOW GRAY,TRIM1#

sub64333-12100

main64333-12100-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

sub64333-12100

main64333-12100-B1iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

sub64333-12100

main64333-12100-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

sub64333-12100

main64333-12100-B2iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

sub64333-12100

main64333-12100-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

sub64333-12100

64349DCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-12060-B0iAE11#,CE11#,EE111199505-200008

SHADOW GRAY,TRIM1#

main64349-12060-B1iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main64349-12060-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main64349-12060-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main64349-12060-B2iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main64349-12060-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

64371RETAINER, PACKAGE TRAY TRIM

main64371-16010iAE11#,CE11#,EE111199505-200008

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05096-22iAE111199505-200008

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iAE111199505-199704

BLACK,TRIM1#,4#

sub90467-05096

main90467-05096-22iAE111199704-199804

BLACK,TRIM11,14

sub90467-05096

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12080-B0iAE110,114,CE11#,EE111..LX199505-199704

SHADOW GRAY,TRIM1#

main64717-12080-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

main64717-12090-C0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-200008

BLACK,TRIM1#

main64717-12090-C0iAE110,114,CE11#,EE111..LX199704-199804

BLACK,TRIM11,14

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12060-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

main64719-12060-B0iAE11#,CE11#,EE111..LX,SCRU199505-199704

main64719-12100-B0iAE11#,CE11#,EE111..GT,LX199704-200008

SHADOW GRAY,TRIM1#

main64719-12100-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM11,14

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22iAE11#,CE11#,EE111..GT,LX199704-200008

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

sub90467-05096

main90467-05096-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

sub90467-05096

main90467-05096-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

BLACK,TRIM11,14

sub90467-05096

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12160-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

sub64721-12170

main64721-12160-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#

sub64721-12170

main64721-12160-B0iEE111..(3FC,4F)..XEVIN;AE110,114,CE110,114..SEVIN,XEVIN199704-200008

SHADOW GRAY,TRIM10,11

sub64721-12170

main64721-12170-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-200008

SHADOW GRAY,TRIM1#

main64721-12170-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM11,14

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

BLACK,TRIM1#,4#

sub90467-05096

main90467-05096-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-200008

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

BLACK,TRIM11,14

sub90467-05096

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-05131-C0iAE111199505-200008

BLACK,TRIM1#

main90467-05131-C0iAE111199505-199704

BLACK,TRIM1#,4#

main90467-05131-C0iAE111199704-199804

BLACK,TRIM11,14

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12200-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

sub64722-12210

main64722-12200-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#

sub64722-12210

main64722-12210-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM11,14

main64722-12210-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-200008

SHADOW GRAY,TRIM1#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12110iAE11#,CE11#,EE111199704-200008

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-12130iAE11#,CE11#,EE111199704-200008

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-12010-B0iAE111199505-200008

SHADOW GRAY,TRIM1#

main64753-12010-B0iAE111199505-199704

SHADOW GRAY,TRIM1#,4#

main64753-12010-B0iAE111199704-199804

SHADOW GRAY,TRIM11,14

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-12010-B0iAE111199505-200008

SHADOW GRAY,TRIM1#

main64754-12010-B0iAE111199505-199704

SHADOW GRAY,TRIM1#,4#

main64754-12010-B0iAE111199704-199804

SHADOW GRAY,TRIM11,14

64771COVER, SPARE WHEEL

main64771-12160-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

main64771-12160-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-200008

SHADOW GRAY,TRIM1#

main64771-12160-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM11,14

64777GCUSHION, SPARE WHEEL

main64777-12030-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#,4#

sub64777-12030

main64777-12030-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-200008

SHADOW GRAY,TRIM1#

sub64777-12030

main64777-12030-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM11,14

sub64777-12030

9011908240

main90119-08240

9018305016

main90183-05016

9046805077

main90468-05077

31 parts on this diagram · 1 diagram in section
