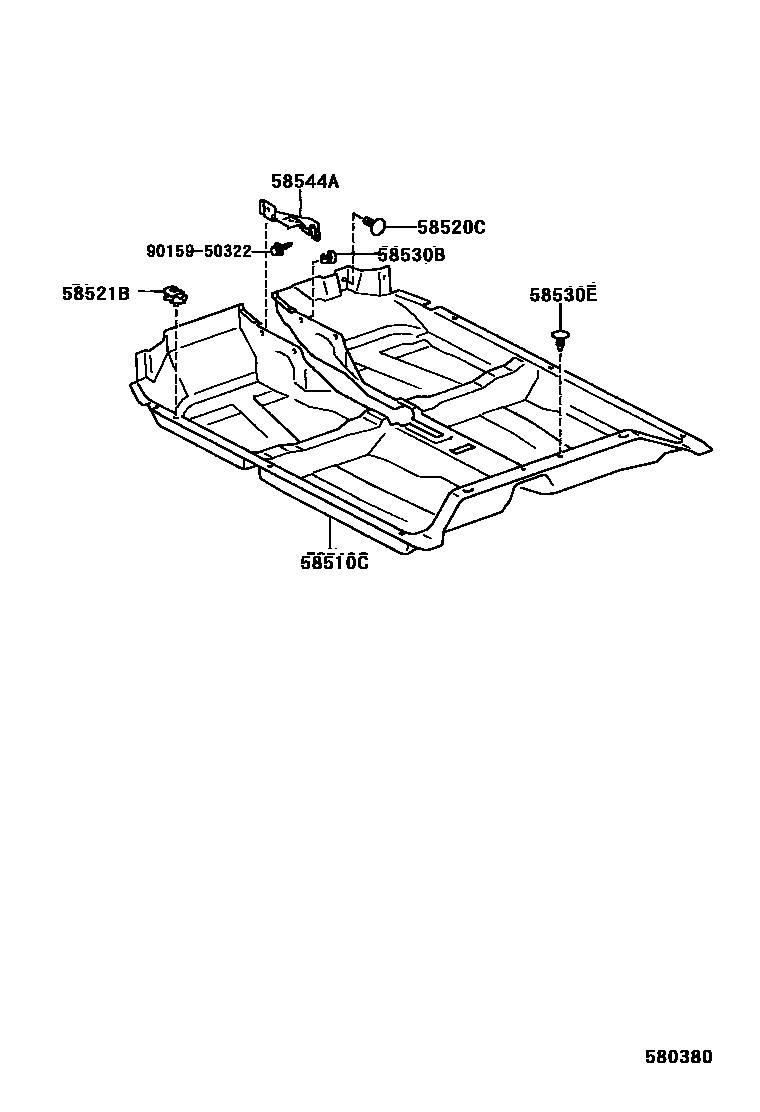

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1E370-B0iAE110,111,CE110..SCRU,SEVIN199505-199704

main58510-1E370-E2iAE110,CE110..SEVIN199505-199704

main58510-1E440-B0iAE110,111,CE110..SCRU,SEVIN199505-199704

SHADOW GRAY,TRIM1#

sub58510-1E460

main58510-1E440-E2iAE110,CE110..SEVIN199505-199704

OAK,TRIM4#

sub58510-1E460

main58510-1E450-B0iAE110,CE110,EE111..LX,XEVIN199505-199704

main58510-1E450-E2iAE110,CE110,EE111..XEVIN199505-199704

main58510-1E460-B0iAE110,CE110,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

sub58510-1E460

main58510-1E460-E2iAE110,CE110,EE111..XEVIN199505-199704

OAK,TRIM4#

sub58510-1E460

main58510-1E480-B0iAE114,CE114199505-199704

main58510-1E480-E2iAE114,CE114..SEVIN,XEVIN199505-199704

main58510-1E490-B0iAE114,CE114199505-199704

SHADOW GRAY,TRIM1#

main58510-1E490-E2iAE114,CE114..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main58510-1E830-B0iAE110,CE110,EE111..LX199704-199804

SHADOW GRAY,TRIM1#

main58510-1E830-B0iAE110,CE110,EE111..XEVIN199704-199804

SHADOW GRAY,TRIM11

main58510-1E830-B1iAE110,CE113,EE111..LX,XEVIN199804-200008

DARK CHARCOAL,TRIM1#

main58510-1E830-B1iAE110,CE110,EE111..XEVIN199704-199804

DARK CHARCOAL,TRIM14

main58510-1E840-B0iAE110,CE110,EE111..XEVIN199704-199804

main58510-1E840-B0iAE110,CE110,EE111..LX199704-199804

main58510-1E840-B1iAE110,CE110,EE111..XEVIN199704-199804

main58510-1E840-B1iAE110,CE113,EE111..LX,XEVIN199804-200008

main58510-1E850-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

sub58510-1E830

main58510-1E850-B0iAE110,CE110..SEVIN199704-199804

SHADOW GRAY,TRIM11

sub58510-1E830

main58510-1E850-B1iAE110,CE110..SEVIN199704-199804

DARK CHARCOAL,TRIM14

sub58510-1E830

main58510-1E850-B1iAE110,CE113..SEVIN199804-200008

DARK CHARCOAL,TRIM1#

sub58510-1E830

main58510-1E860-B0iAE111199704-200008

sub58510-1E840

main58510-1E860-B0iAE110,CE110..SEVIN199704-199804

sub58510-1E840

main58510-1E860-B1iAE110,CE113..SEVIN199804-200008

sub58510-1E840

main58510-1E860-B1iAE110,CE110..SEVIN199704-199804

sub58510-1E840

main58510-1E890-B0iAE114,CE114..LX199704-199804

SHADOW GRAY,TRIM11

main58510-1E890-B0iAE114,CE114..LX199704-199804

SHADOW GRAY,TRIM1#

main58510-1E890-B1iAE114,CE116199804-200008

DARK CHARCOAL,TRIM1#

main58510-1E890-B1iAE114,CE114..SEVIN,XEVIN199704-199804

DARK CHARCOAL,TRIM14

main58510-1H010-B0iAE114,CE114..LX199704-199804

main58510-1H010-B0iAE114,CE114..LX199704-199804

main58510-1H010-B1iAE114,CE116199804-200008

main58510-1H010-B1iAE114,CE114..SEVIN,XEVIN199704-199804

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-200008

BLACK,TRIM1#

sub90467-09068

main90467-09068-22iAE11#,CE11#,EE111..GT,LX199704-199804

BLACK,TRIM11,14

sub90467-09068

main90467-09068-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

BLACK,TRIM1#,4#

sub90467-09068

main90467-09068-22iAE110,114,CE11#,EE111..XEVIN199605-199704

BLACK,TRIM4#

sub90467-09068

58521BHOOK, FLOOR CARPET

main58521-12120iAE11#,CE11#,EE111199505-200008

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118iAE11#,CE11#,EE111199505-200008

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-07049-C0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

BLACK,TRIM1#,4#

sub90467-07049

main90467-07049-C0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-200008

BLACK,TRIM1#

sub90467-07049

58544ABRACKET, FLOOR CARPET, LH

main58544-13040iAE11#,CE11#,EE111199704-200008

9015950322

main90159-50322

7 parts on this diagram · 1 diagram in section
