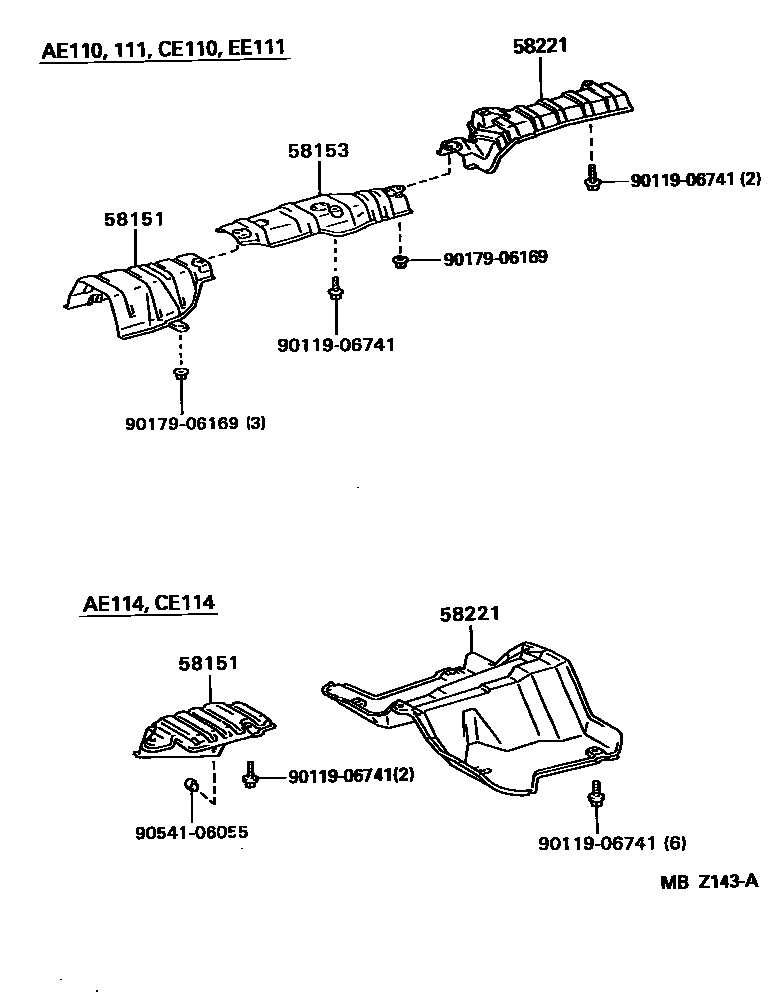

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12160iAE114¥2,350199505-200008

main58151-12200iAE110,111,EE111¥2,390199505-200008

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12130iAE110,111,EE111¥5,100199505-199611

sub58153-12150¥3,200

main58153-12150iAE110,111,EE111¥3,200199611-200008

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58044-12020iAE114,CE114¥15,900199505-200008

main58221-12110iAE110,111,CE110,EE111¥2,650199505-200008

9011906741

main90119-06741¥80

9017906169

main90179-06169¥90

9054106055

main90541-06055¥200

6 parts on this diagram · 1 diagram in section
