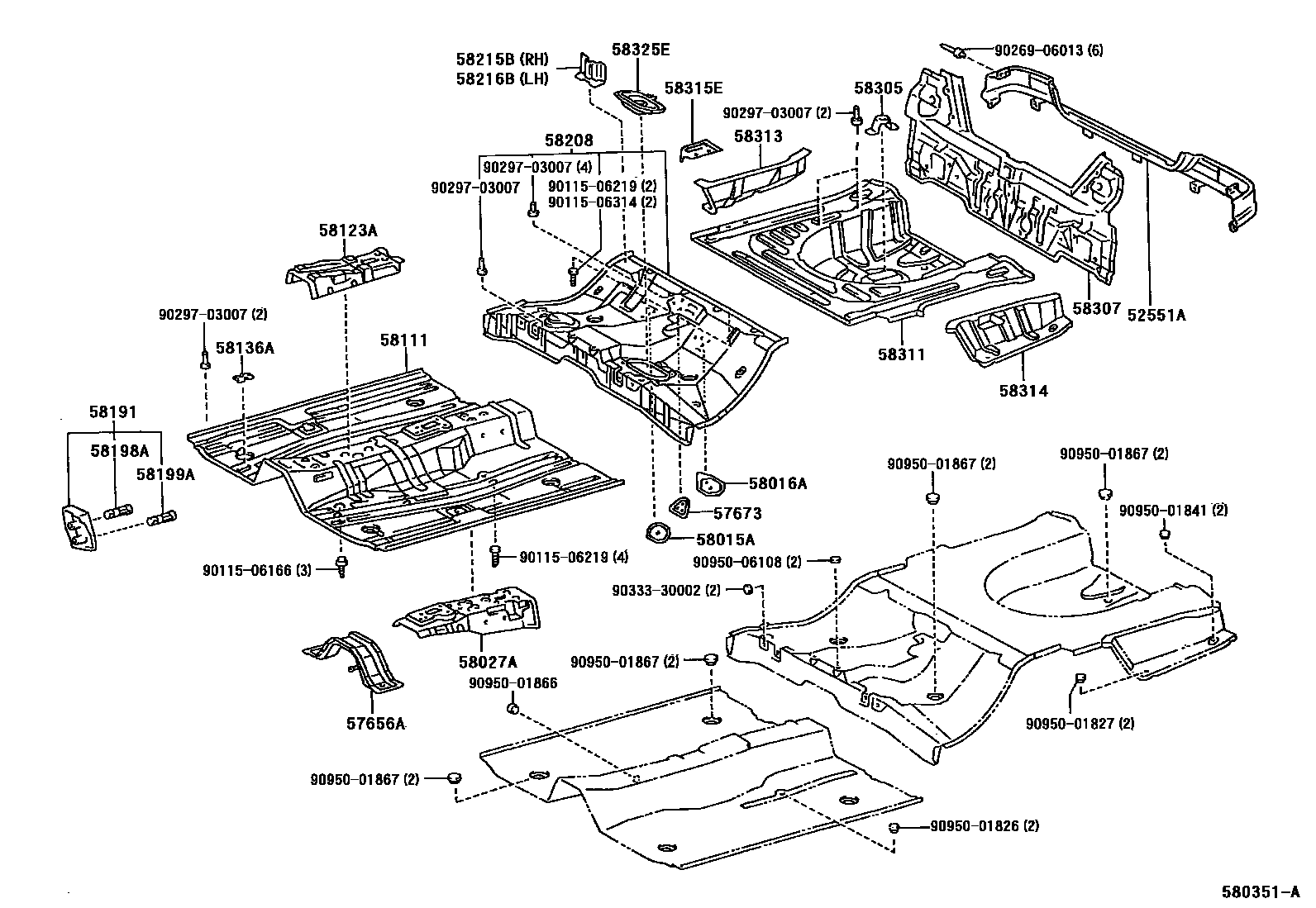

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52551AFILLER, REAR BUMPER

main52551-12030iAE11#,CE11#,EE111¥6,600199505-199704

main52551-12060iAE11#,CE11#,EE111¥6,100199704-200008

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57509-12020iCE110,113¥6,600199704-199910

sub57509-12030¥6,600

main57509-12030iCE113¥6,600199910-200008

main57656-12060iAE110,111,CE110,EE111¥3,620199505-199704

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12070iAE111¥510199505-199704

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE11#,CE11#,EE111¥1,290199505-200008

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE11#,CE11#,EE111¥1,450199505-200008

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12121iAE110,111,CE110,EE111¥4,970199505-200008

main58027-12131iAE114,CE114¥6,600199505-199704

main58027-12132iAE114,CE114,116¥6,600199704-200008

58111PAN, FRONT FLOOR

main58111-12261iAE110,111,CE110,EE111¥44,500199505-199508

sub58111-12262¥44,700

main58111-12262iAE110,111,CE110,113,EE111¥44,700199508-200008

main58111-12271iAE114,CE114¥44,500199505-199702

sub58111-12272¥44,600

sub90333-15002¥90

main58111-12272iAE114,CE114¥44,600199702-199802

sub58111-12273¥44,700

main58111-12273iAE114,CE114,116¥44,700199802-200008

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12060iAE110,111,CE110,EE111¥4,370199505-200008

main58013-12070iAE114,CE114¥4,350199505-200008

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iAE11#,CE11#,EE111¥250199505-200008

58191FOOTREST, FRONT FLOOR

main58191-12110iAE114,CE114;AE110,111,CE110..SCRU,SEVIN¥1,780199505-200008

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE114,CE114,116;AE110,111,CE110,113..GT,SEVIN¥390199505-200008

58199ACLIP, FOOTREST, NO.2

main58199-12020iAE114,CE114;AE110,111,CE110..SCRU,SEVIN¥390199505-200008

58208PAN, CENTER FLOOR

main58211-12901iAE110,111,CE110,EE111¥27,900199505-199704

sub58211-12910¥27,800

sub90333-30002¥70

main58211-12902iAE114,CE114¥27,900199505-199704

main58211-12911iAE110,111,CE110,113,EE111¥28,000199704-200008

main58211-12912iAE114,CE114,116¥27,800199704-200008

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-12041iAE11#,CE11#,EE111¥1,020199505-200008

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iAE11#,CE11#,EE111¥1,020199505-200008

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12040iAE11#,CE11#,EE111¥750199505-200008

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A902iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN¥18,600199505-199704

sub58307-1A905¥18,700

main58307-1A903iAE110,114,CE11#,EE111..LX¥18,600199505-199704

sub58307-1A906¥18,700

main58307-1A905iAE11#,CE11#,EE111..GT,SEVIN,XEVIN¥18,700199704-200008

main58307-1A906iAE110,114,CE11#,EE111..LX¥18,700199704-200008

sub58307-1A905¥18,700

58311PAN, REAR FLOOR

main58311-12210iAE11#,CE11#,EE111¥37,100199505-200008

58313PANEL, REAR FLOOR SIDE, RH

main58313-12904iAE11#,CE11#,EE111¥3,920199505-200008

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE11#,CE11#,EE111¥3,520199505-200008

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE11#,CE11#,EE111¥930199704-200008

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12100iAE11#,CE11#,EE111¥1,930199505-200008

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

9011506314

main90115-06314¥110

9026906013

main90269-06013¥60

9029703007

main90297-03007¥60

9033330002

main90333-30002¥70

9095001826

main90950-01826¥110

9095001827

main90950-01827¥200

9095001841

main90950-01841¥110

9095001866

main90950-01866¥120

9095001867

main90950-01867¥230

9095006108

main90950-06108¥50

34 parts on this diagram · 2 diagrams in section
