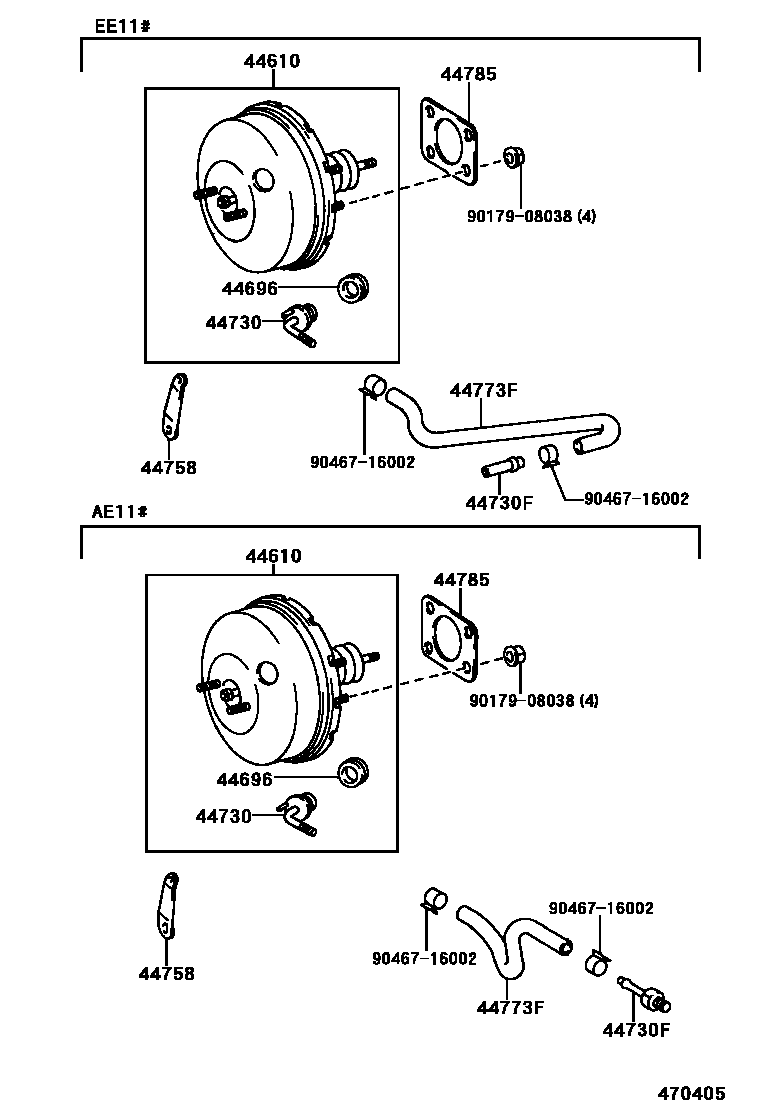

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-1A270iCE11#199505-200008

main44610-1A390iAE110,EE111199505-200008

main44610-1A630iAE110,EE111..LX199505-200008

main44610-1E180iAE110..4FC199505-200008

main44610-1E190iAE114..4FC..SEVIN199505-200008

main44610-1E230iAE111199704-200008

main44610-1E250iAE114199505-200008

44696GROMMET, CHECK VALVE

main90480-24439iAE114..4FC..SEVIN199505-200008

main90480-24517iAE114199505-200008

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iAE110,EE111199505-200008

main44730-12050iAE114199505-200008

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAE11#199505-200008

main90405-09162iAE111199704-200008

main90406-09006iEE111199505-199704

44758BRACKET, VACUUM CHECK VALVE

main44758-12300iAE11#,EE111199505-200008

44773HOSE, VACUUM, NO.2

main44773-12631iAE111199704-200008

44773FHOSE, UNION TO CHECK VALVE

main44773-12530iEE111199704-200008

main44773-12570iEE111199505-199704

main44773-12580iCE11#199505-200008

main44773-12600iAE110,114199505-200008

main44773-12610iAE111199704-200008

44785GASKET, BRAKE BOOSTER

main44785-20020iAE11#,CE11#,EE111199505-200008

9017908038

main90179-08038

9046716002

main90467-16002

10 parts on this diagram · 3 diagrams in section
