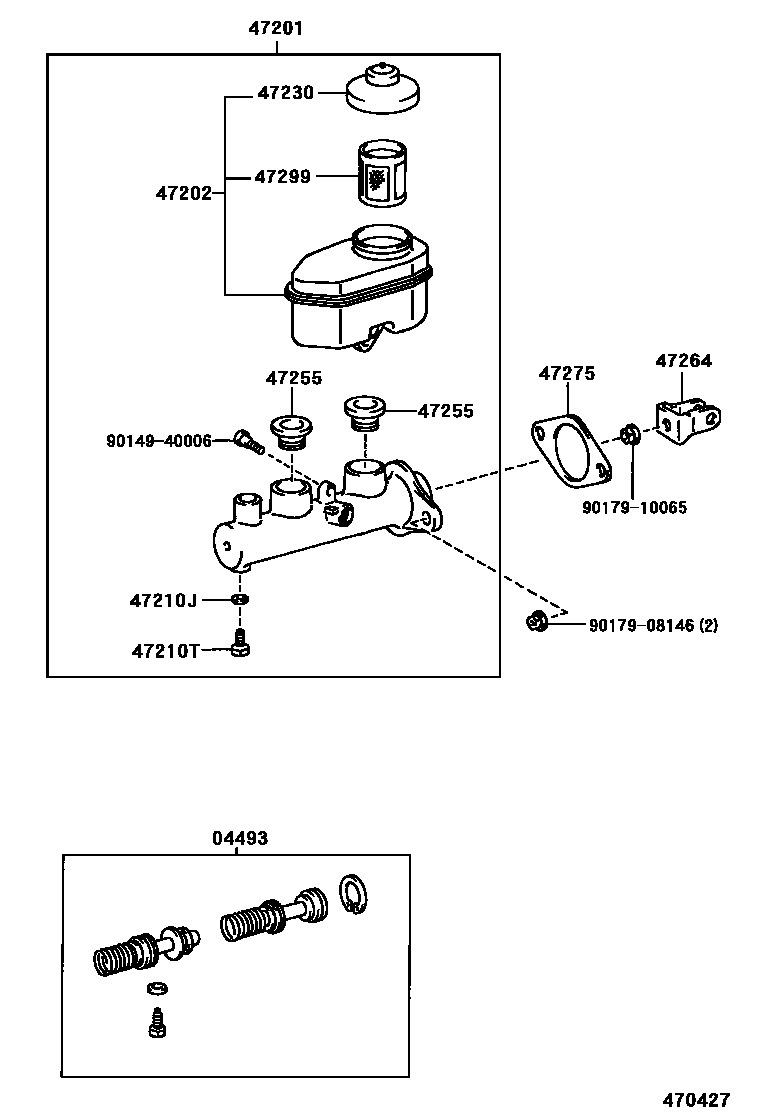

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-12200iCE114;AE114..LX,XEVIN;AE114..5F..SEVIN199505-199605

main04493-12200iAE114..4FC..SEVIN199505-199605

main04493-16080iAE110,111,CE110,EE111199505-200008

main04493-16090iAE110,111,CE110,EE111199505-199605

main04493-32080iAE114,CE114199505-200008

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12750iAE110,111,CE110,EE111199505-199605

main47201-1A030iAE114..4FC..SEVIN199505-199605

main47201-1A030iCE114;AE114..LX,XEVIN;AE114..5F..SEVIN199505-199605

main47201-1A050iAE110,111,CE110,EE111199505-200008

sub47201-1A410

main47201-1A060iAE114,CE114199505-200008

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-32060iAE11#,CE11#,EE111199505-200008

sub47220-12180

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE11#,CE11#,EE111199505-200008

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE11#,CE11#,EE111199505-200008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iAE11#,CE11#,EE111199505-200008

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAE11#,CE11#,EE111199505-200008

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iAE11#,CE11#,EE111199505-199704

main47264-16020iAE110..4FC..LX199605-199910

main47264-32020iAE11#,CE11#,EE111199910-200008

main47264-33010iEE111..5F..LX;AE110,EE111..SEVIN,XEVIN199505-199910

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAE11#,CE11#,EE111199505-200008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAE11#,CE11#,EE111199505-200008

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

13 parts on this diagram · 1 diagram in section
