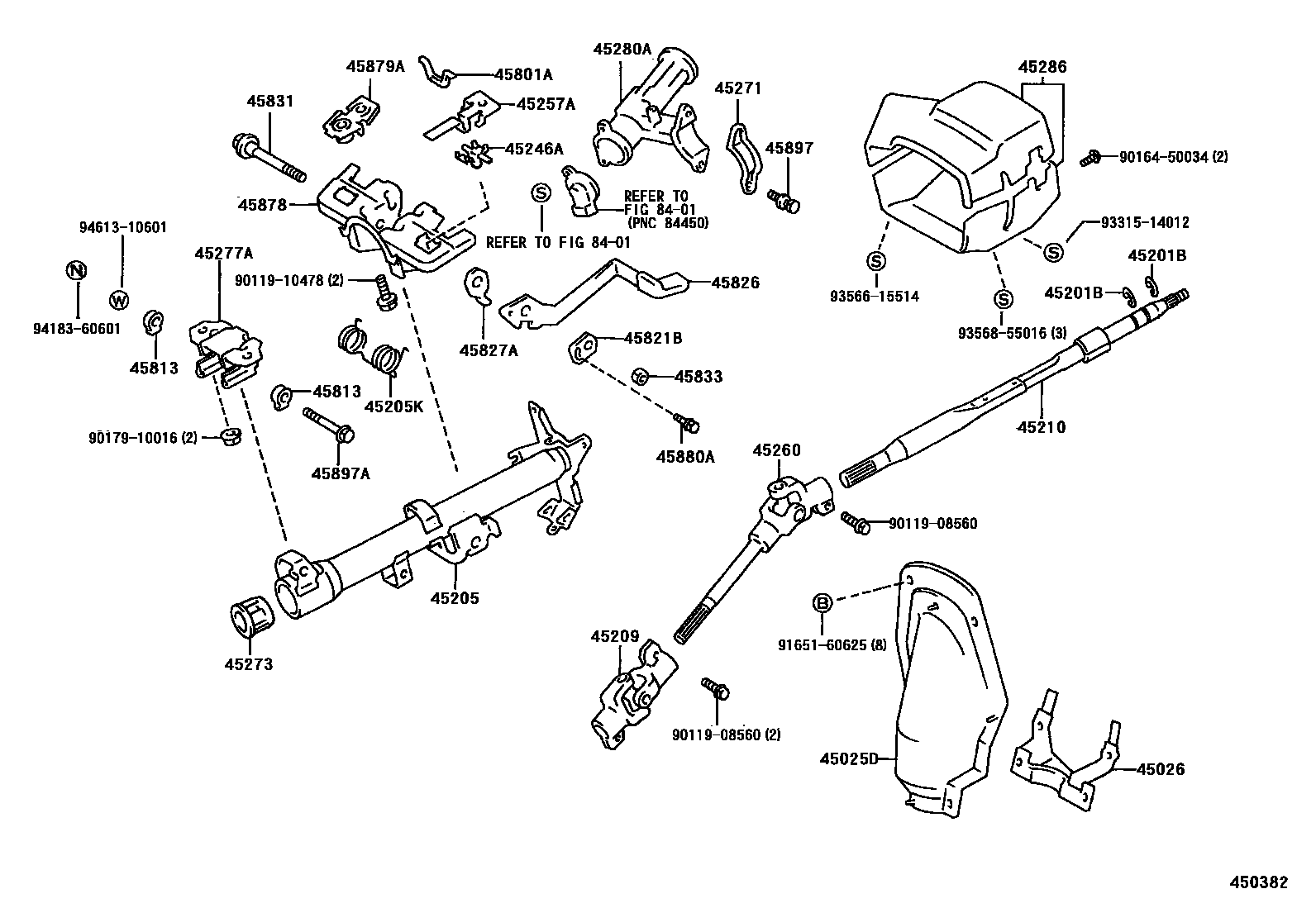

STEERING COLUMN & SHAFT

0001 1��(��� �������) 0003 1������ �������

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12180iAE11#,CE11#,EE111199505-199704

main45025-13010iAE11#,CE11#,EE111199704-200008

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12020iAE11#,CE11#,EE111199505-200008

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE11#,CE11#,EE111199505-200008

main90520-17269iAE11#,CE11#,EE111199505-200008

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-12350iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

main45205-12360iAE11#,CE110,114..GT,SEVIN;CE113,116,EE111..(4FC,5F)..(SEVIN,XEVIN)199505-200008

main45205-12360iAE11#,CE110,114..GT,SEVIN;CE113,116,EE111..(4FC,5F)..(SEVIN,XEVIN)199505-200008

main45205-12360iAE110,114,CE11#,EE111..XEVIN199904-200008

45205KSPRING(FOR STEERING COLUMN TUBE)

main90949-03027iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

main90949-03027iAE110,114,CE11#,EE111..XEVIN199904-200008

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12080iAE11#,CE11#,EE111199505-200008

45210SHAFT ASSY, STEERING MAIN

main45210-12480iAE11#,CE11#,EE111199505-200008

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110iAE11#,CE11#,EE111199505-200008

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070iAE11#,CE11#,EE111199505-200008

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12430iAE11#,CE11#,EE111199505-200008

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iAE11#,CE11#,EE111199505-200008

45273BUSH, STEERING MAIN SHAFT

main45273-12020iAE11#,CE11#,EE111199505-199704

main45273-38010iAE11#,CE11#,EE111199704-200008

45277ASUPPORT, TILT STEERING

main45277-12010iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

main45277-12010iAE110,114,CE11#,EE111..XEVIN199904-200008

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12330iAE11#,CE11#,EE111..MTM199505-199605

sub45280-12340

main45280-12331iAE11#,CE11#,EE111..MTM199605-200008

sub45280-12341

main45280-12340iAE11#,CE110,EE111..ATM199505-199605

main45280-12341iAE11#,CE110,EE111..ATM199605-200008

45286COVER, STEERING COLUMN

main45286-12955-B0iAE110,114,CE11#,EE111..XEVIN199705-199804

SHADOW GRAY,TRIM11

sub45286-12956

sub45286-12955

main45286-12955-B0iAE110,114,CE11#,EE111..LX,XEVIN199505-199804

SHADOW GRAY,TRIM1#

sub45286-12956

sub45286-12955

main45286-12955-B1iAE110,114,CE11#,EE111..XEVIN199705-199804

MD.CHARCOAL,TRIM14

sub45286-12956

sub45286-12955

main45286-12955-B1iAE110,114,CE11#,EE111..LX,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

sub45286-12956

sub45286-12955

main45286-12955-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

sub45286-12956

sub45286-12955

main45286-12956-B0iAE110,114,CE11#..SEVIN199705-199804

SHADOW GRAY,TRIM11

sub45286-12956

main45286-12956-B0iAE11#,CE11#..SCRU,SEVIN199505-199705

SHADOW GRAY,TRIM1#

sub45286-12956

main45286-12956-B0iAE11#,CE11#..SCRU,SEVIN199505-199705

sub45286-12956

main45286-12956-B0iAE110,114,CE11#..SEVIN199705-199804

sub45286-12956

main45286-12956-B1iAE110,114,CE11#..SEVIN199804-200008

DK.CHARCOAL,TRIM1#

sub45286-12956

main45286-12956-B1iAE110,114,CE11#,EE111..XEVIN199804-200008

sub45286-12956

main45286-12956-B1iAE110,114,CE11#,EE111..XEVIN199904-200008

sub45286-12956

main45286-12956-B1iAE110,114,CE11#..SEVIN199705-199804

sub45286-12956

main45286-12956-B1iAE110,114,CE11#,EE111..XEVIN199705-199804

DK.CHARCOAL,TRIM14

sub45286-12956

main45286-12956-C0iAE111199704-200008

BLACK,TRIM1#

sub45286-12956

main45286-12956-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

sub45286-12956

main45286-12956-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

sub45286-12956

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010iAE11#,CE11#,EE111199505-200008

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12010iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

main45813-12010iAE110,114,CE11#,EE111..XEVIN199904-200008

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199505-200008

main45821-12010iAE110,114,CE11#,EE111..XEVIN199904-200008

45826LEVER, STEERING TILT

main45826-12040iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

main45826-12040iAE110,114,CE11#,EE111..XEVIN199904-200008

45827ALEVER, STEERING TILT SUB

main45827-12030iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

main45827-12030iAE110,114,CE11#,EE111..XEVIN199904-200008

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12020iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

main45831-12020iAE110,114,CE11#,EE111..XEVIN199904-200008

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-12010iAE110,114,CE11#,EE111..XEVIN199904-200008

main45833-12010iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-200008

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-12220iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199505-200008

main45878-12220iAE110,114,CE11#,EE111..XEVIN199904-200008

45879ACAPSULE, BREAK AWAY

main45879-12050iAE11#,CE11#,EE111199505-200008

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199505-200008

main45832-12010iAE110,114,CE11#,EE111..XEVIN199904-200008

45897BOLT, STEERING LOCK SET

main45897-12020iAE11#,CE11#,EE111199505-200008

45897ABOLT, TILT STEERING PAWL SET

main45897-12040iAE11#,CE11#,EE111..GT,SEVIN,XEVIN199505-200008

main45897-12040iAE110,114,CE11#,EE111..XEVIN199904-200008

8401

9011908560

main90119-08560

9011910478

main90119-10478

9016450034

main90164-50034

9017910016

main90179-10016

9165160625

main91651-60625

9331514012

main93315-14012

9356615514

main93566-15514

9356855016

main93568-55016

9418360601

main94183-60601

9461310601

main94613-10601

38 parts on this diagram · 2 diagrams in section
