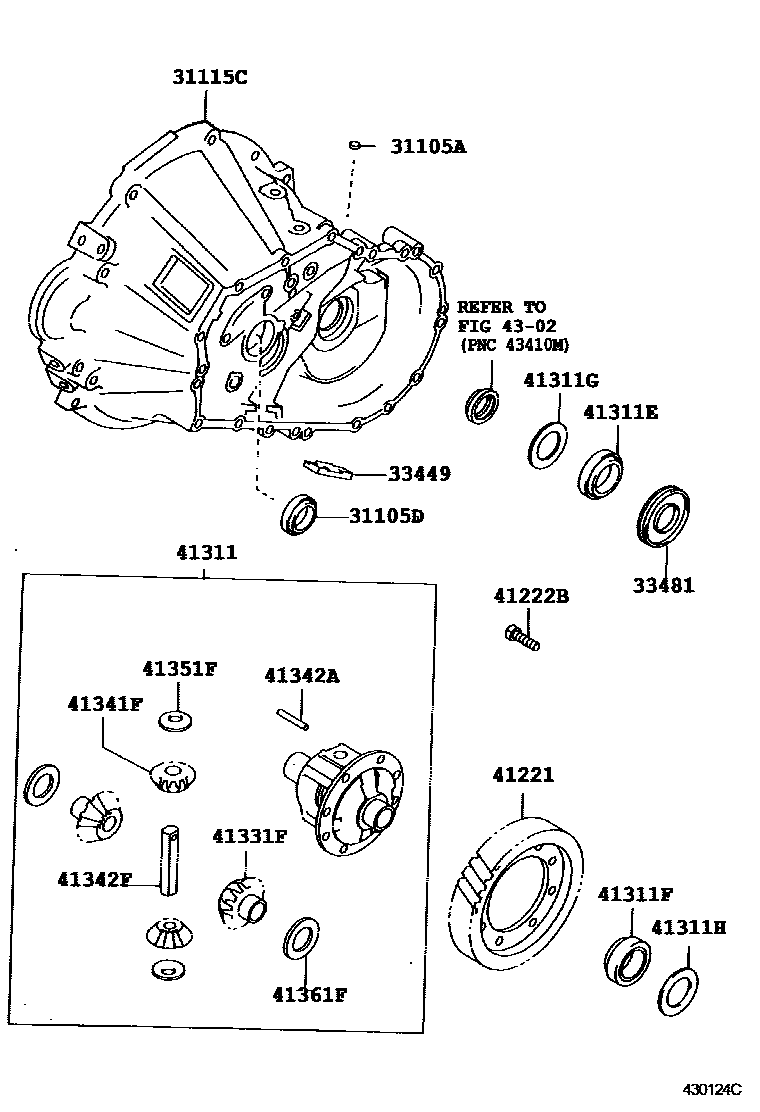

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C40,C50,C51,C160 0002 1S50,S51 0003 1E55F,E55F5 0004 1E59F 0005 1A132L 0006 1A240L,A245E 0007 1A241H 0008 1A241L

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32070iCE110..5F199703-200008

main31105-33020iCE110..5F199505-199703

sub31105-33022

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAE110,111,EE111..MTM199505-200008

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAE111..6F199704-200008

sub90311-25028

main90311-25016iAE110,EE111..MTM199505-200008

main90311-30006iAE114,CE11#..5F199505-200008

sub90311-30017

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12070iAE114..5F199505-199911

sub31115-12071

main31115-12071iAE114..5F199911-200008

main31115-16040iAE110,111..5F199505-199603

sub31115-16041

main31115-16041iAE110,111..5F199603-199704

sub31115-16042

main31115-16042iAE110,111..MTM199704-200008

main31115-16050iEE111..4F199505-199704

sub31115-16051

main31115-16051iEE111..MTM199704-200008

main31115-33011iCE114199505-199606

sub31115-33012

main31115-33012iCE114,116199606-199911

sub31115-33013

main31115-33013iCE116199911-200008

33449MAGNET, TRANSMISSION

main33449-12020iAE110,111,EE111..MTM199505-200008

main33449-20010iAE114,CE114..5F199505-200008

main33449-32020iCE110..5F199505-200008

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAE110,111,EE111..MTM199505-200008

main33481-12090iAE114..5F199505-200008

main33481-32060iCE110,113..5F199505-200008

main33481-42040iCE114,116199505-200008

sub33481-42041

sub41342-42030

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12160iAE110,EE111..3FC,4F,5F199505-200008

sub41221-12310

main41221-12190iAE110..4FC199505-200008

main41221-12260iAE114,CE114..5F199505-199912

main41221-12261iAE114..5F199912-200008

sub41221-42010

main41221-12280iAE114..4FC199505-200008

main41221-12290iCE116199804-199912

main41221-12291iCE116199912-200008

main41221-12330iAE111..5F199505-199704

sub41221-52260

main41221-12380iAE111..6F199704-200008

sub41221-12500

main41221-20200iCE110,113..4FC199505-200008

main41221-20230iAE111..4FC199505-200008

main41221-20300iCE113..5F199804-200008

main41221-32080iCE110..5F199505-199804

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iCE110..5F199505-199506

main90101-11353iAE110,111,CE110,EE111..ATM199505-200008

main90105-11040iAE110,111,EE111..MTM199505-200008

main90105-12150iAE114,CE114..5F199505-200008

41311CASE, FRONT DIFFERENTIAL

main41301-12041iAE110,111,EE111..MTM199505-200008

main41301-12051iEE111..3FC199505-200008

main41301-12120iAE114..4FC199505-200008

main41301-17021iAE110..4FC199505-200008

sub41301-20150

sub90366-42001

main41301-20112iCE110,113..4FC199505-200008

main41301-20150iAE111..4FC199505-200008

main41301-32060iCE110..5F199505-199902

sub41301-32061

main41301-32061iCE113..5F199902-200008

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90080-36101iAE110,EE111..5F199805-200008

sub90366-38004

sub90560-41003

main90366-38004iAE110,EE111..5F199805-200008

NACHI OR KOYO

main90366-38004iAE110,111,EE111..MTM199505-199805

main90366-38014iEE111..3FC199703-200008

main90366-40016iCE110,113..5F199505-200008

main90366-57001iAE114,CE114,116..5F199505-200008

main90366-67001iAE114..4FC199505-200008

main90368-38002iAE110..4FC199505-200008

main90368-38010iAE111..4FC199505-200008

main90368-40002iCE110,113..4FC199505-200008

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-38014iEE111..3FC199703-200008

main90366-40023iCE110..5F199505-199508

sub90366-40064

main90366-40064iCE110,113..5F199508-200008

main90366-42001iAE111..4FC199505-200008

main90366-44001iCE110,113..4FC199505-200008

main90366-50014iAE114,CE114..5F199505-200008

main90366-55028iAE114..4FC199505-200008

main90368-38002iEE111..3FC199505-199703

main90368-38010iAE111..5F;AE110,EE111..4F,4FC,5F199505-200008

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iEE111..3FC199505-200008

main90201-41003iEE111..3FC199505-200008

main90201-41004iEE111..3FC199505-200008

main90201-41005iEE111..3FC199505-200008

main90201-41006iEE111..3FC199505-200008

main90201-41007iEE111..3FC199505-200008

main90201-41008iEE111..3FC199505-200008

main90201-41009iEE111..3FC199505-200008

main90201-41010iAE110,EE111..ATM199505-200008

main90201-41011iEE111..3FC199505-200008

main90201-41012iAE110..5F199505-200008

main90201-41013iEE111..3FC199505-200008

main90201-41014iEE111..3FC199505-200008

main90201-41015iEE111..3FC199505-200008

main90201-41016iEE111..3FC199505-200008

main90201-41017iEE111..3FC199505-200008

main90201-41018iEE111..3FC199505-200008

main90201-41019iEE111..3FC199505-200008

main90201-41020iEE111..3FC199505-200008

main90201-41021iEE111..3FC199505-200008

main90201-41022iEE111..3FC199505-200008

main90201-41023iEE111..3FC199505-200008

main90201-41024iAE111..4FC199505-200008

main90560-41002iAE110,EE111..5F199805-200008

main90560-41003iEE111..5F199908-200008

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iEE111..3FC199505-200008

main90201-41024iAE110,111..4FC199505-200008

main90201-41025iAE110,111..4FC199505-200008

main90201-41026iAE110,111..4FC199505-200008

main90201-41027iAE110,111..4FC199505-200008

main90201-41028iAE110,111..4FC199505-200008

main90201-41029iAE110,111..4FC199505-200008

main90201-41030iAE110,111..4FC199505-200008

main90201-41031iAE110,111..4FC199505-200008

main90201-41032iAE110,111..4FC199505-200008

main90201-41033iAE110,111..4FC199505-200008

main90201-41034iAE110,111..4FC199505-200008

main90201-41035iAE110,111..4FC199505-200008

main90201-41036iAE110,111..4FC199505-200008

main90201-41039iAE110,111..4FC199505-200008

main90201-41040iAE110,111..4FC199505-200008

main90201-41041iAE110,111..4FC199505-200008

main90201-41042iAE110,111..4FC199505-200008

main90201-41043iAE110,111..4FC199505-200008

main90201-41044iAE110,111..4FC199505-200008

main90201-41046iAE110,111,EE111..MTM199505-199908

sub90564-41014

main90201-41047iAE110,111,EE111..MTM199505-199908

sub90564-41015

main90201-41048iAE110,111,EE111..MTM199505-199908

sub90564-41016

main90201-41049iAE110,111,EE111..MTM199505-199908

sub90564-41017

main90201-41050iAE110,111,EE111..MTM199505-199908

sub90564-41018

main90201-41051iAE110,111,EE111..MTM199505-199908

sub90564-41019

main90201-41052iAE110,111,EE111..MTM199505-199908

sub90564-41020

main90201-41053iAE110,111,EE111..MTM199505-199908

sub90564-41021

main90201-41054iAE110,111,EE111..MTM199505-199908

sub90564-41022

main90201-41055iAE110,111,EE111..MTM199505-199908

sub90564-41023

main90201-41056iAE110,111,EE111..MTM199505-199908

sub90564-41024

main90201-41057iAE110,111,EE111..MTM199505-199908

sub90564-41025

main90201-41058iAE110,111,EE111..MTM199505-199908

sub90564-41026

main90201-41059iAE110,111,EE111..MTM199505-199908

sub90564-41027

main90201-41060iAE110,111,EE111..MTM199505-199908

sub90564-41028

main90201-41061iAE110,111,EE111..MTM199505-199908

sub90564-41029

main90201-41062iAE110,111,EE111..MTM199505-199908

sub90564-41030

main90201-41063iAE110,111,EE111..MTM199505-199908

sub90564-41031

main90201-41064iAE110,111,EE111..MTM199505-199908

sub90564-41032

main90201-45004iCE110,113..4FC199505-200008

main90201-45005iCE110..4FC199505-200008

main90201-45006iCE110..4FC199505-200008

main90201-45007iCE110,113..4FC199505-200008

main90201-45008iCE110,113..4FC199505-200008

main90201-45009iCE110,113..4FC199505-200008

main90201-45010iCE110..4FC199505-200008

main90201-45011iCE110,113..4FC199505-200008

main90201-45012iCE110,113..4FC199505-200008

main90201-45013iCE110..4FC199505-200008

main90201-45014iCE110..4FC199505-200008

main90201-45015iCE110..4FC199505-200008

main90201-45016iCE110,113..4FC199505-200008

main90201-45017iCE110..4FC199505-200008

main90201-45018iCE110..4FC199505-200008

main90201-45019iCE110..4FC199505-200008

main90201-45020iCE110,113..4FC199505-200008

main90201-45021iCE110..4FC199505-200008

main90201-45022iCE110..4FC199505-200008

main90564-41014iAE110,111,EE111..MTM199908-200008

main90564-41015iAE110,111,EE111..MTM199908-200008

main90564-41016iAE110,111,EE111..MTM199908-200008

main90564-41017iAE110,111,EE111..MTM199908-200008

main90564-41018iAE110,111,EE111..MTM199908-200008

main90564-41019iAE110,111,EE111..MTM199908-200008

main90564-41020iAE110,111,EE111..MTM199908-200008

main90564-41021iAE110,111,EE111..MTM199908-200008

main90564-41022iAE110,111,EE111..MTM199908-200008

main90564-41023iAE110,111,EE111..MTM199908-200008

main90564-41024iAE110,111,EE111..MTM199908-200008

main90564-41025iAE110,111,EE111..MTM199908-200008

main90564-41026iAE110,111,EE111..MTM199908-200008

main90564-41027iAE110,111,EE111..MTM199908-200008

main90564-41028iAE110,111,EE111..MTM199908-200008

main90564-41029iAE110,111,EE111..MTM199908-200008

main90564-41030iAE110,111,EE111..MTM199908-200008

main90564-41031iAE110,111,EE111..MTM199908-200008

main90564-41032iAE110,111,EE111..MTM199908-200008

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAE110,111,EE111199505-200008

main41331-12030iAE114,CE114,116199505-200008

main41331-32010iCE110199505-200008

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAE110,111,EE111199505-200008

main41341-20011iAE114..4FC199505-200008

main41341-30011iCE110199505-200008

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90249-06093iAE114..4FC199505-200008

main90250-06058iAE110,111,CE110,EE111199505-200008

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12040iAE114,CE114,116..5F199505-200008

main41342-12060iAE114..4FC199505-200008

main41342-12140iAE111..5F;AE110,EE111199505-200008

sub41342-20060

main41342-20060iAE111..4FC199505-200008

main41342-32020iCE110,113199505-200008

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12010iAE114,CE114,116..5F199505-200008

main41351-12020iAE110,111,EE111199505-200008

main41351-32010iCE110199505-200008

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iAE114,CE114199505-200008

main41361-12340iAE114,CE114..5F199505-200008

main41361-12350iAE114..4FC199505-200008

main41361-12360iAE114..4FC199505-200008

main41361-12370iAE114..4FC199505-200008

main41361-12380iAE114..4FC199505-200008

main41361-12390iAE114,CE114,116..5F199505-200008

main41361-12400iAE114,CE114,116199505-200008

main41361-12410iAE114,CE114,116199505-200008

main41361-12420iAE114,CE114,116199505-200008

main41361-17010iAE110,111,CE110,113,EE111..ATM199505-200008

main41361-17020iAE110,111,CE110..4FC199505-200008

main41361-17030iAE110,111,CE110..4FC199505-200008

main41361-17040iAE110,111,CE110,113,EE111..ATM199505-200008

main41361-17050iAE110,111,CE110..4FC199505-200008

main41361-17060iAE110,111,CE110,113,EE111..ATM199505-200008

main41361-22020iAE110,111,CE110,EE111..3FC,4F,5F,6F199505-200008

main41361-22030iAE110,111,CE110,EE111..3FC,4F,5F199505-200008

main41361-22040iAE110,111,CE110,EE111..3FC,4F,5F,6F199505-200008

main41361-22140iAE110,111,CE110,EE111..3FC,4F,5F,6F199505-200008

main41361-22150iAE110,111,CE110,EE111..3FC,4F,5F199505-200008

main41361-22160iAE110,111,CE110,EE111..3FC,4F,5F199505-200008

4302

20 parts on this diagram · 8 diagrams in section
