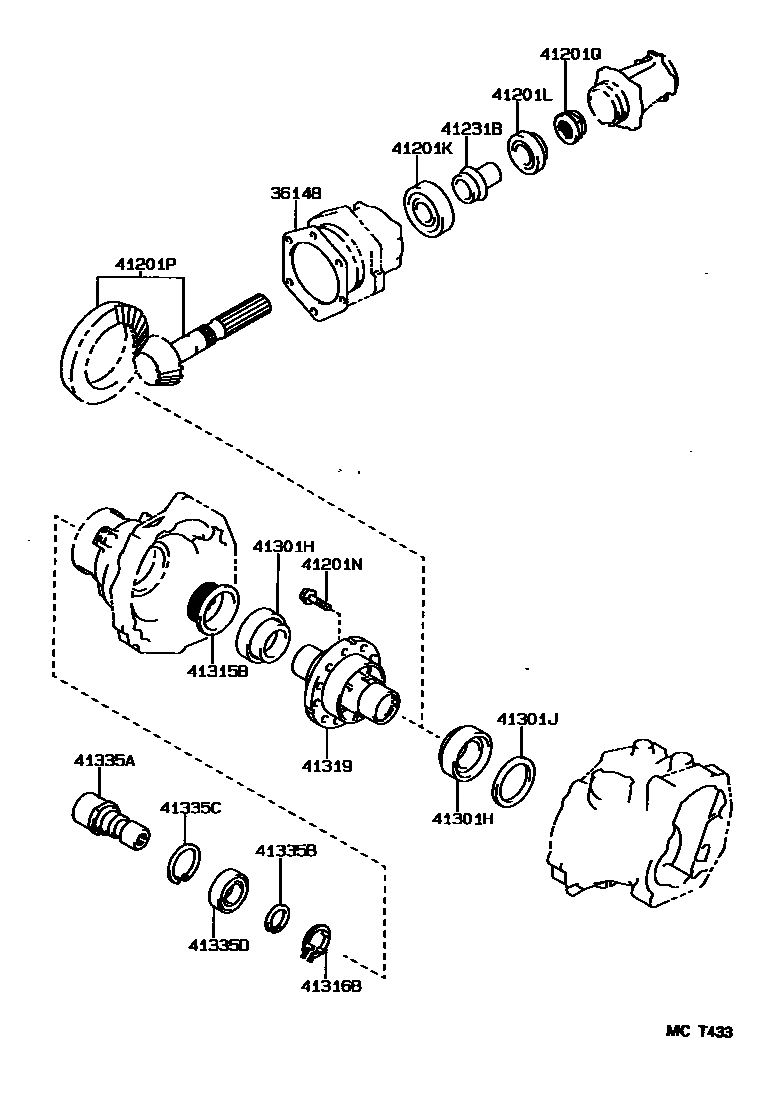

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201NBOLT (FOR TRANSFER GEAR )
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41315BNUT, BEARING ADJUSTING
41316BPLATE, ADJUSTING NUT LOCK
41319CASE, TRANSFER RING GEAR MOUNTING
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
16 parts on this diagram · 3 diagrams in section
