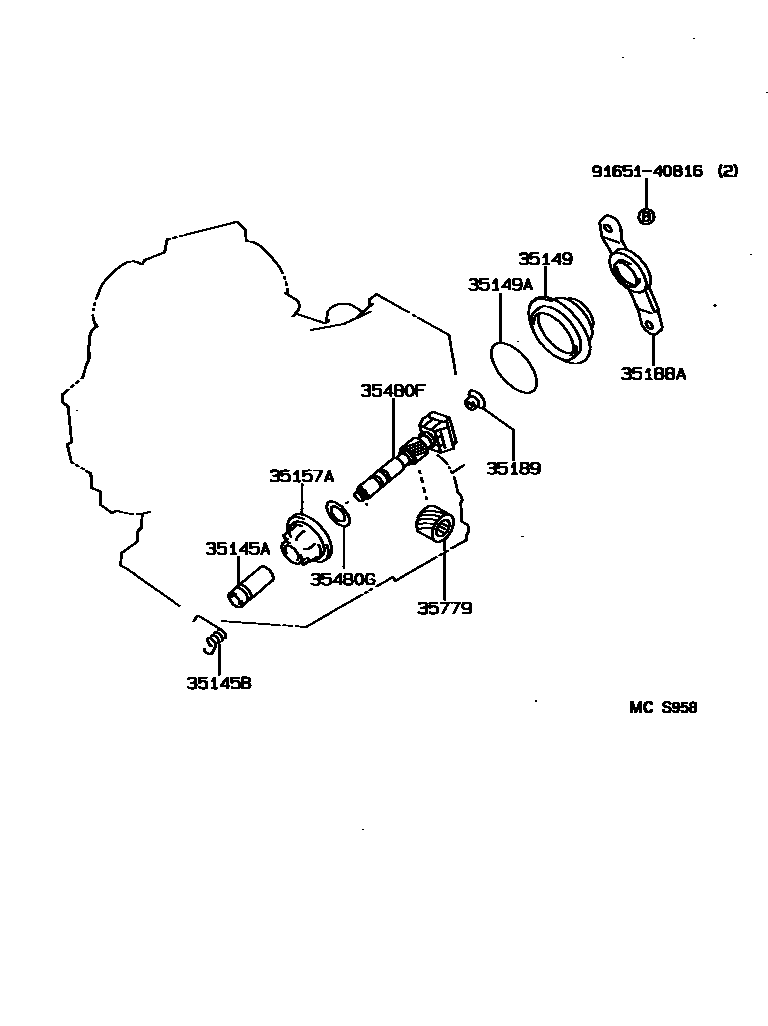

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A132L 0002 1A240L,A241H,A241L

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iEE111..3FC199505-200008

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iEE111..3FC199505-200008

35149COVER, GOVERNOR

main35149-12010iEE111..3FC199505-200008

main35149-20010iAE110,114,CE110,113..4FC199505-200008

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iAE110,114,CE110,113..4FC199505-200008

main90301-73001iEE111..3FC199505-200008

35157AADAPTER, GOVERNOR BODY

main35157-12010iEE111..3FC199505-200008

main35157-20031iAE110,114,CE110..4FC199505-200008

35188ABRACKET, GOVERNOR COVER

main35188-12010iEE111..3FC199505-200008

main35188-20010iAE110,114,CE110,113..4FC199505-200008

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32011iAE110,114,CE110,113,EE111..ATM199505-200008

35480FBODY ASSY, GOVERNOR

main35480-12060iAE114..4FC199505-199704

main35480-16050iAE110,114..4FC199601-200008

main35480-20021iAE110..4FC199505-199601

main35480-20041iCE110..4FC199505-200008

main35480-32013iEE111..3FC199505-200008

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iEE111..3FC199505-200008

35779GEAR, GOVERNOR DRIVE

main35779-32010iEE111..3FC199505-200008

9165140816

main91651-40816

11 parts on this diagram · 2 diagrams in section
