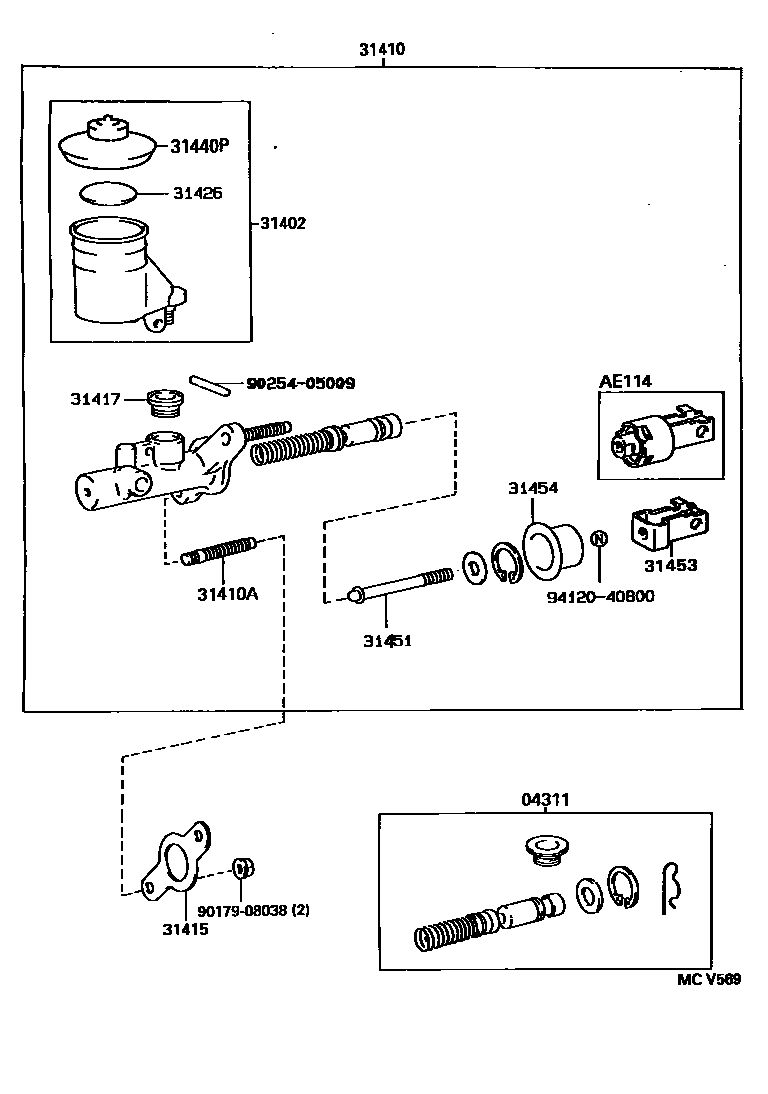

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iAE11#,CE11#,EE111..MTM199505-200008

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iCE11#..5F199505-200008

main31402-12060iAE114..5F199505-200008

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12302iAE110,111,EE111..MTM199505-199704

sub31410-12312

main31410-12312iAE114..5F199505-200008

main31410-12362iCE11#..5F199505-200008

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE11#,CE11#,EE111..MTM199505-200008

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE11#,CE11#,EE111..MTM199505-200008

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAE11#,CE11#,EE111..MTM199505-200008

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE11#,CE11#,EE111..MTM199505-200008

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE11#,CE11#,EE111..MTM199505-200008

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iAE110,111,EE111..MTM199505-199704

main31451-35080iAE114,CE11#..5F199505-200008

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iAE114,CE11#..5F199505-200008

main31453-10040iAE110,111,EE111..MTM199505-199704

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iAE11#,CE11#,EE111..MTM199505-200008

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
