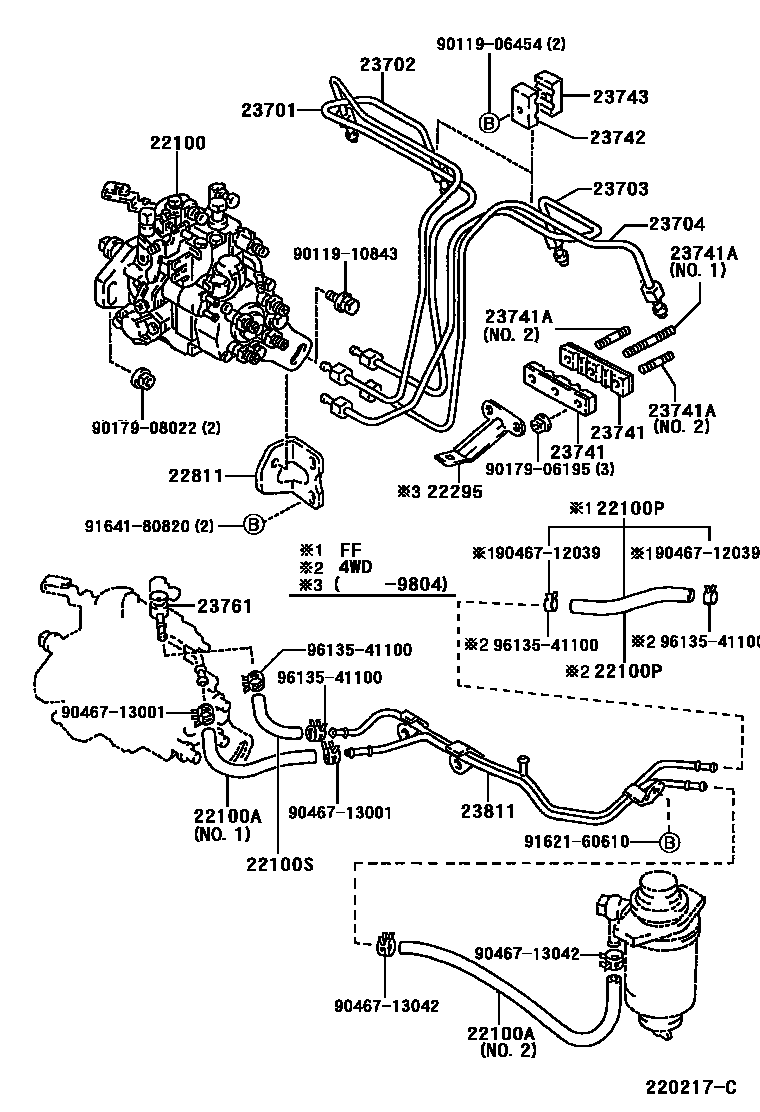

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6D580i2C..CE110..4FC199505-199804

main22100-6D751i2C..CE110..5F..(LX,XEVIN)199505-199804

main22100-6D771i2C..CE114..LX,XEVIN199505-199804

main22100-6D860i2C..CE110..5F..(LX,XEVIN)199505-199804

main22100-6D870i2C..CE114..LX,XEVIN199505-199804

main22100-6E210i3CE..CE113..4FC199804-200008

main22100-6E220i3CE..CE11#..5F199804-200008

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64170i2C..CE11#199505-200008

main23273-64030i2C..CE11#199505-200008

22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)

main23271-64160i2C..CE110199505-200008

main23271-64180i2C,3CE..CE114,116199505-200008

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23274-64020i3CE..CE11#199804-200008

main95333-06020i2C..CE11#199505-199804

sub95337-06020

22295BRACKET, INJECTION PUMP CONNECTOR

main22295-64011i2C..CE11#199505-199804

22811STAY, INJECTION PUMP, NO.1

main22811-64020i2C..CE11#199505-200008

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64110i2C..CE11#199505-200008

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64110i2C..CE11#199505-200008

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64090i2C..CE11#199505-200008

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64110i2C..CE11#199505-200008

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i2C..CE11#199505-200008

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2C..CE11#199505-200008

sub90116-06095

main92122-60622i2C..CE11#199505-200008

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i2C..CE11#199505-200008

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i2C,3CE..CE11#199505-200008

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64030i2C..CE11#199505-199804

main23764-64110i3CE..CE11#199804-200008

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64090i2C..CE11#199505-199804

sub23811-64091

main23811-64120i3CE..CE11#199804-200008

9011906454

main90119-06454

9011910843

main90119-10843

9017906195

main90179-06195

9017908022

main90179-08022

9046712039

main90467-12039

9046713001

main90467-13001

9046713042

main90467-13042

9162160610

main91621-60610

9164180820

main91641-80820

9613541100

main96135-41100

26 parts on this diagram · 1 diagram in section
