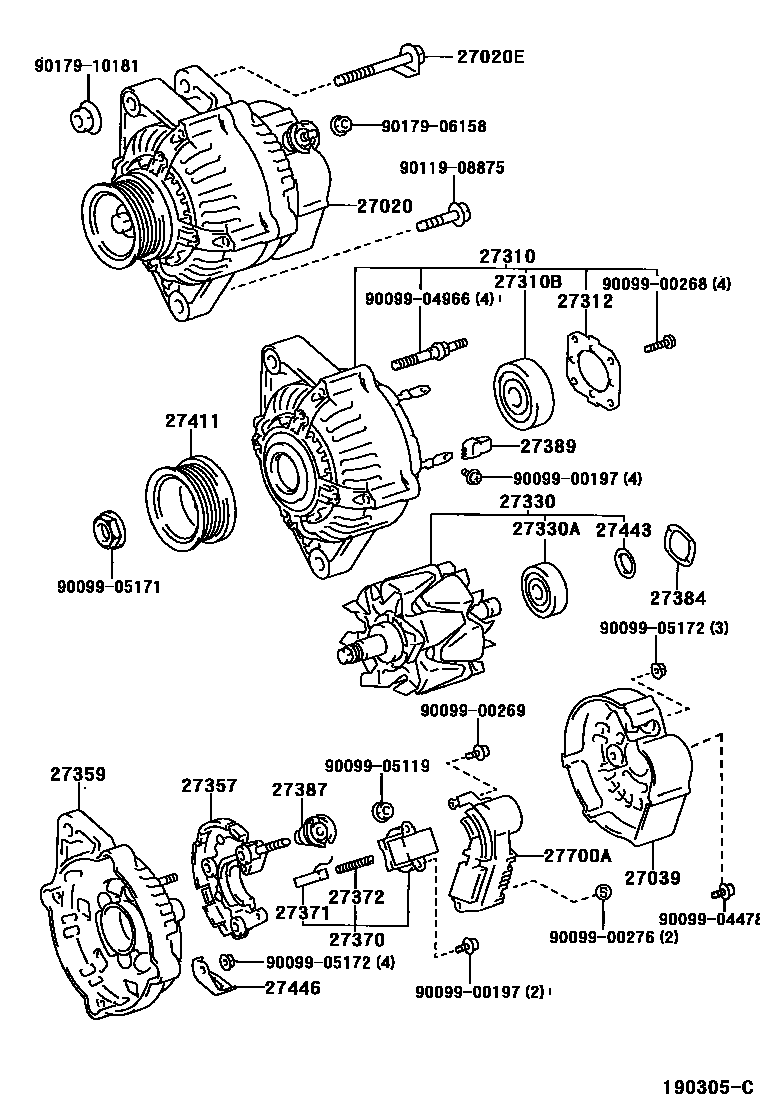

ALTERNATOR

0001 112V 70A 0002 112V 70A 0003 112V 80A 0004 112V 70A 0005 112V 70A 0006 112V 70A 0007 112V 80A

27020ALTERNATOR ASSY

main27060-11270i4EFE..EE111..MTM199505-200008

main27060-11281i4EFE..EE111..3FC199505-200008

main27060-15130i4AFE,5AFE..AE110,114..5F199505-200008

sub27060-15080

main27060-15140i4AFE,5AFE..AE11#..4FC199505-199704

sub27060-16460

main27060-16350i4AGE..AE111..6F199704-200008

sub27060-16320

main27060-16460i4AFE,5AFE..AE110,114..4FC199704-200008

sub27060-16430

main27060-16470i4AGE..AE111..4FC199704-200008

main27060-64130i2C..CE11#199505-199804

main27060-64370i3CE..CE11#..5F199804-200008

sub27060-64380

main27060-64380i3CE..CE113..4FC199804-200008

27020EBOLT(FOR ALTERNATOR)

main90105-10336i4AFE,5AFE..AE11#199505-200008

main90901-05004i2C..CE11#199505-200008

27039COVER, ALTERNATOR REAR END

main27039-16380i4A#,5AFE,4EFE..AE11#,EE111..MTM199701-200008

main27039-55080i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

sub27039-70470

main27039-73020i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-199704

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i4AFE,5AFE..AE11#..5F199505-200008

main27310-15180i4AFE,5AFE..AE11#..4FC199505-199704

sub27310-16430

main27310-16103i4EFE..EE111..MTM199505-200008

main27310-16270i4EFE..EE111..3FC199505-200008

main27310-16300i4AGE..AE111..6F199704-200008

main27310-16430i4AFE,5AFE..AE110,114..4FC199704-200008

main27310-16470i4AGE..AE111..4FC199704-200008

main27310-64450i3CE..CE113..5F;2C,3CE..CE110,114,116199505-200008

main27310-64470i3CE..CE113..4FC199804-200008

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i4A#,5AFE,4EFE..AE11#,EE111..MTM199505-200008

main90099-10192i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

27312PLATE, RETAINER

main27312-42010i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

main27312-70200i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-200008

27330ROTOR ASSY, ALTERNATOR

main27330-16300i4AGE..AE111..6F199704-200008

main27330-16390i3CE..CE11#..5F;4AFE,5AFE,4EFE..AE110,114,EE111..ATM200007-200008

main27330-16400i4AGE..AE111..4FC200007-200008

sub27330-16390

main27330-46080i4AGE..AE111..4FC199704-200007

main27330-64570i4AFE,5AFE..AE11#..5F199701-200008

main27330-72101i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-199704

main27330-72280i3CE..CE113..4FC199804-200007

sub27330-74550

main27330-74550i3CE..CE113..4FC200007-200008

main27330-76030i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111199505-200008

main90099-10194i4AGE..AE111199704-200008

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16380i4A#,5AFE,4EFE..AE11#,EE111..MTM199701-200008

main27357-55080i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

main27357-63020i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-199704

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15170i4AFE,5AFE..AE11#..5F199505-199601

sub27359-15171

sub27384-16380

main27359-15171i4AFE,5AFE..AE11#..5F199601-199701

main27359-15180i4AFE,5AFE..AE11#..4FC199505-200008

main27359-16180i4EFE..EE111..4F199505-199601

sub27359-16181

sub27384-16380

main27359-16181i4EFE..EE111..4F199601-199704

main27359-16182i4EFE..EE111..MTM199704-200008

main27359-16270i4EFE..EE111..3FC199505-200008

main27359-16302i4AGE..AE111..6F199704-200008

main27359-16310i4AGE..AE111..4FC199704-200008

main27359-16380i4AFE,5AFE..AE11#..5F199701-200008

main27359-64450i2C..CE11#199505-200008

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE,5AFE..AE110,114..5F199505-200008

main27370-54450i4EFE..EE111..4F199505-199601

sub27370-58320

main27370-58320i4AGE,4EFE..AE111,EE111..MTM199601-200008

main27370-75060i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

27371BRUSH, ALTERNATOR

main27371-70300i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-200008

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-200008

sub27372-87501

27384WASHER

main27384-16380i4AFE,5AFE,4EFE..AE11#,EE111..MTM199601-200008

main27384-50030i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

27387INSULATOR, TERMINAL

main27387-42020i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-199708

main27387-42021i2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM199708-200008

main27387-70170i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-199709

main27387-70171i4A#,5AFE,4EFE..AE11#,EE111..MTM199709-200008

27389INSULATOR, TERMINAL

main27389-42010i2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM199505-200008

main27389-63020i4AFE,5AFE,4EFE..AE11#,EE111..MTM199505-200008

27411PULLEY, ALTERNATOR

main27411-11060i4EFE..EE111..3FC199505-200008

main27411-16180i4AFE,5AFE..AE11#..5F199505-200008

main27411-42030i4AFE,5AFE..AE11#..4FC199505-200008

main27411-64320i2C..CE11#199505-199804

main27411-64360i3CE..CE11#199804-200008

main27411-65010i4EFE..EE111..MTM199505-200008

main27411-74050i4AGE..AE111..4FC199704-200008

27443COVER, ALTERNATOR BEARING

main27443-63020i4A#,5AFE,2C,3CE,4EFE..AE11#,CE11#,EE111199505-200008

27446CLIP, ALTERNATOR CORD

main27446-15170i4AFE,5AFE..AE11#199505-200008

main27446-64450i2C..CE11#199505-200008

27700AREGULATOR ASSY, GENERATOR

main27700-11070i4EFE..EE111..MTM199505-200008

main27700-35040i2C,3CE..CE11#199608-200008

main27700-65010i2C..CE11#199505-199608

sub27700-35040

main27700-74030i4EFE..EE111..3FC199505-200008

main27700-74040i4AFE,5AFE..AE11#199505-200008

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

32 parts on this diagram · 7 diagrams in section
