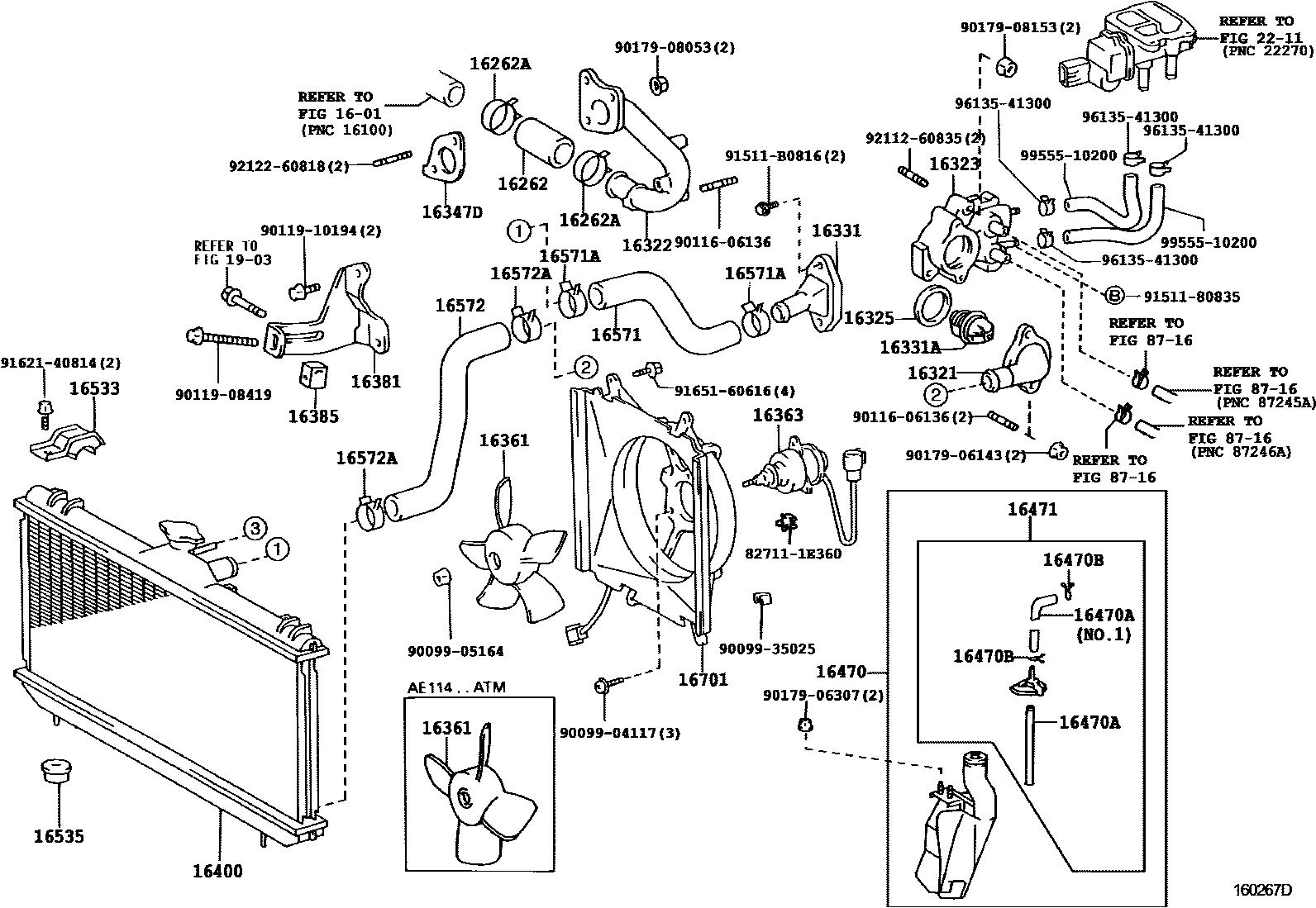

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1601

16262HOSE, WATER INLET

main16262-10011i4EFE..EE111..MTM199505-200008

main16262-10022i4EFE..EE111..3FC199505-200008

main16262-15040i4AFE,5AFE..AE11#199505-199802

sub16262-16030

main16262-16030i4AFE,5AFE..AE110,114199802-200008

main90445-42002i4AGE..AE111199704-200008

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i4EFE..EE111199505-200008

sub90467-34004

main90467-37002i4AFE,5AFE..AE11#199505-200008

sub90467-37005

16321INLET, WATER

main16321-11011i4EFE..EE111199505-200008

main16321-15040i4AFE,5AFE..AE11#199505-200008

main16321-16050i4AGE..AE111199704-200008

main16321-64020i2C,3CE..CE11#199505-200008

16322PIPE, WATER INLET

main16322-11162i4EFE..EE111199505-200008

main16322-15050i4AFE,5AFE..AE110,114199505-200008

main16322-16050i4AGE..AE111199704-200008

16323HOUSING, WATER INLET

main16323-15180i4AFE,5AFE..AE110,114199505-200008

main16323-16150i4AGE..AE111199704-200008

16325GASKET, WATER INLET HOUSING, NO.1

main16325-16020i4AGE..AE111199704-200008

CYLINDER HEAD SIDE

main16325-62010i4AGE..AE111199704-200008

THERMOSTAT SIDE

main16325-63011i4AFE,5AFE..AE110,114199505-200008

16331OUTLET, WATER

main16331-15080i4AFE,5AFE..AE11#199505-200008

main16331-16100i4AGE..AE111199704-200008

main16331-64120i2C..CE11#199505-199804

main16331-64150i3CE..CE11#199804-200008

16331ATHERMOSTAT

main90916-03046i4EFE..EE111199505-200008

main90916-03075i4AGE..AE111199704-200008

main90916-03109i4AFE,5AFE..AE110,114199608-199803

sub90916-03115

main90916-03115i4AFE,5AFE..AE110,114199803-200008

16347DGASKET, WATER BY-PASS

main16347-15010i4AFE,5AFE..AE110,114199505-200008

16361FAN

main16361-02050i4AFE..AE114..5F;4AFE..AE111..4FC199505-199707

-11020 TO DOUTOU

main16361-02110i4AFE..AE114..5F;5AFE..AE110..4FC199811-199910

main16361-11010i5AFE..AE110;4AFE..AE111..5F199505-200008

main16361-11020i4AGE..AE111..4FC199505-199707

-02050 TO DOUTOU

main16361-11020i4EFE..EE111..3FC199505-200008

main16361-11020i4AGE..AE111..4FC199811-199910

main16361-63020i2C..CE110..4FC;2C,3CE..CE114,116199505-200008

sub16361-74070

main16361-64060i3CE..CE113..4FC199804-200008

16363MOTOR, COOLING FAN

main16363-02040i4AFE..AE114..5F;5AFE..AE110..4FC199505-199707

-74020 TO DOUTOU

main16363-15120i4AFE,5AFE..AE110,111..5F199505-200008

main16363-64170i3CE..CE113..4FC199804-200008

main16363-74020i4AFE..AE114..5F;5AFE..AE110..4FC199505-199707

-02040 TO DOUTOU

main16363-74020i4EFE..EE111..3FC199505-200008

main16363-74030i2C..CE114;2C..CE110..4FC199505-200008

16381BAR, FAN BELT ADJUSTING

main16381-11030i4EFE..EE111199505-200008

main16381-15080i4AFE,5AFE..AE11#199505-200008

main16381-16080i4AGE..AE111199704-200008

sub16381-16070

main16381-64080i2C..CE11#199505-199804

main16381-64180i3CE..CE11#199804-200008

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i4AFE,5AFE..AE110,114199505-200008

sub16385-15030

main16385-64011i2C,3CE..CE11#199505-200008

16400RADIATOR ASSY

main16400-02370i4A#..AE111,114..MTM199811-199910

main16400-02380i5AFE..AE110..4FC199811-199910

main16400-15501i4AFE,5AFE..AE110,111..4FC199505-199704

sub16400-16690

main16400-15660i4EFE..EE111..3FC199505-200008

main16400-15670i5AFE..AE110..5F199505-200008

main16400-15680i4EFE..EE111..4F199505-199704

sub16400-16640

main16400-15690i4AFE..AE111,114..5F199505-199704

sub16400-16660

main16400-16441i4AFE..AE114..4FC199505-199704

sub16400-16720

main16400-16640i4EFE..EE111..MTM199704-200008

sub16400-16680

main16400-16660i4A#..AE111,114..MTM199704-200008

sub16400-16680

main16400-16660i4A#..AE111,114..MTM199811-199910

sub16400-16680

main16400-16670i4AGE..AE111..4FC199704-200008

sub16400-16690

main16400-16690i5AFE..AE110..4FC199704-200008

main16400-16690i5AFE..AE110..4FC199811-199910

main16400-16720i4AFE..AE114..4FC199704-200008

main16400-64631i2C..CE110..5F199505-199704

sub16400-6A070

main16400-64641i2C..CE110..4FC199505-199704

sub16400-6A080

main16400-64651i2C..CE114199505-199704

sub16400-6A060

main16400-6A060i2C,3CE..CE114,116199704-200008

sub16400-6A160

main16400-6A070i2C,3CE..CE110,113..5F199704-200008

sub16400-6A160

main16400-6A080i2C..CE110..4FC199704-199804

sub16400-6A081

main16400-6A081i3CE..CE113..4FC199804-200008

16470TANK ASSY, RADIATOR RESERVE

main16470-15090i4EFE..EE111199505-199704

main16470-15100i4A#,5AFE..AE11#199704-200008

main16470-64130i2C,3CE..CE11#199505-200008

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16471-64130i2C..CE11#199505-200008

main16478-15090i4EFE..EE111199505-200008

main16478-64130i2C,3CE..CE11#199505-200008

main90445-12078i4EFE..EE111199505-200008

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2C..CE11#199505-200008

16471CAP SUB-ASSY, RESERVE TANK

main16405-15100i4AFE,5AFE..AE11#199505-200008

main16405-64080i2C,3CE..CE11#199505-200008

16533SUPPORT, RADIATOR, UPPER

main16533-02020i4EFE..EE111199505-200008

main16533-02020i4AFE,5AFE..AE11#199505-200008

-15120 TO DOUTOU

main16533-15120i4EFE..EE111199505-200008

-02020 TO DOUTOU

main16533-15120i4EFE..EE111199505-200008

main16533-64120i2C,3CE..CE11#199505-200008

16535SUPPORT, RADIATOR, LOWER

main16535-74070i2C..CE11#199505-199704

main90916-04002i4EFE..EE111..4F199505-199704

main90916-04002i4EFE..EE111..4F199505-199704

main90916-04003i4AFE,5AFE..AE110,111..4FC199505-199704

main90916-04003i4AFE,5AFE..AE110,111..4FC199505-200008

TOYOTA GOUSEI

main90916-04005i4AFE..AE114..4FC199505-200008

main90916-04006i5AFE..AE110199505-200008

main90916-04009i2C,3CE..CE11#199704-200008

16571HOSE, RADIATOR, INLET

main16571-11130i4EFE..EE111199505-200008

main16571-15160i4AFE,5AFE..AE110,114199505-200008

main16571-16250i4AGE..AE111199704-200008

main16571-64250i2C..CE11#199505-199804

main16571-64320i3CE..CE11#199804-200008

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i4EFE..EE111199505-200008

main90467-34003i4EFE..EE111199505-200008

sub90467-34004

main90467-37002i2C..CE11#199505-199601

sub90467-37005

main90467-37005i2C..CE11#199601-200008

16572HOSE, RADIATOR, OUTLET

main16572-11220i4EFE..EE111..4F199505-200008

main16572-11230i4EFE..EE111..3FC199505-199612

sub16572-11231

main16572-11231i4EFE..EE111..3FC199612-200008

main16572-15210i4AFE,5AFE..AE110,114199505-200008

main16572-16120i4AGE..AE111199704-200008

main16572-64200i2C,3CE..CE11#199505-200008

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i4EFE..EE111199505-200008

main90467-34003i4EFE..EE111199505-200008

sub90467-34004

main90467-37002i2C,3CE..CE11#199505-200008

INLET SIDE

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-02051i4AFE..AE114..5F;4AFE..AE111..4FC199505-199707

-15271 TO DOUTOU

main16711-02130i4EFE..EE111..3FC199909-199910

main16711-02140i4AFE..AE114..5F;5AFE..AE110..4FC199811-199910

main16711-15261i4AFE,5AFE..AE110,111..5F199505-200008

main16711-15271i4AFE..AE114..5F;4AFE..AE111..4FC199505-199707

-02051 TO DOUTOU

main16711-15271i4AFE..AE114..5F;5AFE..AE110..4FC199811-199910

main16711-15271i4AFE..AE114..5F;5AFE..AE110..4FC199707-200008

main16711-15281i4AFE..AE114..4FC199505-200008

main16711-16221i4EFE..EE111..4F199505-200008

main16711-16231i4EFE..EE111..3FC199505-200008

main16711-16231i4EFE..EE111..3FC199909-199910

main16711-16241i4AGE..AE111..6F199704-200008

main16711-16251i4AGE..AE111..4FC199704-200008

main16711-64301i2C..CE110..5F199505-200008

main16711-64311i2C..CE110..4FC;2C,3CE..CE114,116199505-200008

main16711-64480i3CE..CE113..4FC199804-200008

1903

2211

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9011606136

main90116-06136

9011908419

main90119-08419

9011910194

main90119-10194

9017906143

main90179-06143

9017906307

main90179-06307

9017908053

main90179-08053

9017908153

main90179-08153

9151180835

main91511-80835

91511B0816

main91511-B0816

9162140814

main91621-40814

9165160616

main91651-60616

9211260835

main92112-60835

9212260818

main92122-60818

9613541300

main96135-41300

9955510200

main99555-10200

48 parts on this diagram · 9 diagrams in section
