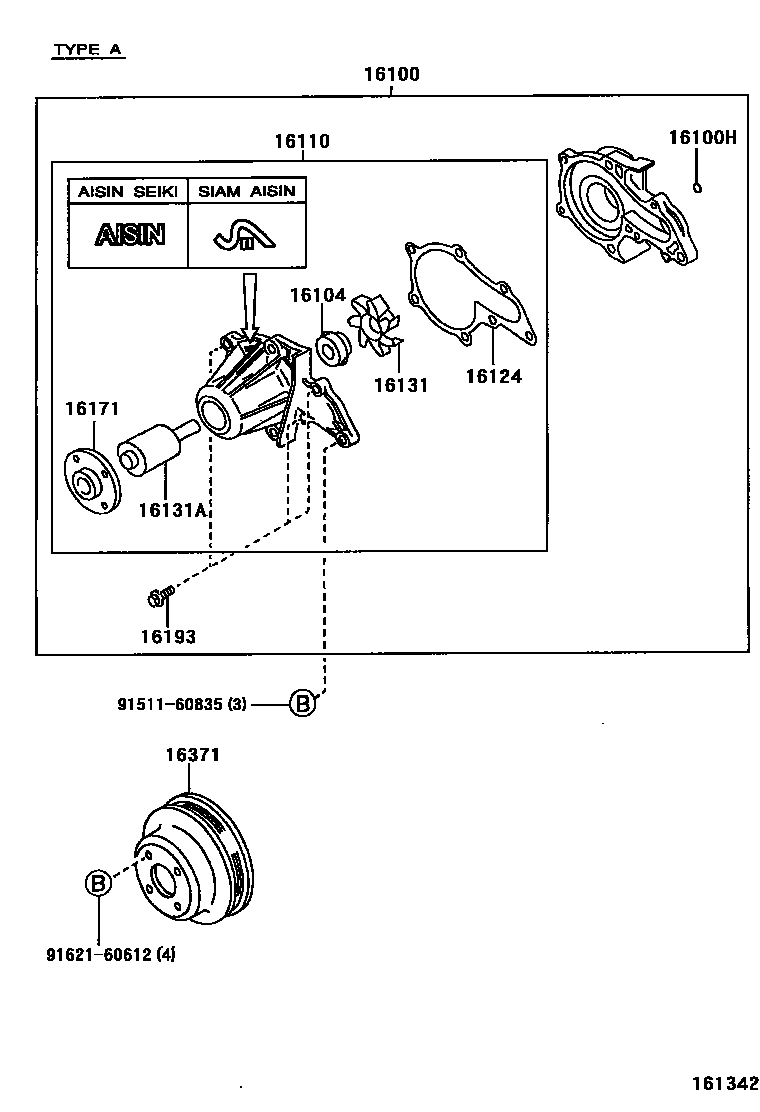

WATER PUMP

0001 1TYPE A 0002 1TYPE B 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-09120i4AFE,5AFE..AE110,114199811-200008

main16100-19226i4EFE..EE111199505-200008

main16100-19285i4AGE..AE111199704-200008

main16100-19295i4AFE,5AFE..AE110,114199505-199811

sub16100-19355

main16100-19295i4AFE,5AFE..AE110,114199811-200008

sub16100-19355

main16100-69295i2C..CE11#199505-199704

sub16100-69296

main16100-69296i2C,3CE..CE11#199704-199811

sub16100-69425

main16100-69298i3CE..CE11#199811-200008

sub16100-69435

16100HRING, O(FOR WATER PUMP)

main96761-24035i4A#,5AFE..AE11#199505-200008

16104SEAL SET, WATER PUMP

main16104-46060i4EFE..EE111199611-200008

main16104-54030i4AFE,5AFE..AE110,114199605-199708

main16104-74010i4AFE,5AFE..AE11#199505-200003

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19106i4EFE..EE111199505-199611

main16110-19107i4EFE..EE111199611-200008

main16110-19145i4AFE,5AFE..AE11#199505-199610

sub16110-19146

main16110-19146i4AFE,5AFE..AE110,114199610-200008

main16110-19195i4AGE..AE111199704-200008

main16110-19205i4AFE,5AFE..AE11#199505-200008

16124GASKET, WATER PUMP COVER

main16124-10013i4EFE..EE111199505-200008

main16124-15110i4AFE,5AFE..AE110,114199505-200008

main16124-16040i4AGE..AE111199704-200008

main16124-16060i4AFE,5AFE..AE11#199505-200008

16131ROTOR, WATER PUMP

main16131-10013i4EFE..EE111199611-200008

main16131-15080i4EFE..EE111199505-199611

main16131-16020i4AFE,5AFE..AE11#199505-200003

main16131-16090i4AGE..AE111199605-200008

16131ABEARING, WATER PUMP

main90029-36809i4EFE..EE111199505-199611

main90029-36846i4AFE,5AFE..AE11#199505-200008

main90029-36850i4EFE..EE111199611-200008

16171SEAT, WATER PUMP PULLEY

main16171-10012i4AFE,5AFE..AE11#199505-200008

main16171-15020i4AGE..AE111199704-200008

main16171-15070i4AFE,5AFE..AE11#199505-199610

main16171-15071i4AFE,5AFE..AE11#199610-200008

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011i4AFE,5AFE..AE110,114199505-200008

main16193-15100i4AFE,5AFE..AE110,114199505-200008

16371PULLEY, FAN

main16371-02030i4AFE,5AFE..AE110,114199811-200008

main16371-15070i4AFE,5AFE..AE11#199505-199604

sub16371-15071

main16371-15071i4AFE,5AFE..AE110,114199604-199811

main16371-15071i4AFE,5AFE..AE110,114199811-200008

main16371-16030i4AGE..AE111199704-200008

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 5 diagrams in section
