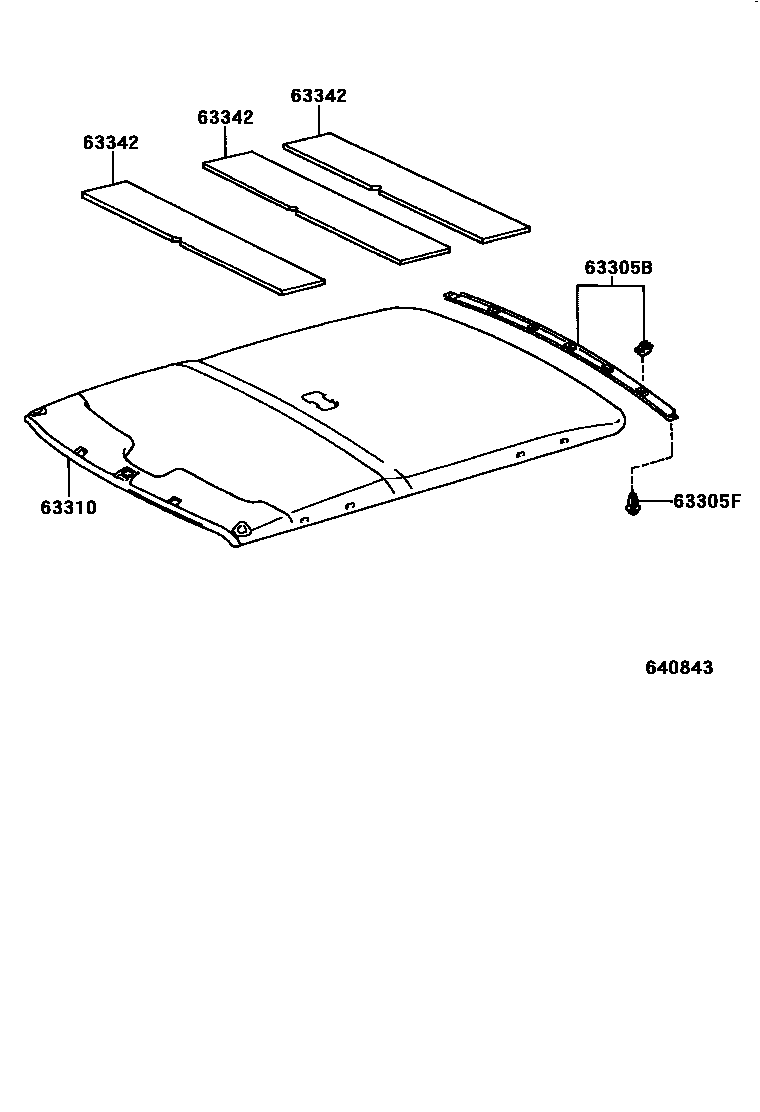

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12150-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199203

TAUPE,TRIM9#

main63305-12150-P0iAE10#,CE100,104,EE101199106-199203

SHADOW GRAY,TRIM1#

main63305-12150-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199203

DARK BLUE,TRIM8#

main63305-12151-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199505

TAUPE,TRIM9#

main63305-12151-P0iAE10#,CE100,104,EE101199203-199505

SHADOW GRAY,TRIM1#

main63305-12151-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199305

DARK BLUE,TRIM8#

63305FCLIP(FOR ROOF HEADLINING TRIM)

main90467-05062-B0iAE10#,CE100,104,EE101199106-199203

SHADOW GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-13170-S3iAE109,CE102,105,106,107,108,109,EE102,103,104199109-199409

LIGHT GRAY,TRIM1#

main63310-13230-B0iCE108,EE104,108199109-199409

main63310-13230-B0iCE108,EE104,108199109-199409

LIGHT GRAY,TRIM1#

main63310-1A260-K1iAE100,104,CE100,104,EE101..LX,XE199106-199505

LIGHT TAUPE,TRIM9#

main63310-1A260-S3iAE100,104,CE100,104,EE101..DX,LX,XE199106-199505

LIGHT GRAY,TRIM1#

main63310-1A260-W5iAE100,104,CE100,104,EE101..LX,XE199106-199305

LIGHT BLUE,TRIM8#

main63310-1A270-B0iAE10#,CE100,104..GT,SEG,SEL199106-199505

LIGHT GRAY,TRIM1#

main63310-1A270-J0iAE10#,CE100,104..SEG,SEL199106-199305

LIGHT BLUE,TRIM8#

main63310-1A270-K0iAE10#,CE100,104..SEG,SEL199106-199505

LIGHT TAUPE,TRIM9#

main63310-1A310-B1iAE100,104..ATM..(LX,SEL)199106-199505

main63310-1A310-J1iAE100,104..4FC..SEL199106-199305

main63310-1A310-K1iAE100,104..4FC..SEL199106-199505

63342PAD, ROOF SILENCER, NO.2

main63342-12060iAE10#,CE100,104,EE101199106-199505

4 parts on this diagram · 2 diagrams in section
