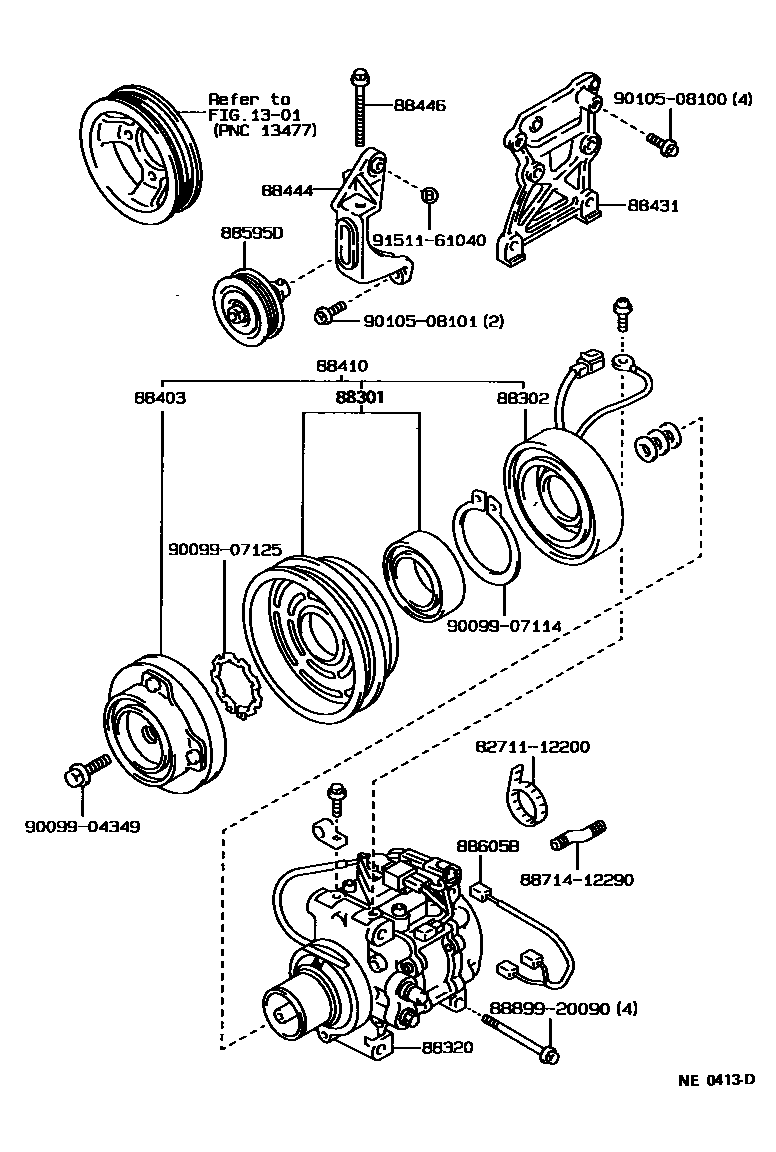

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0006 1

1301

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12180iAE91,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..EFI198905-199106

main88412-16050iEE96..4F198705-199108

main88412-32011iCE90..LX198905-199106

main88412-32011iCE95;CE90..MX,SE198905-199106

main88412-32011iCE96198705-199108

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12090iCE96198705-199108

main88411-14050iCE96..CTD,DX,XL198808-199108

main88411-14050iCE95;CE90..MX,SE198905-199106

main88411-14050iCE95;CE90..MX,SE198905-199106

main88411-16021iEE90,98;EE96..3FC198705-199108

sub88411-60030

main88411-60030iAE91,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..EFI198905-199106

88320COMPRESSOR ASSY, COOLER

main88320-12360iCE90..DX;CE96..STD198705-199108

sub88320-35H90

main88320-12530iEE90..LX,MX198705-198803

sub88320-12860

main88320-12550iAE92198705-198803

main88320-12560iAE91,95..AV2,G,SE,XI198705-198803

main88320-12570iEE90..LX,MX198705-198803

main88320-12580iEE90198705-198803

main88320-12600iEE90198705-198803

A/C.SW.=1PB

main88320-12610iCE90..5F..SE;CE90..4FC..(MX,SE)198805-199108

main88320-12610iCE90..MX198705-198905

main88320-12620iEE96,98198803-198908

sub88320-12750

main88320-12630iEE96,98;EE90..LX,MX198803-198908

sub88320-12760

main88320-12650iAE91,95..AV2,G,L,LX,MX,SE,XI198803-198908

sub88320-12780

main88320-12660iAE92198803-198905

main88320-12670iEE96,98;EE90..LX,MX198803-198905

sub88320-12810

main88320-12680iEE9#198803-198905

sub88320-12800

main88320-12680iEE96,98198905-198908

A/C.SW.=1PB

sub88320-12800

main88320-12750iEE9#198905-199108

main88320-12760iEE98;EE96..3FC;EE90..LX,MX198908-199108

main88320-12760iEE90..LX,MX198905-199108

main88320-12780iAE91,95..G,L,LX,MX,SE,XS198905-199106

main88320-12790iAE92198905-199106

main88320-12800iEE90,96198908-199108

A/C.SW.=1PB

main88320-12800iEE90198905-198908

main88320-12810iEE96..3FC;EE90..LX,MX198905-199108

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iCE96198705-199108

main88403-12030iCE95;CE90..MX,SE198905-199106

main88403-12030iCE95;CE90..MX,SE198905-199106

main88403-16011iEE96..4F198705-199108

main88403-16011iAE91,95..(AV1,AV2,G,L,LX,MX,RVS,SE)..EFI198905-199106

88410CLUTCH ASSY, MAGNET

main88410-10210iEE96..4F198905-199108

sub88410-1A080

main88410-12160iCE90..MX198705-198908

main88410-12170iCE90..LX198705-198908

main88410-12250iAE95..AV2198705-198908

main88410-12250iEE96..4F198908-199108

main88410-12290iAE91..DX198905-199106

sub88410-1A090

main88410-12340iCE96198905-199108

main88410-12350iCE90..LX198905-199108

main88410-16050iEE9#198705-198908

sub88410-1A080

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370iEE96..4F198705-199108

main88431-12390iAE92198705-199106

main88431-12390iAE92198803-198905

main88431-12400iAE95..4FC;AE91..(G,L,LX,MX,SE)..EFI198908-199106

main88431-12400iAE95..5F..AV2198905-199106

main88431-12400iAE91,95..DX,L,LX,MX198705-199106

main88431-12430iAE91,95..AV1,DX,L,LX,MX,RVS198712-199106

main88431-12430iAE95..4FC..AV2198905-199106

main88431-12430iEE96..4F198908-199108

main88431-12440iAE92198803-198905

main88431-12470iCE90,96..CTD,DX,XL198905-199108

main88431-12490iAE91..EFIS198905-199106

88444BRACKET, IDLE PULLEY

main88444-10031iEE90,96198705-199108

main88444-12040iCE96198705-198908

main88444-12050iCE90,96..CTD,DX,XL198905-199108

main88444-16030iEE98198808-199108

88446BOLT, IDLE PULLEY

main88446-12030iEE90;EE96..3FC;AE91,EE98..DX,XL198705-199108

main88446-35010iAE92198705-199106

88595DPULLEY ASSY, IDLE

main88440-12170iCE90..LX198705-199108

main88440-12190iCE90,96..CTD,DX,XL198905-199108

main88440-17010iAE91,95..AV2,G,L,LX,MX,SE,XI,XS198705-199106

main88440-17010iEE96..4F198908-199108

main88440-32030iAE92198705-199106

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-1A710iAE92198705-198905

main88605-1A750iEE90..LX,MX198705-199106

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8871412290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12290

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

20 parts on this diagram · 5 diagrams in section
