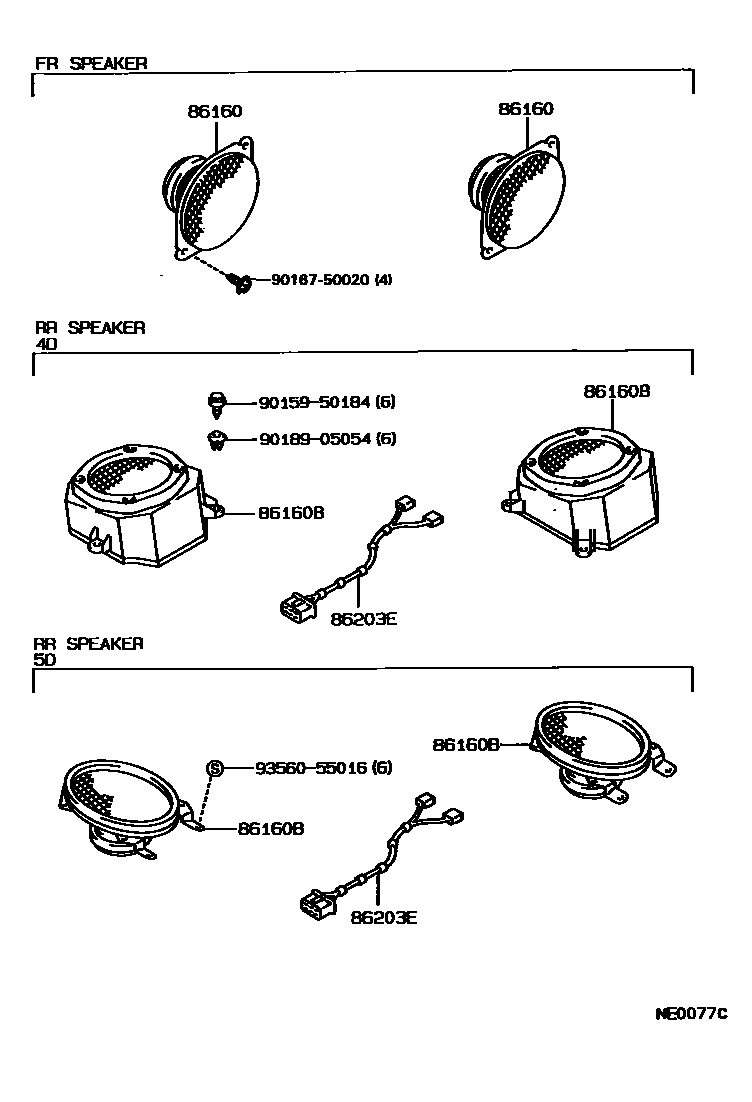

SPEAKER

0001 1 0002 1 0003 1

86160SPEAKER ASSY, FRONT NO.1

main86160-12280iAE95..AV2198705-199108

main86160-12280iAE95..AV2198809-198810

main86160-12290iEE96,98..4F..(DX,XL);CE96,EE98..(3FC,4FC,5F)..DX198705-199108

86160BSPEAKER ASSY, REAR

main86160-12230iAE91..SE198801-198803

sub86160-12231

main86160-12231iAE91..SE..EFI198805-199106

main86160-12240iAE91..SE198801-198803

sub86160-12241

main86160-12241iAE91..SE..EFI198805-199106

main86160-12250iAE91,92..5D198705-198905

main86160-12260iAE91,92..5D198705-198905

86203EWIRE, STEREO COMPONENT SPEAKER, NO.1

main86205-12010iAE91..XI;AE91..CBR;EE90..LX,MX;AE92,95,CE90..4D,5D198705-198905

9015950184

main90159-50184

9016750020

main90167-50020

9018905054

main90189-05054

9356055016

main93560-55016

7 parts on this diagram · 3 diagrams in section
