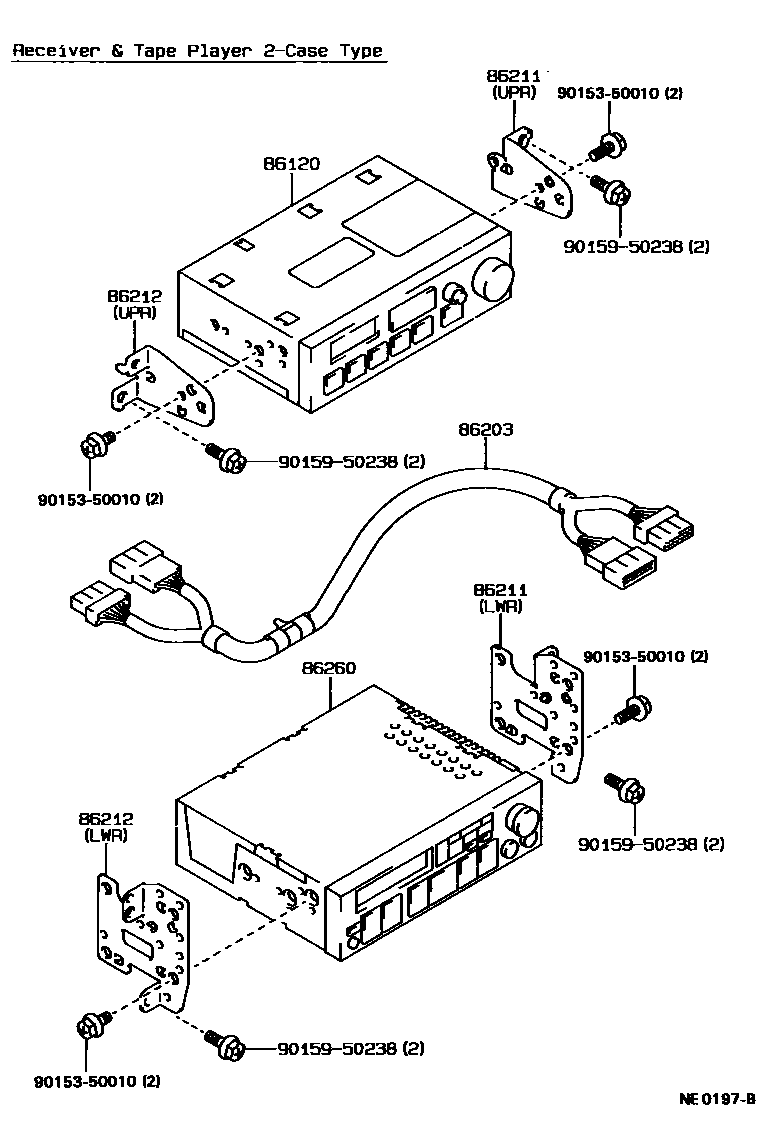

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-12440iAE95..WG198705-198908

AM/FM MPX,ETR/2-AMP

main86120-12450iAE95..AV2198809-198910

main86120-12450iAE91..SE..EFI198811-198812

main86120-12450iAE91,95,CE90..SE198901-198904

main86120-12540iAE95..WG198705-198908

main86120-12550iCE96,EE9#198705-199108

main86120-12550iEE90..DX198905-199106

main86120-12590iCE96,EE9#198705-199108

main86120-12590iEE90..DX198905-199106

main86120-12610iAE91..SE..EFIS198905-199106

*AFM

main86120-12660iAE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI)198905-199106

main86120-12660iAE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI)198905-199108

main86120-12680iAE95..WG198908-199009

main86120-32180iAE91,92..GT,XI198705-198905

*ATM/*AF/4-AMP/2-DIN

86203WIRE, RADIO

main86203-12100iAE95..AV2198705-199106

main86203-12100iEE98;CE96,EE96..4F,4FC,5F198705-199108

main86203-12101iAE91..SE198801-198803

main86203-12120iAE91,95,CE90..AV1,AV2,G,RVS,SE198705-199009

main86203-12130iAE9#,CE90;EE90..LX,MX198705-198802

sub86203-12131

main86203-12131iAE95..WG198802-199009

main86203-12190iAE95..SE;AE91,92..EFI198705-198802

sub86203-12191

main86203-12191iAE95..WG198802-199009

main86203-12200iEE96..3FC199006-199108

main86203-12230iAE95..WG198802-199009

main86203-12230iAE91..SE..EFI198811-198812

main86203-12230iAE91,95,CE90..SE198901-198904

main86203-12240iAE91..SE..EFI198805-198905

main86203-12240iAE91,95,CE90,95..MX199005-199106

main86203-12240iAE95..AV2,RVS198805-199009

main86203-12250iAE91,95,CE90,95,EE90..AV1,DX,G,L,LX,MX,RVS198802-199106

main86203-12250iAE91,95,CE90..SE..(CBR,DSL)198802-199106

86211BRACKET, RADIO, NO.1

main86211-12210iAE91,95,CE9#,EE9#..(AV1,AV2,CTD,DX,G,L,LX,MX,RVS,SE,STD,XL)..(CBR,DSL,EFI)198705-199108

main86211-12220iAE91,95,CE9#,EE9#..CBR,DSL,EFI198705-199108

main86211-12220iAE91,95,CE9#,EE9#..CBR,DSL,EFI198905-199108

LWR

86212BRACKET, RADIO, NO.2

main86212-12190iAE91,95,CE9#,EE9#..(AV1,AV2,CTD,DX,G,L,LX,MX,RVS,SE,STD,XL)..(CBR,DSL,EFI)198705-199108

main86212-12200iAE92,EE90..DX,GT;AE91,CE96,EE96..(CTD,SE,XS)..(CBR,DSL,EFIS)198905-199108

LWR

main86212-12200iAE9#,CE9#,EE9#198705-199108

86260TAPE PLAYER ASSY

main86260-12170iAE91..SE198801-198803

main86260-12170iAE91..SE..EFI198805-198905

main86260-12180iAE95..WG198808-199009

main86260-12190iAE91..SE..EFI199005-199106

main86260-12190iAE91..SE198909-199106

main86260-14280iAE95..EFI198802-198808

main86260-14290iAE91,95,CE90..SE198901-198904

main86260-14290iAE95..WG198908-199009

main86260-14290iAE95..WG198802-198908

main86260-14290iAE91..SE..EFI198811-198812

main86260-19105iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-199108

main86260-19115iEE96..4F;AE91,95,CE9#,EE90,98..AV1,CTD,DX,G,L,LX,MX,RVS,STD,XL198705-199108

main86260-19125iAE91..XI;AE91..CBR;AE92,95,CE90,EE90..AV2,DX,GT,LX,MX,RVS,SE198705-199106

main86260-19135iAE91..XS;AE9#,CE90,95,EE90..(AV2,DX,G,GT,L,LX,MX,RVS,SE)..(CBR,DSL,EFI)198705-199106

main86260-19135iAE91..XS;AE9#,CE90,95,EE90..(AV2,DX,G,GT,L,LX,MX,RVS,SE)..(CBR,DSL,EFI)198905-199106

main86260-19135iAE91..SE..EFI198805-198905

main86260-19145iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-199108

main86260-19155iAE91..XI;AE91..CBR;AE92,95,CE90,EE90..AV2,DX,GT,LX,MX,RVS,SE198705-199106

main86260-19165iAE91..XS;AE9#,CE90,95,EE90..(AV2,DX,G,GT,L,LX,MX,RVS,SE)..(CBR,DSL,EFI)198705-199106

main86260-19165iAE91..XS;AE9#,CE90,95,EE90..(AV2,DX,G,GT,L,LX,MX,RVS,SE)..(CBR,DSL,EFI)198905-199106

main86260-19165iAE91..SE..EFI198805-198905

main86260-19175iEE96..4F;AE91,95,CE9#,EE90,98..AV1,CTD,DX,G,L,LX,MX,RVS,STD,XL198705-199108

9015350010

main90153-50010

9015950238

main90159-50238

7 parts on this diagram · 3 diagrams in section
