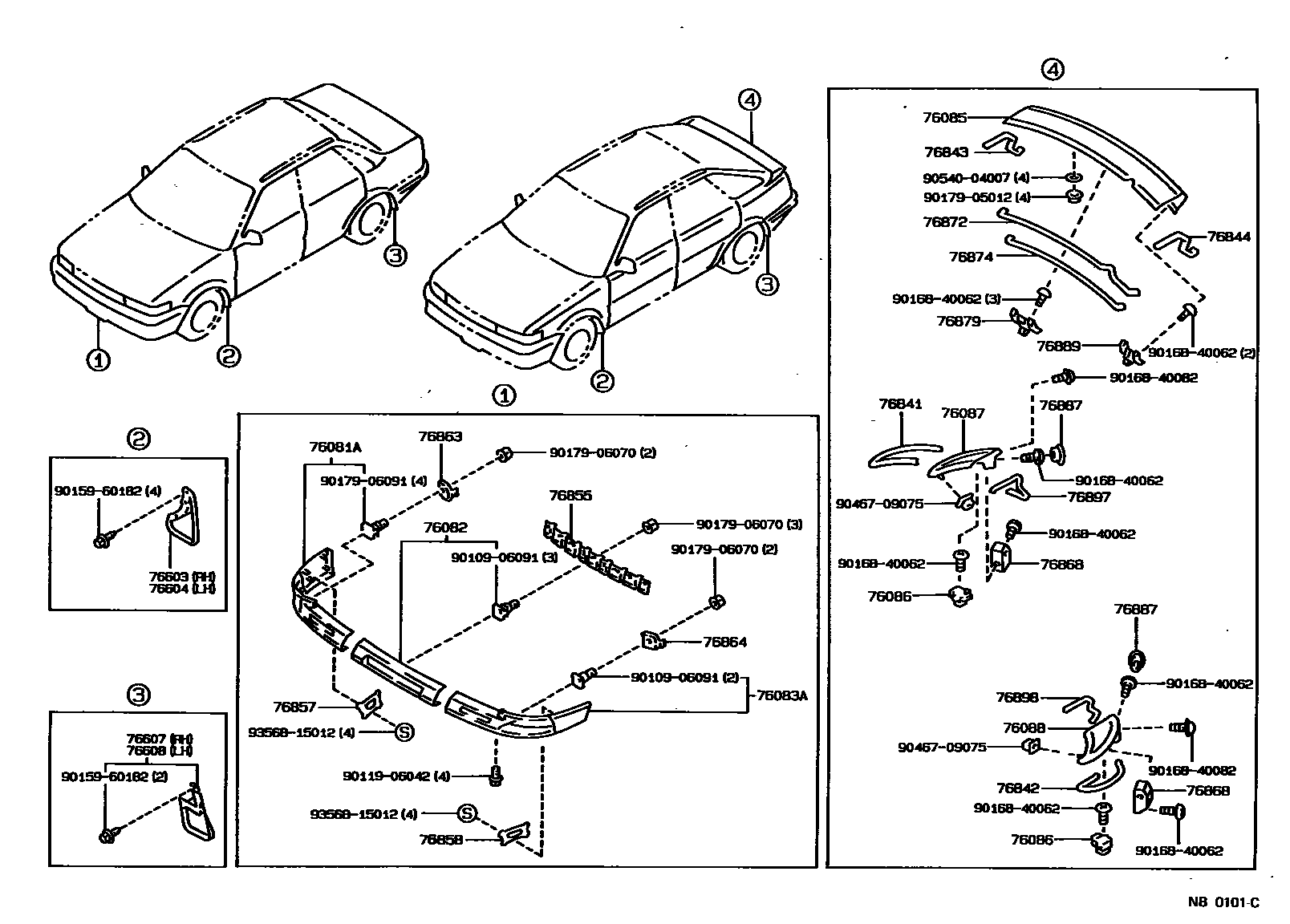

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

76081ASPOILER SUB-ASSY, FRONT RH

main76081-12060-02iAE92198705-198905

SUPER RED 2,3E5

main76081-12060-03iAE92198705-198905

GRAY M,168

main76081-12060-08iAE91..SE..EFI198811-198905

main76081-12060-08iAE92198705-198905

SUPER WHITE 2,040

main76081-12060-13iAE92..5D198705-198905

M GRAY M,26E

76082SPOILER SUB-ASSY, FRONT CENTER

main76082-12010-02iAE92198705-198905

SUPER RED 2,3E5

main76082-12010-03iAE92198705-198905

GRAY M,168

main76082-12010-08iAE92198705-198905

SUPER WHITE 2,040

main76082-12010-08iAE91..SE..EFI198811-198905

main76082-12010-13iAE92..5D198705-198905

M GRAY M,26E

76083ASPOILER SUB-ASSY, FRONT LH

main76083-12040-02iAE92198705-198905

SUPER RED 2,3E5

main76083-12040-03iAE92198705-198905

GRAY M,168

main76083-12040-08iAE91..SE..EFI198811-198905

main76083-12040-08iAE92198705-198905

SUPER WHITE 2,040

main76083-12040-13iAE92..5D198705-198905

M GRAY M,26E

76085SPOILER SUB-ASSY, REAR

main76085-12901iAE91,92..5D..(G,GT,XI)198705-199106

main76085-12904iAE95..RVS198802-199009

main76085-12904iAE95..AV2198809-198810

76086RETAINER SUB-ASSY, REAR SPOILER

main76086-12050iAE91,92..5D..(G,GT,XI)198705-199106

76087SPOILER SUB-ASSY, REAR NO.1

main76087-12900iAE91,92..5D..(G,GT,XI)198705-198905

main76087-12901iAE91,92..5D..(G,GT,XS)198905-199106

76088SPOILER SUB-ASSY, REAR NO.2

main76088-12900iAE91,92..5D..(G,GT,XI)198705-198905

main76088-12901iAE91,92..5D..(G,GT,XS)198905-199106

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12050iAE9#,CE9#,EE9#198705-198905

main76621-12060-02iAE91,95,CE90,EE90..MX198805-198905

sub76621-12060

main76621-12060-02iAE9#,CE90..AV2,G,GT,RVS,SE,XI198705-198905

SUPER RED 2,3E5

sub76621-12060

main76621-12060-03iAE91,92..G,GT,XS198705-199106

GRAY M,168

sub76621-12060

main76621-12060-03iAE91,95,CE90,EE90..MX198805-198905

sub76621-12060

main76621-12060-04iAE95..AV2,RVS198802-198908

DARK BLUE M,22G

sub76621-12060

main76621-12060-05iAE91,CE90,EE90..MX198805-198905

sub76621-12060

main76621-12060-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76621-12060

main76621-12060-07iAE95..AV2,RVS198802-198905

DARK GREEN M,21G

sub76621-12060

main76621-12060-08iAE9#,CE90,95,EE90..AV2,G,GT,MX,SE,XS198705-199106

SUPER WHITE 2,040

sub76621-12060

main76621-12060-08iAE91,95,CE90,EE90..MX198805-198905

sub76621-12060

main76621-12060-12iAE9#,CE90,95,EE90..G,GT,MX,SE,XS198710-199108

RED MAICA,3H4

sub76621-12060

main76621-12060-12iAE91,95,CE90,EE90..MX198805-198905

sub76621-12060

main76621-12060-13iAE91,92..5D..(G,GT,XS)198905-199105

MEDIUM GRAY M,22M

sub76621-12060

main76621-12060-13iAE91,92..5D..(G,GT,XI)198705-198905

MEDIUM GRAY M,26E

sub76621-12060

main76621-12060-14iAE95..AV2198908-199009

DARK BLUE MICA M,25M

sub76621-12060

main76621-12060-15iAE91,95,CE90,95,EE90..MX,SE198905-199104

LIGHT BEIGE M,4K1

sub76621-12060

main76621-12060-17iAE95..AV2198905-199106

GRAYISH GREEN M,6K6

sub76621-12060

main76621-12060-17iAE95..AV2198909-198910

sub76621-12060

main76621-12060-17iAE95..AV2198908-199106

GRAYISH GREEN M,26M

sub76621-12060

main76621-12060-22iAE91,95,CE90,95,EE90..MX,SE198905-199004

DARK ROSE M,3J1

sub76621-12060

main76621-12060-33iAE95..AV2,RVS198802-199009

GRAY,20G

sub76621-12060

main76621-12110iAE95..AV2198809-198810

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12050iAE9#,CE90,EE90..AV1,AV2,G,GT,L,MX,RVS,SE,XI198705-198905

main76622-12060-02iAE91,95,CE90,EE90..MX198805-198905

sub76622-12060

main76622-12060-02iAE9#,CE90..AV2,G,GT,RVS,SE,XI198705-198905

SUPER RED 2,3E5

sub76622-12060

main76622-12060-03iAE91,92..G,GT,XS198705-199106

GRAY M,168

sub76622-12060

main76622-12060-03iAE91,95,CE90,EE90..MX198805-198905

sub76622-12060

main76622-12060-04iAE95..AV2,RVS198802-198905

DARK BLUE M,22G

sub76622-12060

main76622-12060-05iAE91,CE90,EE90..MX198805-198905

sub76622-12060

main76622-12060-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76622-12060

main76622-12060-07iAE95..AV2,RVS198802-198905

DARK GREEN M,21G

sub76622-12060

main76622-12060-08iAE91,95,CE90,EE90..MX198805-198905

sub76622-12060

main76622-12060-08iAE9#,CE90,EE90..AV2,G,GT,MX,RVS,SE,XS198705-199106

SUPER WHITE 2,040

sub76622-12060

main76622-12060-12iAE91,95,CE90..SE198710-199108

RED MAICA,3H4

sub76622-12060

main76622-12060-12iAE91,95,CE90,EE90..MX198805-198905

sub76622-12060

main76622-12060-13iAE91,92..5D..(G,GT,XS)198905-199105

MEDIUM GRAY M,22M

sub76622-12060

main76622-12060-13iAE91,92..5D..(G,GT,XI)198705-198905

MEDIUM GRAY M,26E

sub76622-12060

main76622-12060-14iAE95..AV2198908-199009

DARK BLUE MICA M,25M

sub76622-12060

main76622-12060-15iAE91,95,CE90,95,EE90..MX,SE198905-199106

LIGHT BEIGE M,4K1

sub76622-12060

main76622-12060-17iAE9#,CE90,EE90..G,GT,MX,SE,XS198905-199106

GRAYISH GREEN M,6K6

sub76622-12060

main76622-12060-17iAE95..AV2198908-199106

GRAYISH GREEN M,26M

sub76622-12060

main76622-12060-17iAE95..AV2198909-198910

sub76622-12060

main76622-12060-22iAE91,95,CE90,95,EE90..MX,SE198905-199004

DARK ROSE M,3J1

sub76622-12060

main76622-12060-33iAE95..AV2,RVS198802-199009

GRAY,20G

sub76622-12060

main76622-12110iAE95..AV2198809-198810

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19245iAE9#,CE90,EE90..G,GT,L,MX,SE,XI198705-199108

main76625-19265iCE96,EE96,98198802-199108

main76625-19275-02iAE9#,CE90..G,GT,SE,XI198705-198905

SUPER RED 2,3E5

sub76625-19275

main76625-19275-02iAE91,95,CE90,EE90..MX198805-198905

sub76625-19275

main76625-19275-03iAE91,95,CE90,EE90..MX198805-198905

sub76625-19275

main76625-19275-03iAE9#,CE90..G,GT,SE,XI198705-199106

GRAY M,168

sub76625-19275

main76625-19275-05iAE91,CE90,EE90..MX198805-198905

sub76625-19275

main76625-19275-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76625-19275

main76625-19275-07iAE9#,CE90,95,EE90..G,GT,MX,SE,XS198905-199106

GRAYISH GREEN M,6K6

sub76625-19275

main76625-19275-08iAE9#,CE90..G,GT,SE,XI198705-199106

SUPER WHITE,040

sub76625-19275

main76625-19275-08iAE91,95,CE90,EE90..MX198805-198905

sub76625-19275

main76625-19275-12iAE91,95,CE90,EE90..MX198805-198905

sub76625-19275

main76625-19275-12iAE91,95,CE90..SE198710-199108

RED MAICA,3H4

sub76625-19275

main76625-19275-13iAE91,92..5D..(G,GT,XI)198705-198905

MEDIUM GRAY M,26E

sub76625-19275

main76625-19275-13iAE91,92..5D..(G,GT,XS)198905-199105

MEDIUM GRAY M,22M

sub76625-19275

main76625-19275-15iAE91,95,CE90,95,EE90..MX,SE198905-199106

LIGHT BEIGE M,4K1

sub76625-19275

main76625-19275-22iAE91,95,CE90,95,EE90..MX,SE198905-199004

DARK ROSE M,3J1

sub76625-19275

main76625-19295-04iAE95..AV2,RVS198802-198908

DARK BLUE M,22G

sub76625-19295

main76625-19295-07iAE95..AV2,RVS198802-198908

DARK GREEN M,21G

sub76625-19295

main76625-19295-08iAE95..AV2198802-199009

SUPER WHITE 2,040

sub76625-19295

main76625-19295-13iAE95..AV2198802-199009

GRAY,20G

sub76625-19295

main76625-19295-14iAE95..AV2198908-199009

DARK BLUE MICA M,25M

sub76625-19295

main76625-19295-17iAE95..AV2198908-199009

GRAYISH GREEN M,26M

sub76625-19295

main76625-19295-17iAE95..AV2198909-198910

sub76625-19295

main76625-19305iAE95..AV2198809-198810

sub76625-19295

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19255iAE9#,CE90,EE90..G,GT,L,MX,SE,XI198705-199108

main76626-19275iCE96,EE96,98198802-199108

main76626-19285-02iAE9#,CE90..G,GT,SE,XI198705-198905

SUPER RED 2,3E5

sub76626-19285

main76626-19285-02iAE91,95,CE90,EE90..MX198805-198905

sub76626-19285

main76626-19285-03iAE91,95,CE90,EE90..MX198805-198905

sub76626-19285

main76626-19285-03iAE9#,CE90..G,GT,SE,XI198705-199106

GRAY M,168

sub76626-19285

main76626-19285-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76626-19285

main76626-19285-05iAE91,CE90,EE90..MX198805-198905

sub76626-19285

main76626-19285-07iAE9#,CE90,95,EE90..G,GT,MX,SE,XS198905-199106

GRAYISH GREEN M,6K6

sub76626-19285

main76626-19285-08iAE9#,CE90..G,GT,SE,XI198705-199106

SUPER WHITE 2,040

sub76626-19285

main76626-19285-08iAE91,95,CE90,EE90..MX198805-198905

sub76626-19285

main76626-19285-12iAE9#,CE90,95,EE90..G,GT,MX,SE,XS198710-199108

RED MAICA,3H4

sub76626-19285

main76626-19285-12iAE91,95,CE90,EE90..MX198805-198905

sub76626-19285

main76626-19285-13iAE91,92..5D..(G,GT,XS)198905-199105

MEDIUM GRYE M,22M

sub76626-19285

main76626-19285-13iAE91,92..5D..(G,GT,XI)198705-198905

MEDIUM GRYE M,26E

sub76626-19285

main76626-19285-15iAE91,95,CE90,95,EE90..MX,SE198905-199106

LIGHT BEIGE M,4K1

sub76626-19285

main76626-19285-22iAE91,95,CE90,95,EE90..MX,SE198905-199004

DARK ROSE M,3J1

sub76626-19285

main76626-19305-04iAE95..AV2,RVS198802-198908

DARK BLUE M,22G

sub76626-19305

main76626-19305-07iAE95..AV2,RVS198802-198908

DARK GREEN M2,21G

sub76626-19305

main76626-19305-08iAE95..AV2198802-199009

SUPER WHITE 2,040

sub76626-19305

main76626-19305-13iAE95..AV2198802-199009

GRAY,20G

sub76626-19305

main76626-19305-14iAE95..AV2198908-199009

DARK BLUE MICA M,25M

sub76626-19305

main76626-19305-17iAE95..AV2198908-199009

GRAYISH GREEN M,26M

sub76626-19305

main76626-19305-17iAE95..AV2198909-198910

sub76626-19305

main76626-19315iAE95..AV2198809-198810

sub76626-19305

76841PROTECTOR, REAR SPOILER SIDE, NO.5 RH

main76841-12020iAE91,92..5D..(G,GT,XI)198705-198905

main76841-12030iAE91,92..5D..(G,GT,XS)198905-199106

76842PROTECTOR, REAR SPOILER SIDE, NO.5 LH

main76842-12020iAE91,92..5D..(G,GT,XI)198705-198905

main76842-12030iAE91,92..5D..(G,GT,XS)198905-199106

76843PROTECTOR, REAR SPOILER, NO.11 RH

main76843-12010iAE91,92..5D..(G,GT,XI)198705-199106

76844PROTECTOR, REAR SPOILER, NO.11 LH

main76844-12010iAE91,92..5D..(G,GT,XI)198705-199106

76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER

main76855-12070iAE92198705-198905

main76855-12070iAE91..SE..EFI198811-198905

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-12060iAE92198705-198905

main76857-12060iAE91..SE..EFI198811-198905

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-12060iAE92198705-198905

main76858-12060iAE91..SE..EFI198811-198905

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-12060iAE92198705-198905

main76863-12060iAE91..SE..EFI198811-198905

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76864-12030iAE92198705-198905

main76864-12030iAE91..SE..EFI198811-198905

76868RETAINER, REAR SPOILER SIDE, LH

main76868-12030iAE91,92..5D..(G,GT,XI)198705-198905

main76868-12070iAE91,92..5D..(G,GT,XS)198905-199106

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12060iAE91,92..5D..(G,GT,XI)198705-199106

76874PROTECTOR, REAR SPOILER, NO.3

main76874-12080iAE95..AV2198802-199009

main76874-12090iAE91,92..5D..(G,GT,XI)198705-199106

76879CLIP, REAR SPOILER, NO.1

main76879-12010iAE91,92..5D..(G,GT,XI)198705-199106

76887SEAL, REAR SPOILER

main76887-12010iAE91,92..5D..(G,GT,XI)198705-198905

76889CLIP, REAR SPOILER, NO.2

main76889-12010iAE91,92..5D..(G,GT,XI)198705-199106

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-12020iAE91,92..5D..(G,GT,XI)198705-198905

main76897-12030iAE91,92..5D..(G,GT,XS)198905-199106

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-12020iAE91,92..5D..(G,GT,XI)198705-198905

main76898-12030iAE91,92..5D..(G,GT,XS)198905-199106

9010906091

main90109-06091

9011906042

main90119-06042

9015960182

main90159-60182

9016840062

main90168-40062

9016840082

main90168-40082

9017905012

main90179-05012

9017906070

main90179-06070

9017906091

main90179-06091

9046709075

main90467-09075

9054004007

main90540-04007

9356815012

main93568-15012

39 parts on this diagram · 3 diagrams in section
