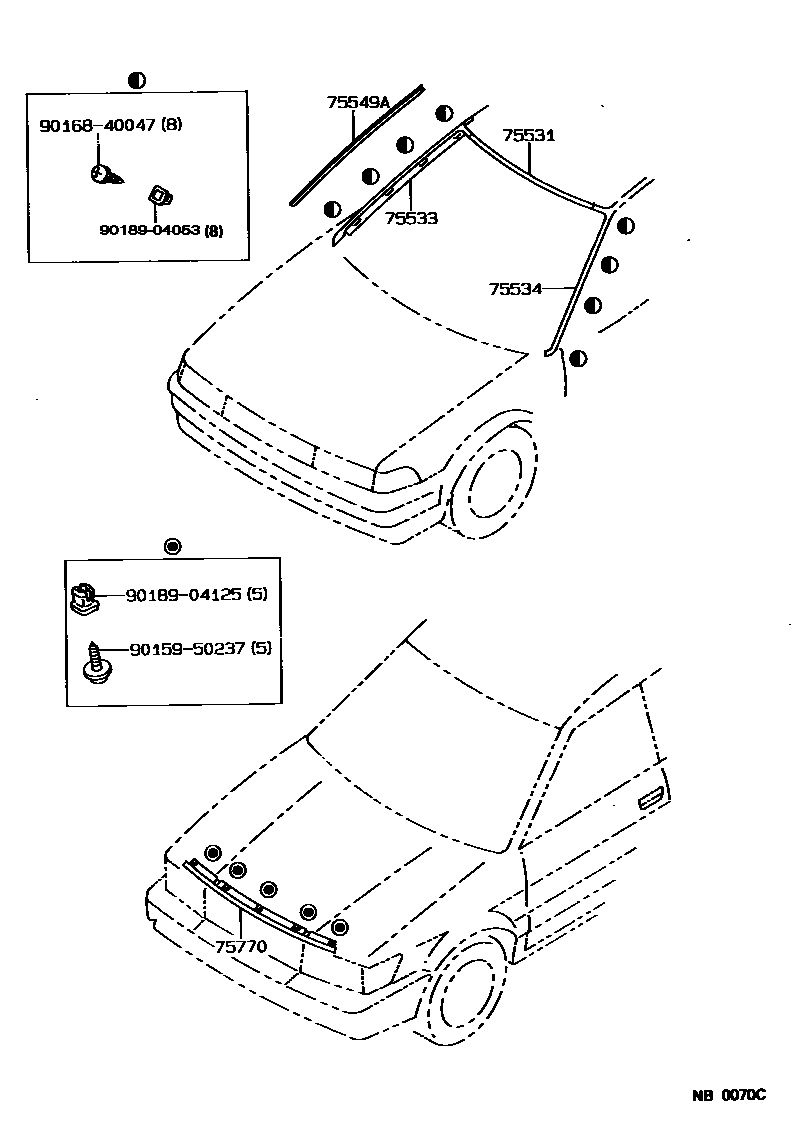

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12290iCE96,EE96,98198808-199108

main75531-12310iAE91,95,CE90,EE90..AV1,AV2,DX,RVS198705-199106

main75531-12320iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198705-199106

main75531-12420iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12320iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198705-199106

main75533-12350iCE96,EE96,98198808-198908

main75533-12370iAE91,CE90,EE90..DX198905-198908

PLANT.M12,B11

main75533-12370iAE91,95,CE90,EE90..AV1,AV2,DX,RVS198705-199106

main75533-12410iCE96,EE96,98198908-199108

main75533-12450iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12240iCE90..DX198908-199105

main75534-12250iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XI,XS198705-199106

main75534-12280iCE96,EE96,98198808-198908

main75534-12300iAE91,95,CE90,EE90..AV1,AV2,DX,RVS198705-199106

main75534-12300iAE95..WG198905-198908

PLANT.A31-A32,K21

main75534-12330iCE96,EE96,98198908-199108

main75534-12370iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

sub75534-12250

75549AMOULDING, WINDSHIELD OUTSIDE SUB

main75539-12070iAE9#,CE90,95,EE90198802-199106

75770MOULDING ASSY, HOOD, FRONT

main75770-12170iAE95..WG198802-199009

sub75770-12171

sub90189-05122

main75770-12180iAE95..AV2198809-198910

9015950237

main90159-50237

9016840047

main90168-40047

9018904053

main90189-04053

9018904125

main90189-04125

9 parts on this diagram · 2 diagrams in section
