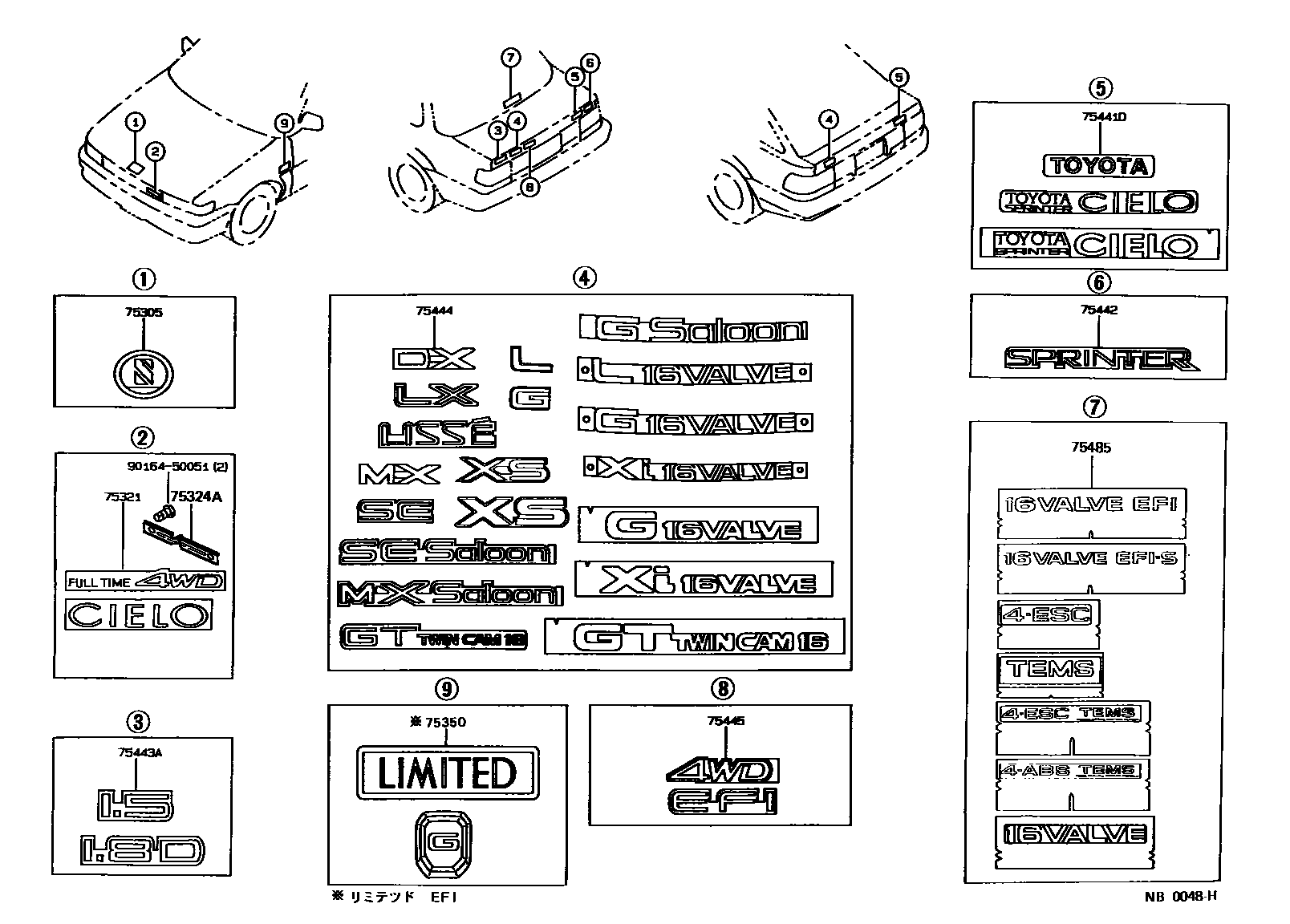

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75305EMBLEM, HOOD

main75331-12040iAE9#,CE90,EE90..4D,5D198705-198905

sub75331-12070

main75331-12060iAE91..SE..EFI198811-198812

sub75331-12070

main75331-12060iAE91,95,CE90..SE198801-199106

sub75331-12070

main75331-12060iAE91..SE..EFI198909-199106

sub75331-12070

main75331-12070iAE9#,CE90,95,EE90..4D,5D198905-199106

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-12260iAE91,92..5D198705-198905

main75321-12310iAE95,CE95..4D198905-199106

main75321-12350iAE92..4D198905-199106

main75321-12360iAE91,92..5D198905-199106

75324ARETAINER, RADIATOR GRILLE NAME PLATE

main75324-12190iAE92,95,CE95..4D198905-199106

75350EMBLEM ASSY, FRONT FENDER

main75350-12010iAE91,95,CE90..SE198901-199106

main75350-12010iAE91..SE198909-199005

main75350-12010iAE91..SE..EFI199005-199106

main75350-12010iAE91..SE198801-198812

main75350-12010iAE91,95,CE90,95..MX199101-199106

main75350-12030iAE91..SE..EFIS198905-199106

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-12450iAE91..5D198705-199106

main75441-12470-03iAE92..5D198705-198905

sub75441-12470

main75441-12470-03iAE92..5D198705-198905

sub75441-12470

main75441-12470-03iAE91,92..5D..(G,GT,XS)198905-199106

sub75441-12470

main75441-12470-13iAE91,92..5D..(G,GT,XI)198705-198905

sub75441-12470

main75441-12470-13iAE91,92..5D..(G,GT,XS)198905-199106

sub75441-12470

main75441-12490iAE9#,CE90,95,EE90..4D198705-199106

sub75441-12460

main75441-12540iAE91..SE..EFI198801-199010

sub75441-12907

main75441-12540iAE91..SE..EFI199005-199010

sub75441-12907

main75441-12540iAE91..SE..EFI198811-198812

sub75441-12907

main75441-12540iAE91..SE198909-199005

sub75441-12907

main75441-12540-03iAE91..SE199010-199106

sub75441-12540

sub75441-12907

main75441-12540-08iAE91..SE199010-199106

sub75441-12540

sub75441-12907

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-12870iAE9#,CE90,95,EE90..4D198705-199106

main75442-1A100iAE91..SE..EFI198811-198812

main75442-1A100iAE91,95,CE90..SE198801-199010

main75442-1A100iAE91..SE198909-199005

main75442-1A100iAE91..SE..EFI199005-199010

main75442-1A100-03iAE91..SE199010-199106

sub75442-1A100

main75442-1A100-08iAE91..SE199010-199106

sub75442-1A100

75443PLATE, BACK DOOR NAME, NO.3

main75443-13100iEE96..CTD,DX198808-199108

sub75444-13030

main75443-13120iEE98..DX198808-199108

main75443-13150iCE96..STD198808-198908

main75443-13160iCE96..CTD,DX198808-199108

main75443-13180iEE96..XL198808-199108

sub75444-13050

main75443-13190iEE98..XL198808-199108

sub75443-13200

main75443-13200iEE98..(3FC,5F)..XL198808-199108

main75443-13210iCE96..XL198808-199108

main75443-13250iCE96..XL198908-199108

main75443-1A240iAE95..WG198802-199009

sub75443-13270

main75443-1A260iAE95..AV2198809-198810

sub75443-1A520

main75443-1A520iAE95..AV2198909-198910

sub75443-1A240

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-1A190iAE91..4D..CBR198705-199106

main75443-1A210iCE90198705-199106

main75443-1A250iAE91..SE198909-199010

main75443-1A250iAE91..SE..CBR198801-199106

main75443-1A250-03iAE91..SE199010

sub75443-1A250

main75443-1A440iCE90..SE198901-198905

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-12210iAE91,CE90,EE90..DX198705-199106

main75444-12250iAE91,95,CE90,95..SE..(DSL,EFI)198705-199106

main75444-12310iAE91,95,CE90,95,EE90..LX198705-199106

main75444-12320iAE91,EE90..LX198705-198905

main75444-12330iAE91,95,CE90,EE90..MX198705-198905

main75444-12340iAE91,95,CE90,95..SE..(DSL,EFI)198705-199106

main75444-12340iAE91..SE..EFI198805-199106

main75444-12350iAE91..L198705-198905

main75444-12360iAE91..G198705-198905

main75444-12370iAE91..XI198705-198905

main75444-12420-03iAE91..G198705-198905

sub75444-12420

main75444-12420-13iAE91..G198705-198905

sub75444-12420

main75444-12430-03iAE91..XI198705-198905

sub75444-12430

main75444-12430-13iAE91..XI198705-198905

sub75444-12430

main75444-12440-03iAE92..5D198705-198905

sub75444-12440

main75444-12440-03iAE92..5D198905-199106

sub75444-12440

main75444-12440-13iAE92..5D198905-199106

sub75444-12440

main75444-12440-13iAE92..5D198705-198905

sub75444-12440

main75444-12460iAE92..4D198705-199106

main75444-12510iAE91..SE..EFI198811-198812

sub75444-12340

main75444-12510iAE91,95,CE90..SE198801-198905

sub75444-12340

main75444-12510iAE91..SE198909-199010

sub75444-12340

main75444-12510-03iAE91..SE199010-199106

sub75444-12510

sub75444-12340

main75444-12510-08iAE91..SE199010-199106

sub75444-12510

sub75444-12340

main75444-12540iAE91..SE..EFIS198909-199010

sub75444-12620

main75444-12540-03iAE91..SE199010-199106

sub75444-12540

sub75444-12620

main75444-12540-08iAE91..SE199010-199106

sub75444-12540

sub75444-12620

main75444-12570iAE91,95,CE90,95,EE90..MX198905-199106

main75444-12570iAE91,95,CE90,EE90..MX198805-198905

main75444-12580iAE91..G198905-199106

main75444-12580iAE91..G198805-198905

main75444-12590-03iAE91..G198905-199106

sub75444-12590

main75444-12590-03iAE91..G198805-198905

sub75444-12590

main75444-12590-13iAE91..G198905-199106

sub75444-12590

main75444-12590-13iAE91..G198805-198905

sub75444-12590

main75444-12620iAE91..SE..EFIS198905-199106

main75444-12630iAE91..L198905-199106

main75444-12640iAE91..XS198905-199106

main75444-12670-03iAE91..XS198905-199106

sub75444-12670

main75444-12670-13iAE91..XS198905-199106

sub75444-12670

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-12110iAE95,CE95..4D198710-199106

main75445-12130iAE91..SE..EFI198805-198905

main75445-12140iAE91..SE..EFI198811-198905

main75445-12150iAE95..SE198901-198905

75485PLATE, BACK WINDOW NAME

main75485-12080iAE91,95..4D198705-198905

sub75485-20180

main75485-12100iAE92198705-198905

sub75485-22060

main75485-12120iAE92..4D198905-199008

main75485-12130iAE91,92..4D..(GT,SE)198905-199008

sub75485-22050

main75485-12140iAE91,95..(4D,5D)..EFI198905-199106

sub75485-12310

main75485-12160iAE91..EFIS198905-199106

main75485-12180iCE95198910-199106

main75485-12190iAE9#..4D..(4FC,5F)199008-199106

sub75485-20190

main75485-12200iAE92198905-199106

sub75485-22060

main75485-12220iAE92..4D199008-199106

sub75485-20470

9016450051

main90164-50051

12 parts on this diagram · 3 diagrams in section
