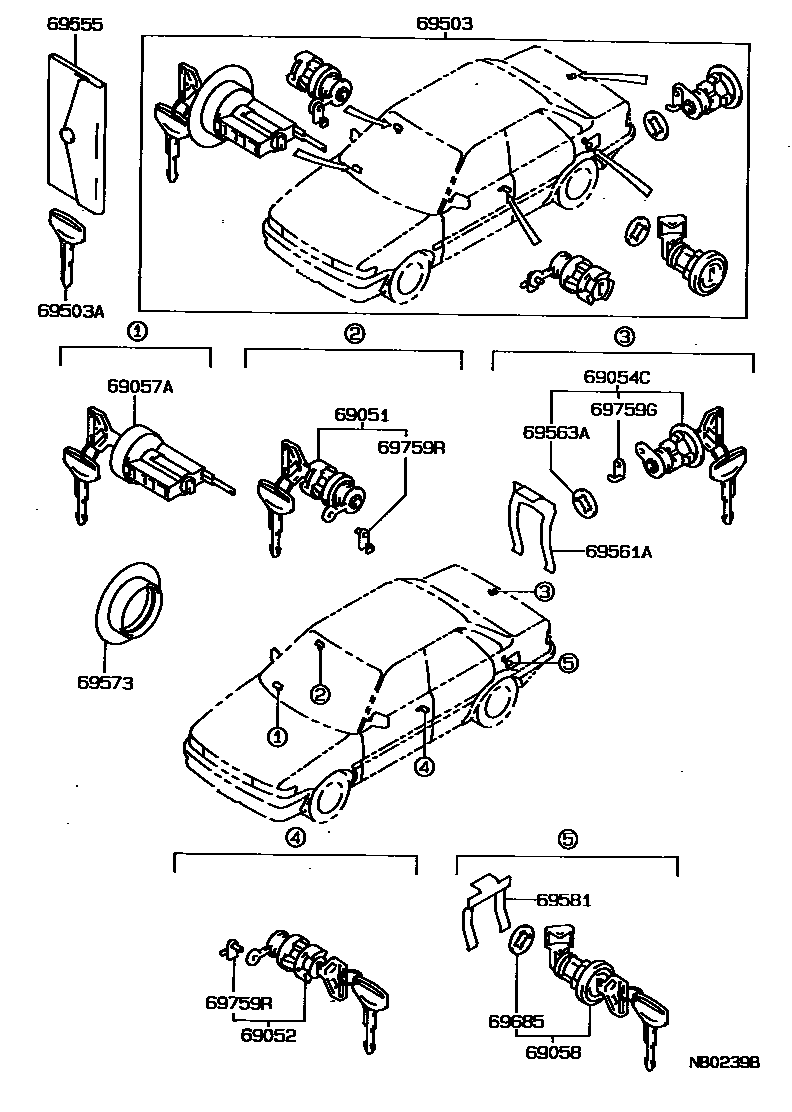

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12200iAE9#,CE90,95,EE90¥3,520198705-199106

sub69051-12220¥3,550

main69051-13090iCE96,EE96,98¥3,520198808-199108

sub69051-13110¥3,520

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12200iAE9#,CE90,95,EE90¥3,520198705-199106

sub69052-12220¥3,550

main69052-13090iCE96,EE96,98¥3,520198808-199108

sub69052-13110¥3,520

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12460iAE91,92..5D¥3,520198705-199106

sub69055-12470¥3,520

main69055-12540iAE95..WG¥3,740198802-199009

sub69055-12550¥3,740

main69055-13100iCE96,EE96,98¥3,740198808-199108

sub69055-13120¥3,740

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-12400iAE9#,CE90,95,EE90..4D¥3,520198705-199106

sub69055-12430¥3,520

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12080iAE9#,CE90,95,EE90¥7,100198705-199106

sub69057-12110¥7,100

main69057-13060iCE96,EE96,98¥8,500198808-198904

sub69057-13070¥7,100

main69057-13090iCE96,EE96,98¥7,200198904-199108

sub69057-13060¥8,500

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12120iAE91,95,CE90,EE90..AV1,DX¥3,520198705-199106

sub69058-10160¥3,990

main69058-13080iCE96,EE96,98..CTD,DX¥4,180198808-199108

sub69058-16040¥3,610

69503CYLINDER SET, LOCK

main69005-12720iAE91,CE90,EE90..DX¥18,300198705-199106

main69005-12730iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)¥15,400198705-199106

main69005-12800iAE91,92..5D¥15,400198705-199106

main69005-13120iCE96,EE96,98..CTD,DX¥18,300198808-199108

main69005-13130iCE96,EE96,98..XL¥15,300198808-198904

sub69005-13140¥15,900

main69005-13200iCE96,EE96,98..XL¥15,400198908-199108

main69005-13200iCE96,EE96,98..XL¥15,400198904-198908

main69005-1A150iAE95..WG¥15,900198908-199009

sub69005-1A180¥13,900

main69005-1A150iAE95..AV1¥15,900198802-198908

sub69005-1A180¥13,900

main69005-1A200iAE95..AV1¥16,800198802-198908

69503AKEY, BLANK

main90999-00112iCE96,EE96,98¥1,550198808-199108

main90999-00130iAE9#,CE90,95,EE90¥1,550198705-199106

sub90999-00153¥980

main90999-00131iAE9#,CE90,EE90¥1,550198705-198908

sub90999-00130¥1,550

main90999-00132iAE9#,CE90,95,EE90¥2,070198705-199106

sub90999-00174¥2,070

main90999-00133iAE9#,CE90,EE90¥2,060198705-198908

sub90999-00132¥2,070

main90999-00134iCE96,EE96,98..CTD,DX¥2,060198808-199108

sub90999-00146¥2,060

main90999-00147iCE96,EE96,98..XL¥1,550198904-198908

sub90999-00112¥1,550

main90999-00147iCE96,EE96,98..XL¥1,550198908-199108

sub90999-00112¥1,550

main90999-00148iCE96,EE96,98..XL¥1,550198904-199108

sub90999-00114¥1,550

69555COVER, KEY

main69555-20010iAE9#,CE9#,EE9#¥780198705-199108

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-12170iAE9#,CE90,95,EE90..4D¥200198705-199106

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12040iAE95..WG¥390198802-199009

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12050iAE91,92..5D¥190198708-199106

main69563-32010iAE9#..5D¥310198705-198708

main69563-32020iAE9#,CE90,95,EE90..4D¥260198811-199106

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE9#,CE9#,EE9#¥390198705-199108

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iCE96,EE96,98..CTD,DX¥160198808-199108

main69581-12020iAE91,CE90,EE90..DX¥240198705-199106

69685PAD, LOCK CYLINDER

main69513-12020iCE96,EE96,98¥340198808-198903

main69513-13010iCE96,EE96,98¥140198903-199108

main69513-32010iAE91,95,CE90,EE90..AV1,DX¥120198705-199106

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090iAE9#,CE90,EE90..4D¥280198705-198708

main69759-24090iAE9#,CE90,95,EE90..4D¥180198708-199106

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iAE9#,CE90,95,EE90¥320198705-199106

main69759-30050iAE9#,CE90,95,EE90¥350198705-199106

17 parts on this diagram · 3 diagrams in section
